Запчасти Case IH 1640 (4-64) - ALTERNATOR MOUNTING (06) - ELECTRICAL

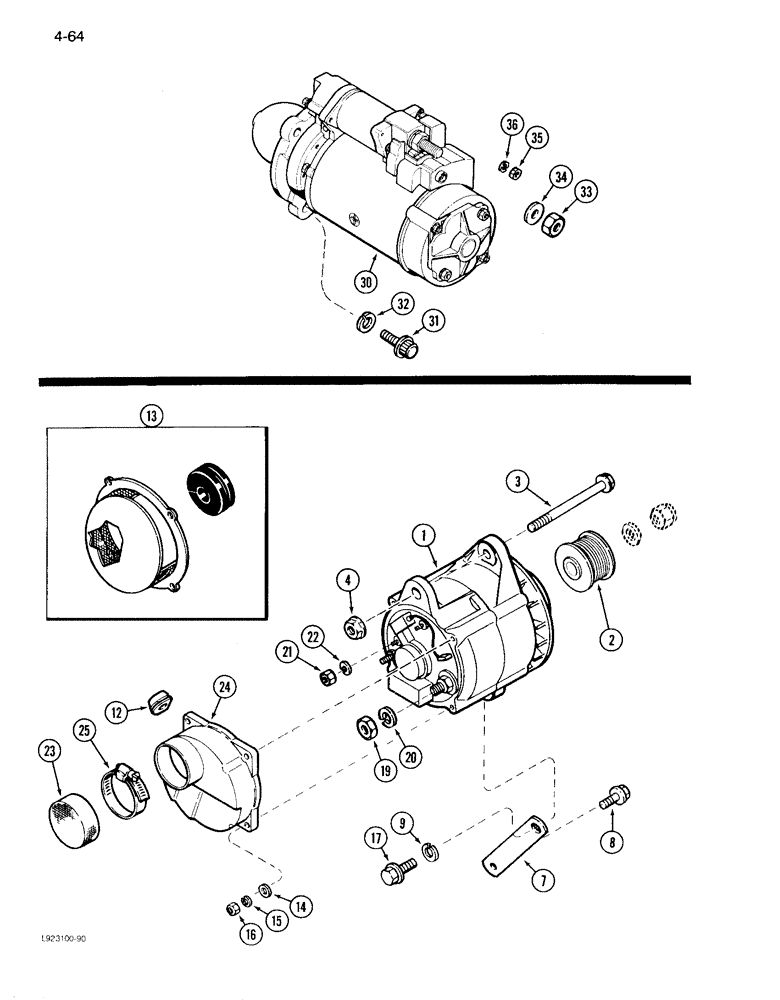

Схема запчастей Case IH 1640 - (4-64) - ALTERNATOR MOUNTING (06) - ELECTRICAL
24
35
22
19
25
1
7
9
17
21
12
15
36
16
2
14
20
34
30
3
8
13
23
32
31
33
4

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-68)

1шт.

2

A189616

PULLEY

- alternator drive

1шт.

3

J903105

FLANGE BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

BOLT - hex flange, 12 mm - 1.75 x 150 mm

1шт.

4

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

- hex flange, 12 mm - 1.75, class 10

1шт.

7

J903104

PLATE

BRACE - alternator mounting

1шт.

8

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

1шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

12

1964826C1

GROMMET

GR0MMET - condensate hose

1шт.

13

1970521C2

GUARD

SHIELD - alternator dust cover (If equipped)

1шт.

14

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 1/16 inch

4шт.

15

892-1105

LOCK WASHER,M5

WASHER - lock, 5 mm

4шт.

16

825-1105

NUT,M5, Cl 8

- hex, 5 mm, Grade 8

4шт.

17

121-426

BOLT,Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

1шт.

19

425-147

JAM NUT,Jam, 7/16"-14, G5

- hex, jam, 7/16 inch NC

1шт.

20

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

21

825-1104

NUT,M4, Cl 8

- hex, 4 mm - .7

1шт.

22

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

1шт.

23

1979627C1

COVER

SCREEN - alternator cover

1шт.

24

1338890C1

COVER

- end cover, alternator

1шт.

25

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP - retaining

1шт.

30

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-70), mounting

1шт.

31

31242R1

12 PT SCREW,M12 x 35mm, Cl 12.9

BOLT - 12 point flange head, 12 x 35 mm, starter mounting

3шт.

32

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Starter Mounting M12

3шт.

33

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Starter mounting 1/2"-13, G5

1шт.

34

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Starter mounting 1/2", SAE

1шт.

35

225-14210

NUT,#10-32

Starter mounting #10-32

1шт.

36

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Starter mounting #10

1шт.

Выбрано товаров: 27
