Запчасти Case IH 1640 (4-62) - BATTERY & BATTERY CABLES, W/TAPERED CLAMP POSTS, P.I.N. JJC0097001 & AFTER (06) - ELECTRICAL

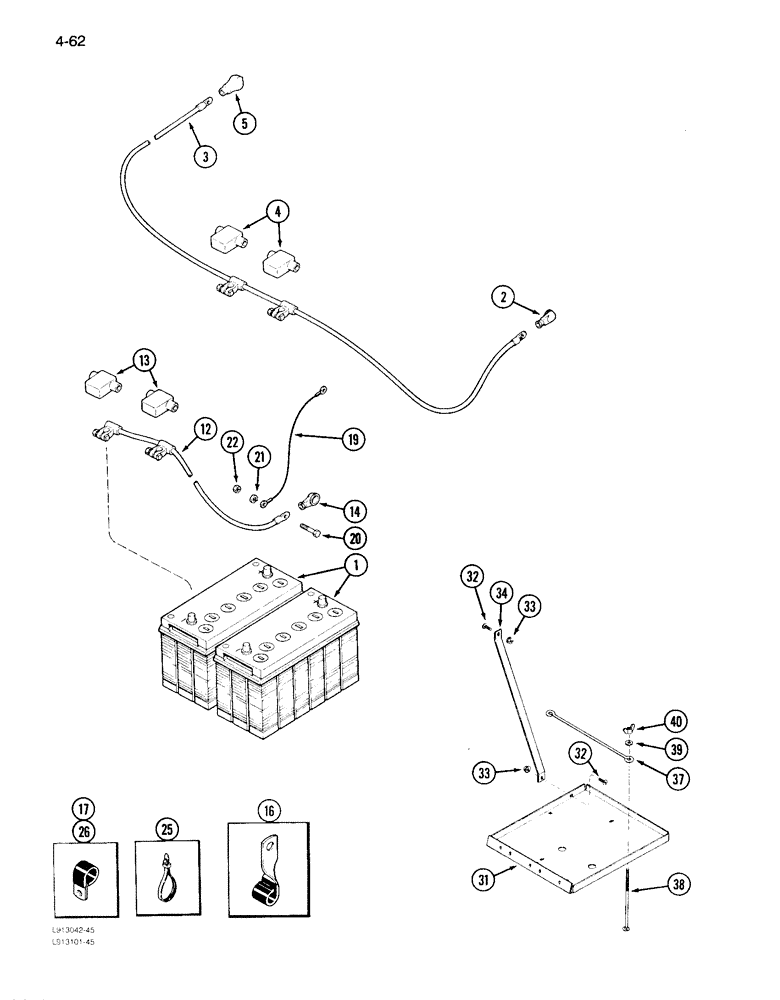

Схема запчастей Case IH 1640 - (4-62) - BATTERY & BATTERY CABLES, W/TAPERED CLAMP POSTS, P.I.N. JJC0097001 & AFTER (06) - ELECTRICAL
4
16
40
19
20
37
14
33
13
32
38
12
26
25
39
5
32
34
17
21
3
33
1
2
22
31

Артикул

Название

Примечание

Количество

1

BMF31G

BATTERY, DRY

12V, Tractor

2шт.

2

S115407

BOOT

- rubber, positive cable at starter solenoid

1шт.

3

1964783C3

CABLE

ASSEMBLY - battery, positive, Includes: Ref. 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

BOOT - battery cable

2шт.

5

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

12

92023C3

CABLE

ASSEMBLY - battery, ground, Includes: Ref. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

BOOT - battery cable

2шт.

14

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

16

363660R1

CLIP

- battery positive cable

1шт.

17

299414C1

CLAMP,7/8", Insul, 1/4" Bolt

CLIP - battery positive cable

1шт.

19

158477C91

CABLE

ASSEMBLY - engine to combine ground

2шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

25

702093C1

CABLE TIE

STRAP - cable retaining

2шт.

26

R14668

CLAMP

- harness retaining

1шт.

31

194267C6

TRAY

- battery

1шт.

32

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch, battery tray

4шт.

33

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC, battery tray

4шт.

34

194266C1

SUPPORT

- battery tray

1шт.

37

188116C1

CLAMP

- battery hold down, tray

1шт.

38

411-5152

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9 1/2", Gr 2

BOLT - round head square neck, 5/16 NC x 9-1/2 inch, battery tray

2шт.

39

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Battery tray

2шт.

40

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC, battery tray

2шт.

Выбрано товаров: 24
