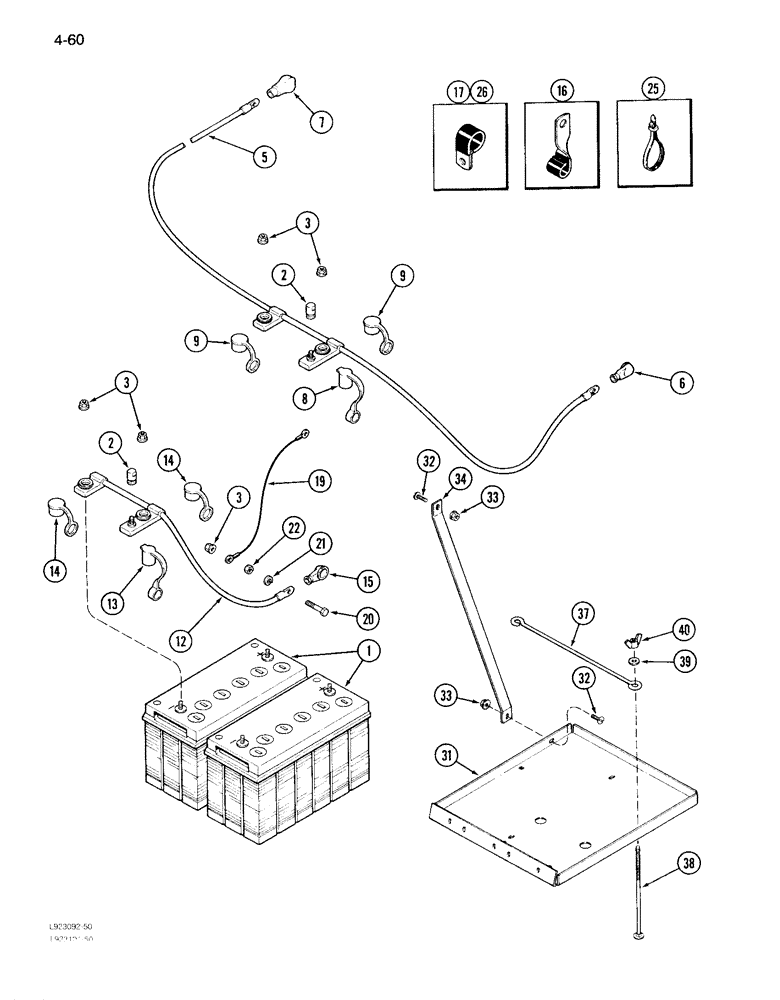

Запчасти Case IH 1640 (4-60) - BATTERY & BATTERY CABLES, W/STUD POSTS, PRIOR TO P.I.N. JJC0097001 (06) - ELECTRICAL

1

BMF31GS

DRY BATTERY

BATTERY - dry charged, 12 volt

2шт.

2

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

- jump start

1шт.

3

476074C1

NUT

- pretailing torque lock hex, 3/8 inch NC

5шт.

5

1964782C3

CABLE

- battery, positive, Includes: Ref. 6 - 9

1шт.

6

364910R1

BOOT

- battery cable

1шт.

7

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

8

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

9

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

12

245226C2

CABLE PULLING GRIP

CABLE - battery, ground, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

14

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

15

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

16

363660R1

CLIP

- battery positive cable

1шт.

17

299414C1

CLAMP,7/8", Insul, 1/4" Bolt

CLIP - battery positive cable

1шт.

19

158477C91

CABLE

ASSEMBLY - engine to combine ground

1шт.

20

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

25

702093C1

CABLE TIE

STRAP - cable retaining

2шт.

26

R14668

CLAMP

- harness retaining

1шт.

31

194267C6

TRAY

- battery (Replaces 194267C5)

1шт.

32

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch, battery tray

4шт.

33

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC, battery tray

4шт.

34

194266C1

SUPPORT

- battery tray

1шт.

37

188116C1

CLAMP

- battery hold down, tray

1шт.

38

411-5152

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9 1/2", Gr 2

BOLT - round head square neck, 5/16 NC x 9-1/2 inch, battery tray

2шт.

39

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Battery tray

2шт.

40

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC, battery tray

2шт.
