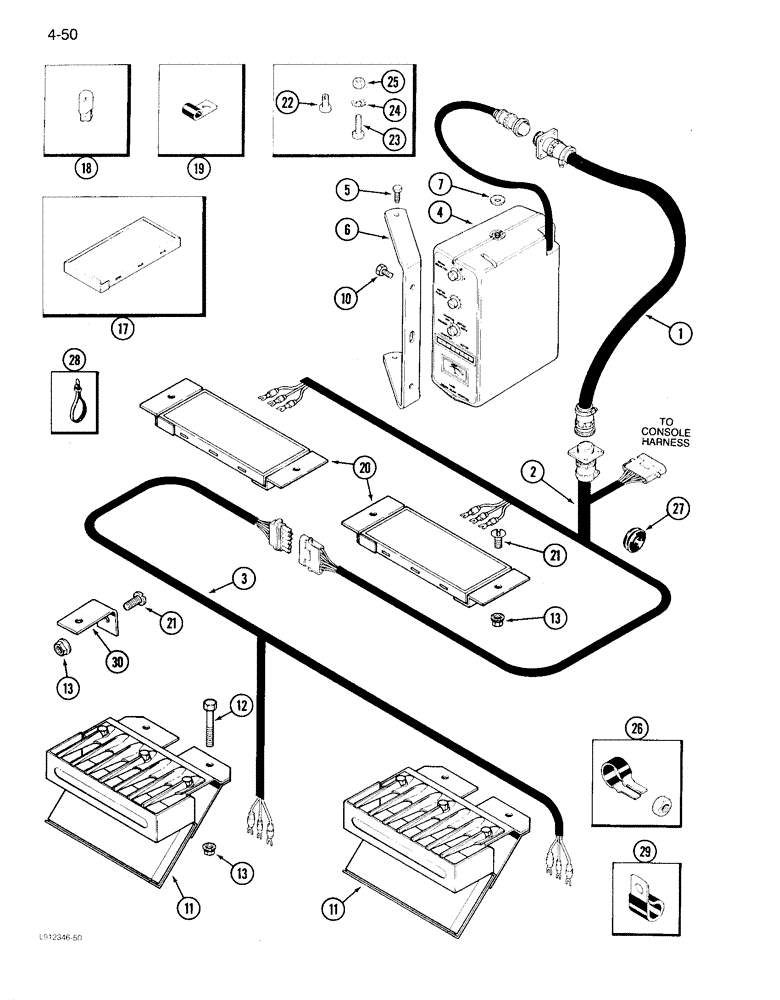

Запчасти Case IH 1640 (4-50) - GRAIN SCAN MONITOR (06) - ELECTRICAL

1

245237C1

HARNESS

ASSEMBLY - cab, grain scan

1шт.

2

1994838C1

HARNESS

ASSEMBLY - main sensor (P.I.N. JJC0097190 and after)

1шт.

2

245239C1

HARNESS

ASSEMBLY - main sensor (Prior to P.I.N. JJC0097190)

1шт.

3

245930C2

HARNESS

ASSEMBLY - chaffer sensor, With Chaffer Extension

1шт.

1935074C1

REMAN-ELECT MONITOR

MONITOR - grain scan, remanufactured (North America only)

1шт.

1935073C1

CORE-MONITOR

RETURN NUMBER - use this part number to return monitor for credit

1шт.

4

245360C2

TESTER

MONITOR - grain scan

1шт.

Ref 4: THE CONTROL KNOBS FOR THIS GRAIN LOSS MONITOR ARE 200720002.

1шт.

5

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

6

1280160C2

SUPPORT

BRACKET - monitor mounting

1шт.

7

179454C1

RUBBER WASHER

- rubber

2шт.

10

313-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

11

245361C2

TRANSMITTER

BLOCK - chaffer sensor

2шт.

12

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

13

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

10шт.

17

245884C1

TRANSMITTER

BLOCK - grain sensor

1шт.

18

28628R1

BULB,C2F, #73, 14V

LAMP - trade No. 73, 14 volt

1шт.

19

A38799

CLAMP

- retaining

2шт.

20

245362C1

TRANSMITTER

BLOCK - rotor sensor

2шт.

21

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

6шт.

22

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

4шт.

23

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

- machine, pan head cross, No. 6-32 x 5/8 inch

4шт.

24

493-11014

LOCK WASHER,Ext-Int Tooth, #6

WASHER - internal-external lock, No. 6

4шт.

25

225-14106

NUT,#6-32

4шт.

26

245738C2

CLAMP

1шт.

27

195806C1

GROMMET

- left side sheet

1шт.

28

702093C1

CABLE TIE

STRAP - tie

1шт.

29

49845

CLAMP

CLIP - retaining

10шт.

30

1301242C1

BRACKET

- retaining

1шт.
