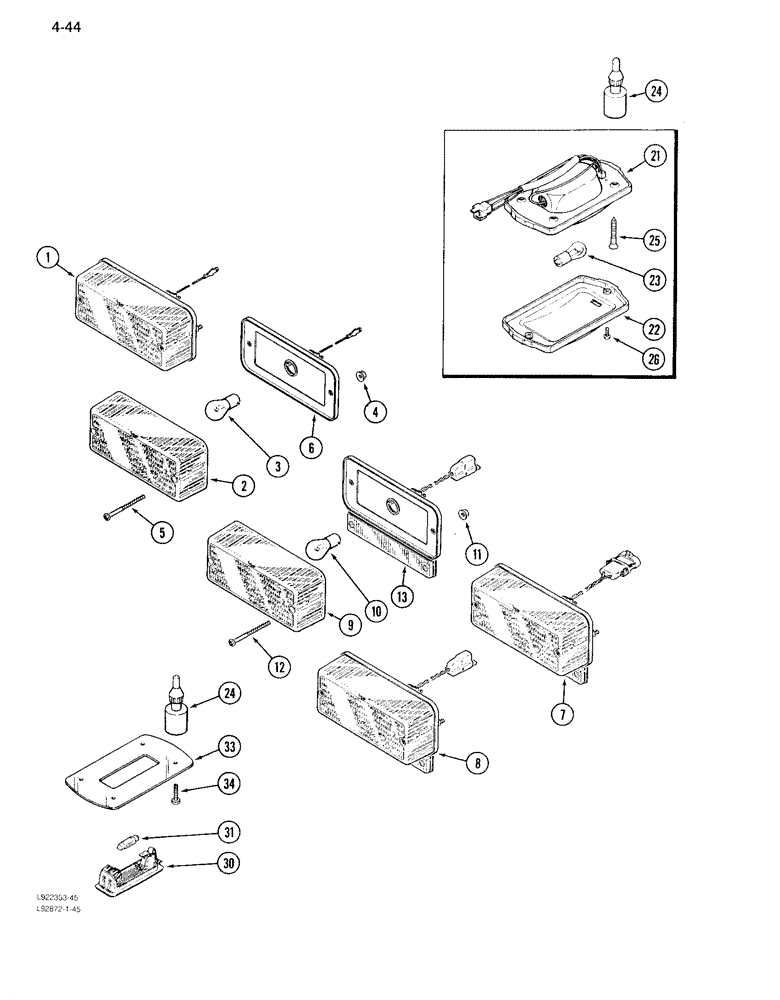

Запчасти Case IH 1640 (4-44) - WARNING LIGHT, FRONT AND REAR (06) - ELECTRICAL

1

130882C91

LAMP

LIGHT ASSEMBLY - warning, Includes: Ref. 1 - 6

4шт.

2

130883C1

LENS

Lens, Amber

1шт.

3

A41264

BULB,#1156, 12V

#1156, 12V

1шт.

4

174097C1

FLANGE NUT,Flg, USR, #10-24

Nut, 10-24

2шт.

5

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

Screw, 10-24

2шт.

6

92260C1

LAMP,12V, 27W, Red

ASSEMBLY - stop and tail, Includes: Ref. 8 - 11

2шт.

Used with 1983342C2 harness, See Figure 4-32

1шт.

7

216044C92

LAMP

ASSEMBLY - stop and tail, Includes: Ref. 8 - 11

2шт.

Used with 1983342C1 harness, See Figure 4-32

1шт.

8

216044C92

LAMP

- red, stop and tail lamp

1шт.

9

216045C1

LENS

Lens, Red

1шт.

10

T34857

BULB,C6, #1157, 12.8V

Bulb, 1157

1шт.

11

174097C1

FLANGE NUT,Flg, USR, #10-24

Nut

2шт.

12

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

2шт.

13

NSS

NOT SOLD SEPARAT

order 7

1шт.

21

245659C91

LAMP

LIGHT ASSEMBLY - dome (If equipped), Includes: Ref. 22, 23

1шт.

22

245679C1

LENS

- dome light

1шт.

23

142457

BULB,C6, #1142, 12.8V

LAMP - type C-6, No. 1142, dome light

1шт.

117995C1

PACKAGE

FASTENER KIT - dome light (Package of 5) (If equipped), Includes: Ref. 24

1шт.

24

NSS

NOT SOLD SEPARAT

FASTENER - dome light (Order 117995C1)

4шт.

25

27071R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 1/2"

SCREW - tapping, No. 8-18 x 1-1/2 inch (If equipped), dome light

4шт.

26

NSS

NOT SOLD SEPARAT

SCREW - lens mounting (Order 245659C91) (If equipped), dome light

2шт.

30

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, Includes: Ref. 31

1шт.

31

3050958R1

BULB,K, 12V, 10W

- light, dome K, 12V, 10W

1шт.

33

1979628C1

LARGE PLATE

PLATE - dome light

1шт.

34

260-53424

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

SCREW - No.8-18 x 1/2 inch, dome lamp

4шт.
