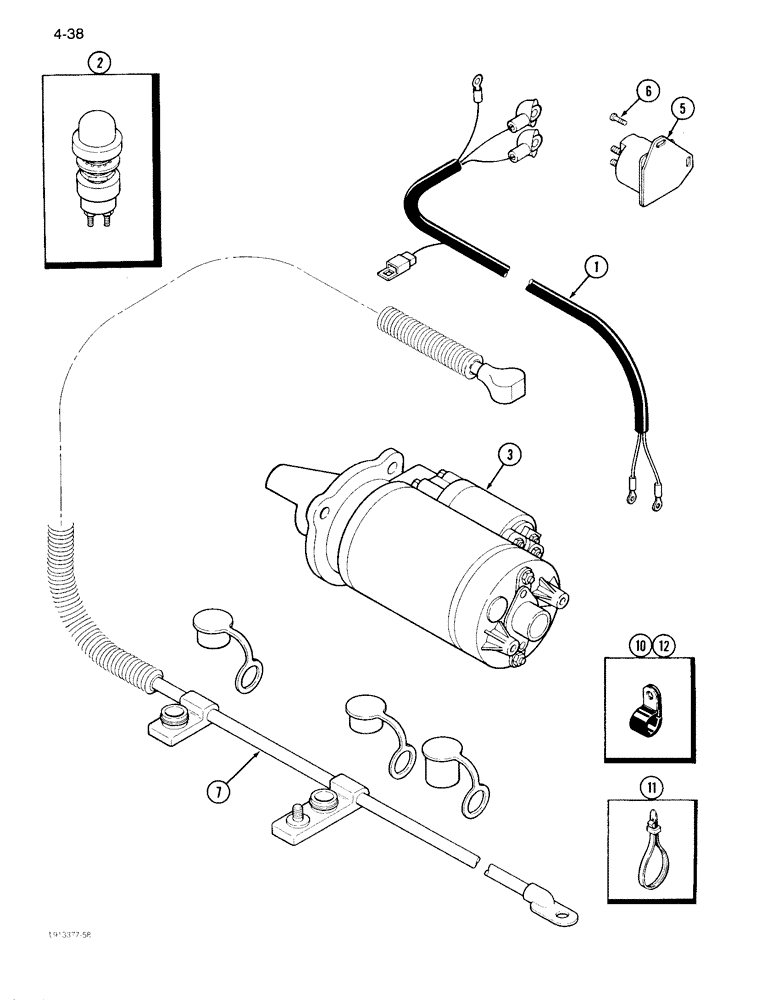

Запчасти Case IH 1640 (4-38) - FEEDER REVERSER HARNESS (06) - ELECTRICAL

1

245957C1

HARNESS

ASSEMBLY - feeder reverser

1шт.

2

453453C1

SWITCH

- feeder reverser, push button

1шт.

3

REF

INSTRUCTION

MOTOR - feeder reverser (See Figure 4-66)

1шт.

5

A39079

SOLENOID

SWITCH - magnetic relay

1шт.

6

261-1478

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW - self-tapping, pan head Phillips, 1/4 NC x 1/2 inch

2шт.

7

245955C2

CABLE

- battery positive

1шт.

10

R14668

CLAMP

CLIP - rubber cushioned

10шт.

11

702093C1

CABLE TIE

STRAP - nylon retaining

2шт.

12

R14668

CLAMP

- cable retaining

1шт.
