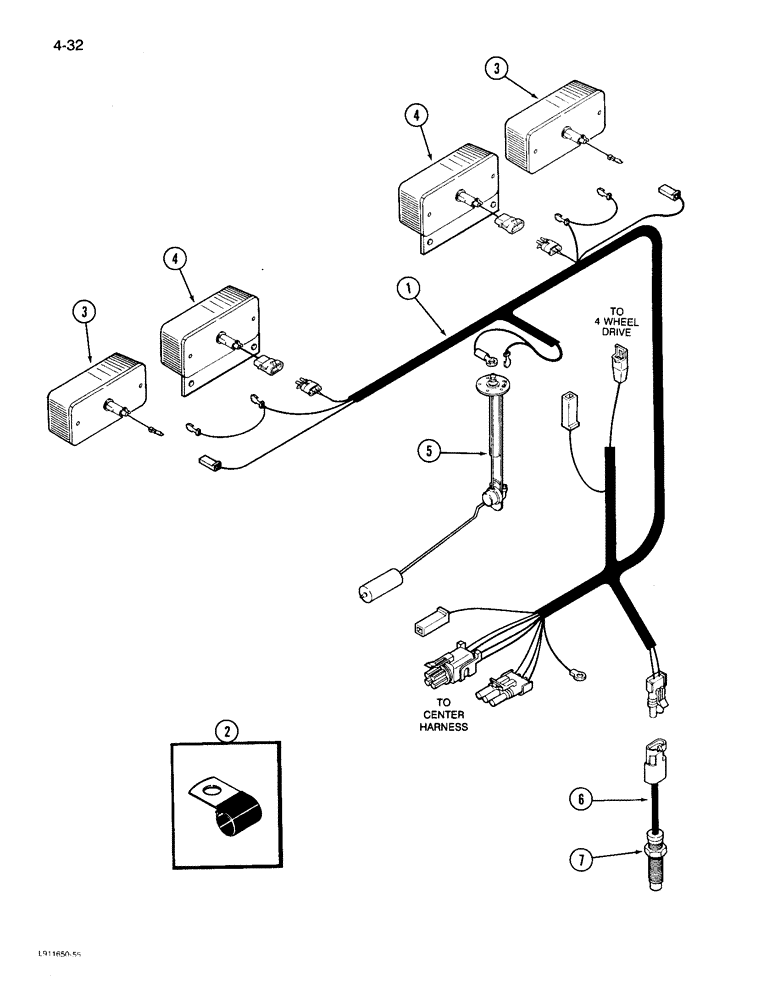

Запчасти Case IH 1640 (4-32) - REAR LIGHTS AND FUEL SENDER HARNESS, PRIOR TO P.I.N. JJC0097190 (06) - ELECTRICAL

1

1983342C2

HARNESS

ASSEMBLY - rear lights and fuel sender

1шт.

See tail lamp, Figure 4-44.

1шт.

1

1983342C1

HARNESS

ASSEMBLY - rear lights and fuel sender

1шт.

See tail lamp, Figure 4-44.

1шт.

2

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

- insulated retaining

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness retaining

6шт.

3

REF

INSTRUCTION

LAMP ASSEMBLY - warning rear (See Figure 4-44)

2шт.

4

REF

INSTRUCTION

LAMP ASSEMBLY - tail (See Figure 4-44)

2шт.

5

REF

INSTRUCTION

GAUGE - fuel level sending unit (See Figure 3-16)

1шт.

6

1252494C2

TRANSMITTER

- transducer, engine RPM

1шт.

7

84116C1

NUT

- lock, transmitter

2шт.
