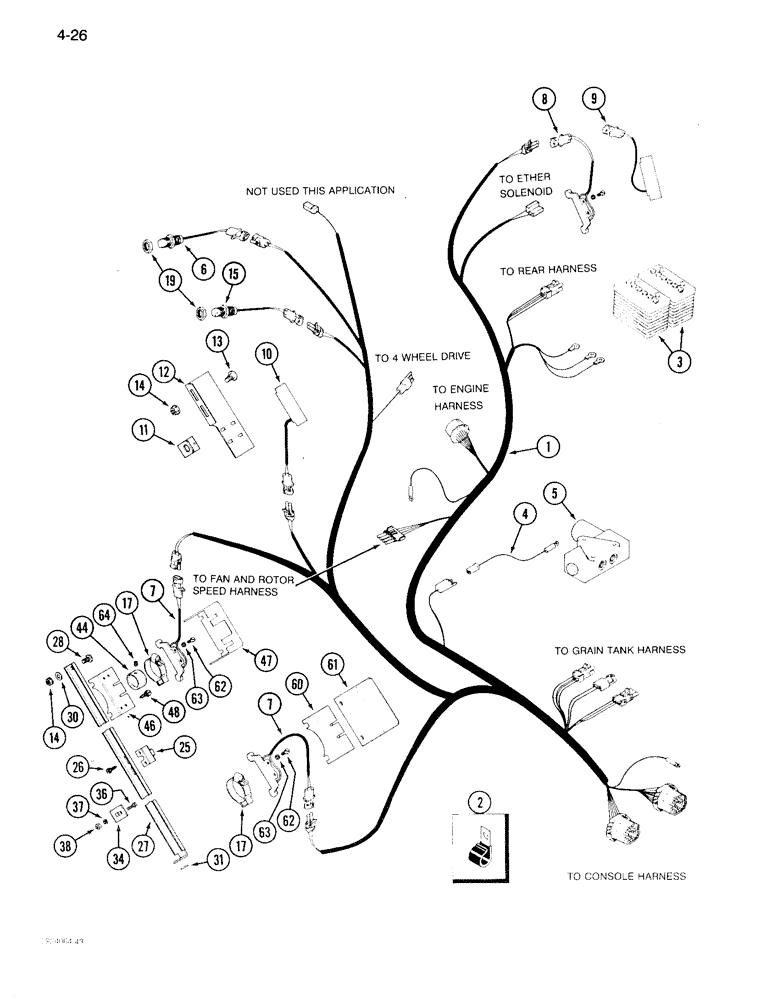

Запчасти Case IH 1640 (4-26) - CENTER HARNESS (06) - ELECTRICAL

1

1994834C1

HARNESS

- center (P.I.N. JJC0097190 and after)

1шт.

2

84183C1

CLAMP

CLIP - center harness

5шт.

2

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

- insulated retaining

6шт.

2

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - retaining

2шт.

3

REF

INSTRUCTION

BATTERY - 12 volt

2шт.

4

187736C1

CABLE

- separator clutch valve (control concepts)

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch (control concepts) (See Figure 8-108)

1шт.

6

245193C2

SENSOR

TRANSMITTER - transducer(For straw spreader)

1шт.

7

245365C1

TRANSMITTER

- monitor control (For rotary air screen, tailings auger)

2шт.

8

245365C1

TRANSMITTER

- monitor control (For beater)(Without straw chopper)

1шт.

9

245410C1

TRANSMITTER

- monitor control (For straw chopper)

1шт.

10

245364C1

SWITCH

- monitor control (For shoe)

1шт.

11

187996C1

MAGNET

ASSEMBLY - sensor (For shoe)

1шт.

12

187998C2

ANGLE

SUPPORT - shoe transmitter

1шт.

13

111-229

CARRIAGE BOLT,Short NK, 5/16"-18 x 1/2", G2

BOLT - round head square neck, 5/16 NC x 1/2 inch, Grade 2

2шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

15

1252494C2

TRANSMITTER

- transducer, engine RPM

1шт.

17

178800C1

CLAMP

ASSEMBLY - sensor (For tailings auger and beater)

2шт.

19

84116C1

NUT

- transmitter retaining lock

2шт.

25

196987C1

MAGNET

ASSEMBLY - sensor (for rotary air screen)

1шт.

26

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

SCREW - self-tapping, pan head slotted, No. 8-18 x 1/2 inch

2шт.

27

1329865C1

CHANNEL

- rotary air screen sensor mounting

1шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

3шт.

31

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

34

1301560C1

SUPPORT

ANGLE - rotary air screen sensor adjustment

1шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

37

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

38

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

44

178801C1

COLLAR

- tailing elevator shaft

1шт.

46

183869C3

SUPPORT

BRACKET - tailings sensor

1шт.

47

181208C2

COVER

- tailings sensor bracket

1шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - self-tapping, 1/4 NC x 1/2 inch

3шт.

60

187629C1

SUPPORT

- beater shaft sensor (Without straw chopper)

1шт.

61

187630C1

SUPPORT

COVER - beater shaft sensor (Without straw chopper)

1шт.

62

470-1086

SCREW,Pan HD, #8 - 32 x 3/8"

- machine, slotted, No. 8 NC x 3/8 inch

4шт.

63

492-11008

LOCK WASHER,#8

Washer, Lock, #8

4шт.

64

483-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, 1/4 NF x 3/8 inch

1шт.
