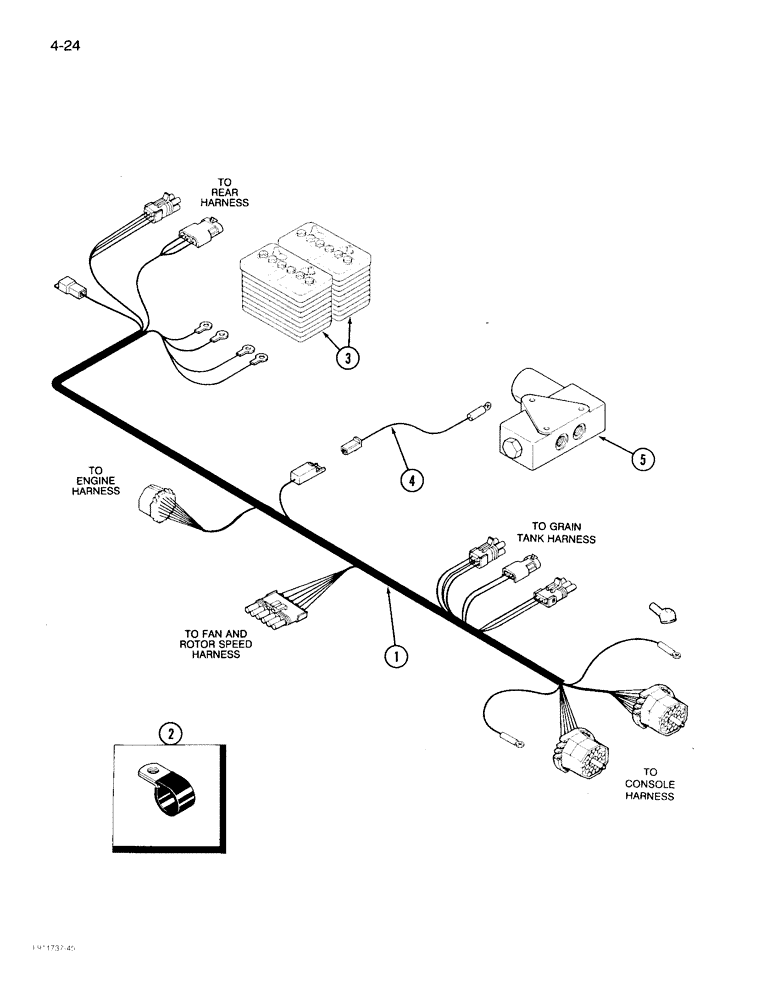

Запчасти Case IH 1640 (4-24) - CENTER HARNESS (06) - ELECTRICAL

1

1983382C1

HARNESS

- center (P.I.N. JJC0035145 through JJC0097190)

1шт.

1

245229C3

HARNESS

- center (Prior to P.I.N. JJC0035145)

1шт.

2

84183C1

CLAMP

CLIP - center harness

5шт.

2

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

- insulated retaining

6шт.

2

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - retaining

2шт.

3

REF

INSTRUCTION

BATTERY - 12 volt (See Figure 4-60, 4-62)

2шт.

4

187736C1

CABLE

- separator clutch valve (control concepts)

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch (control concepts) (See Figure 8-108)

1шт.
