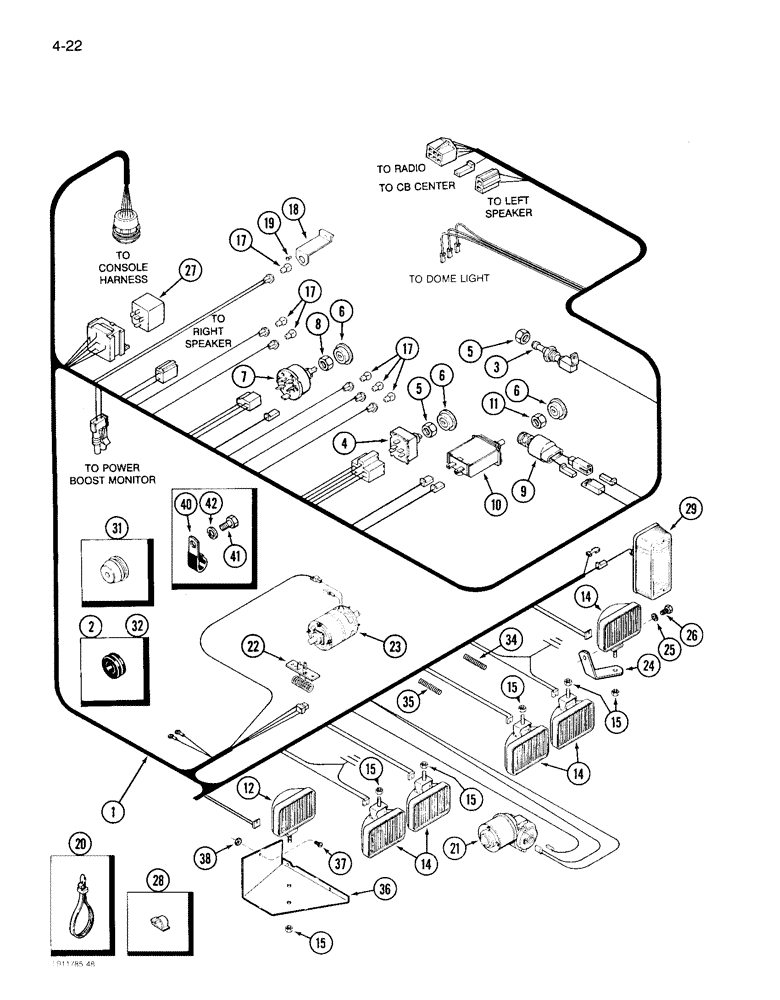

Запчасти Case IH 1640 (4-22) - CAB ROOF HARNESS (06) - ELECTRICAL

1

1994715C1

HARNESS

- cab roof (P.I.N. JJC0097190 and after)

1шт.

1

84311C6

HARNESS

- cab roof (Prior to P.I.N. JJC0097190)

1шт.

2

3063674R1

GROMMET

- blower harness

1шт.

3

245175C1

SWITCH

- door dome light control

1шт.

4

168822C2

SWITCH

- blower

1шт.

5

109311H

JAM NUT

- hex jam

1шт.

6

111282C1

KNOB

- blower, wiper and thermostat switch

3шт.

7

245734C1

SWITCH

- wiper control

1шт.

8

109311H

JAM NUT

- hex jam

1шт.

9

111267C4

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

10

109268C2

SWITCH

- cab thermostat

1шт.

11

109311H

JAM NUT

- hex jam

2шт.

12

91666C91

INTERIOR LIGHT

LAMP ASSEMBLY - headlight, 40 x 7 Halogen flood (Prior to P.I.N. JJC0097190)

1шт.

12

245555C1

LAMP

ASSEMBLY - headlight, 40 x 7 Halogen fog (P.I.N. JJC0097190 and after)

1шт.

14

245897C91

LAMP, WORK

LIGHT ASSEMBLY - work light and outer flood light

5шт.

15

325-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC

6шт.

17

A14553

BULB

LAMP - cab instrument panel backlight and warning light, Type C-2V, No. 57

6шт.

18

1281975C1

BRACKET

SUPPORT - instrument panel bulb mounting

5шт.

19

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

SCREW - pan head, No. 8-18 x 5/8 inch

5шт.

20

111619C1

STRAP

- cable retaining

6шт.

21

REF

INSTRUCTION

WIPER ASSEMBLY - (See Page 4-75)

1шт.

22

1255876C1

RESISTOR

ASSEMBLY - blower

1шт.

23

142990C2

MOTOR, ELECTRIC

MOTOR - blower, 12 volt, DC, PM

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1640 S/N JJC0034705 & Aft., Reman For New P/N's 142990C2 & 190333A1,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

24

1281876C1

BRACKET

ANGLE - outer flood light mounting bracket

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

26

326-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 8

2шт.

27

1-7877

RELAY

- air conditioning

1шт.

28

169850C1

CLIP

- harness

2шт.

29

REF

INSTRUCTION

LAMP ASSEMBLY - warning (See Figure 4-44)

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- light harness, right

1шт.

32

1321769C1

GROMMET

- light harness, left

1шт.

34

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 7 inch long (Order R43250 cut to length)

2шт.

35

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 9 inch (Order R43250 cut to length)

2шт.

R43250

CONDUIT

- harness, 50 feet

1шт.

36

1283449C3

BRACKET

- light shield and mounting

1шт.

37

436746

SCREW

- pan head, No. 10 NF x 1/4 inch

1шт.

38

225-13110

NUT,#10-24

1шт.

40

371036R1

CLIP

- harness

1шт.

41

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

42

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
