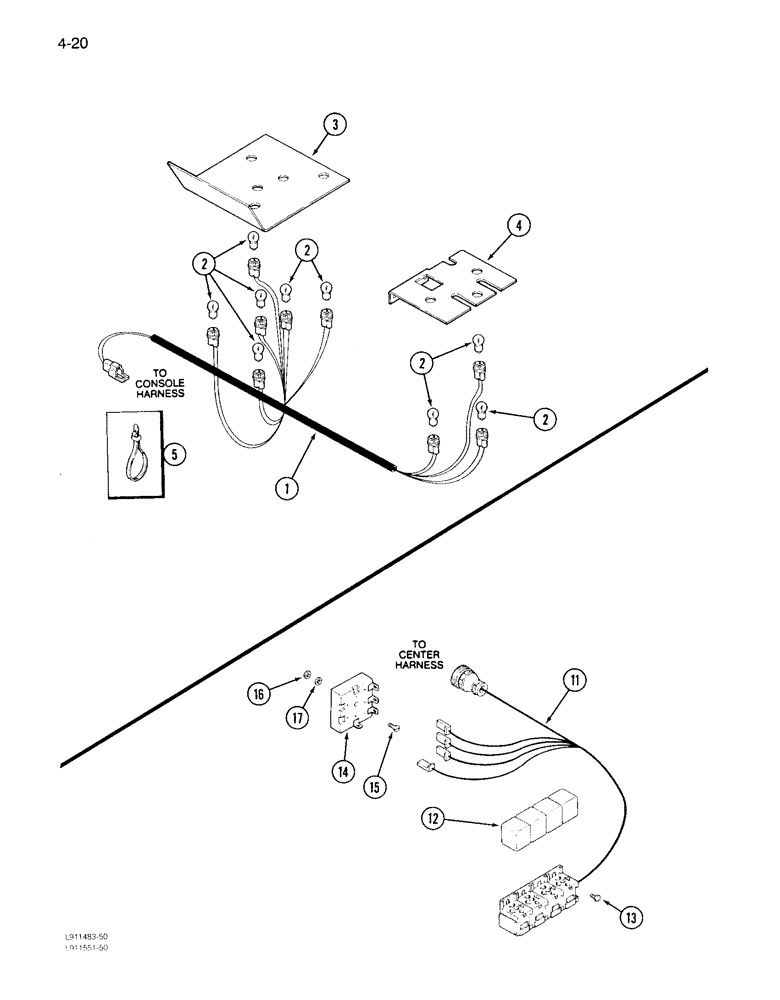

Запчасти Case IH 1640 (4-20) - CONSOLE BACK LIGHTING HARNESS (06) - ELECTRICAL

1

245231C1

HARNESS

ASSEMBLY - console backlighting, Serial Range: -JJC0035300

1шт.

2

A14553

BULB

- lamp, No. 57, Serial Range: -JJC0035300

9шт.

3

REF

INSTRUCTION

SUPPORT - backlight (See Figure 9G-2), Serial Range: -JJC0035300

1шт.

4

REF

INSTRUCTION

SUPPORT - backlight (See Figure 9G-2), Serial Range: -JJC0035300

1шт.

5

702093C1

CABLE TIE

STRAP - cable retaining, Serial Range: -JJC0035300

1шт.

11

1983543C2

CONTROL

LER - feeder inhibitor, P.I.N JJC0035300 thru JJC0097190, Serial Range: JJC0035300-JJC0097190

1шт.

12

146461C1

RELAY

- feeder inhibitor, P.I.N. JJC 0035300 thru JJC0097190, Serial Range: JJC0035300-JJC0097190

4шт.

13

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch, P.I.N. JJC0035300 thru JJC0097190, Serial Range: JJC0035300-JJC0097190

2шт.

14

1964920C2

IGNITION SWITCH

SWITCH - timer delay, P.I.N. JJC0035300 thru JJC0097190, Serial Range: JJC0035300-JJC0097190

1шт.

15

473-12520

SCREW,FLAT, 1/4" - 20 x 1-1/4"

- slotted head, flat, 1/4 NC x 1-1/4 inch, P.I.N. JJC0035300 thru JJC0097190, Serial Range: JJC0035300-JJC0097190

1шт.

16

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, P.I.N. JJC0035300 thru JJC0097190, Serial Range: JJC0035300-JJC0097190

1шт.

17

495-31022

WASHER,#10

P.I.N. JJC0035300 thru JJC0097190 #10, Serial Range: JJC0035300-JJC0097190

1шт.
