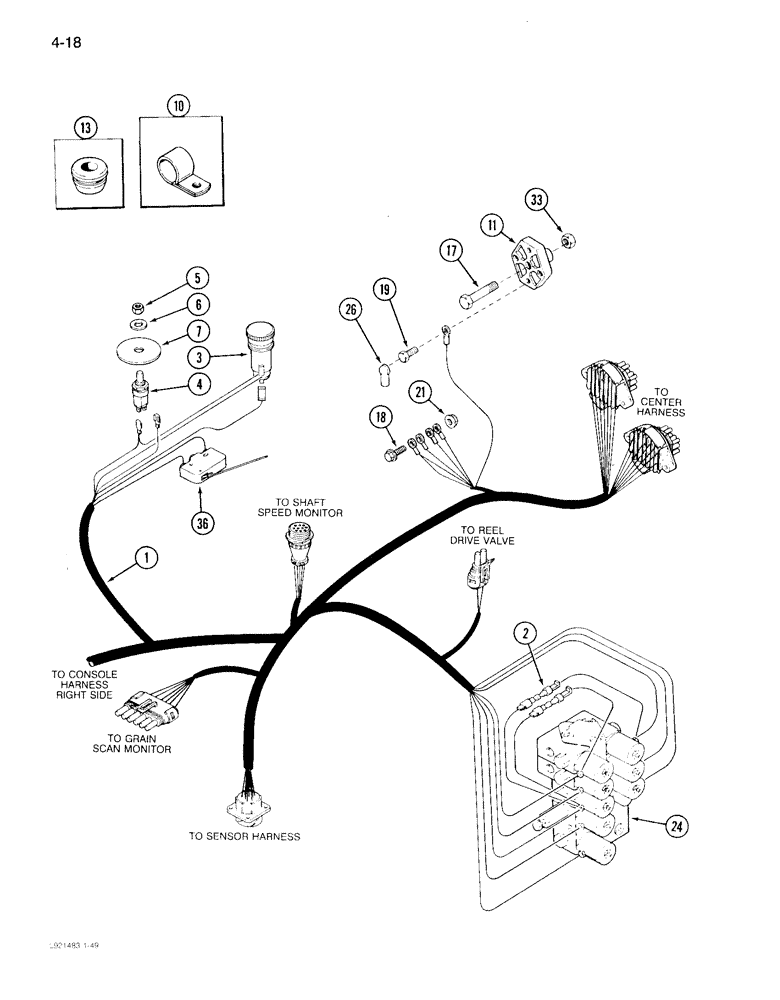

Запчасти Case IH 1640 (4-18) - CONSOLE HARNESS, LEFT SIDE, P.I.N. JJC0097190 AND AFTER (06) - ELECTRICAL

1

1994820C1

HARNESS

- console

1шт.

2

548239R2

RECTIFIER

DIODE ASSEMBLY - console harness

2шт.

3

245576C1

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigarette, Includes: Ref. 3

1шт.

3

378781R1

LIGHTER, CIGARETTE

LIGHTER - pop up element, cigarette

1шт.

4

1983341C1

SWITCH

ASSEMBLY - parking brake warning light

1шт.

5

68107H

LOCK NUT

- light switch

1шт.

6

166817C1

WASHER

- light switch

1шт.

7

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - console harness, front

1шт.

11

468647C1

BLOCK ASSY.

BLOCK - junction

1шт.

187-583

SELF-TAP SCREW,1/4" - 20 x 1/2"

BOLT - pan head tapping, 1/4 x 1/2 inch

1шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, console harness

1шт.

17

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

18

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- flanged hex lock, 1/4 NC x 3/4 inch

2шт.

19

25222R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch

2шт.

21

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

4шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-60 and 62)

1шт.

26

399470R1

BOOT

- cable

1шт.

33

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

1шт.

36

1310827C1

SWITCH

ASSEMBLY - third gear lockout

1шт.
