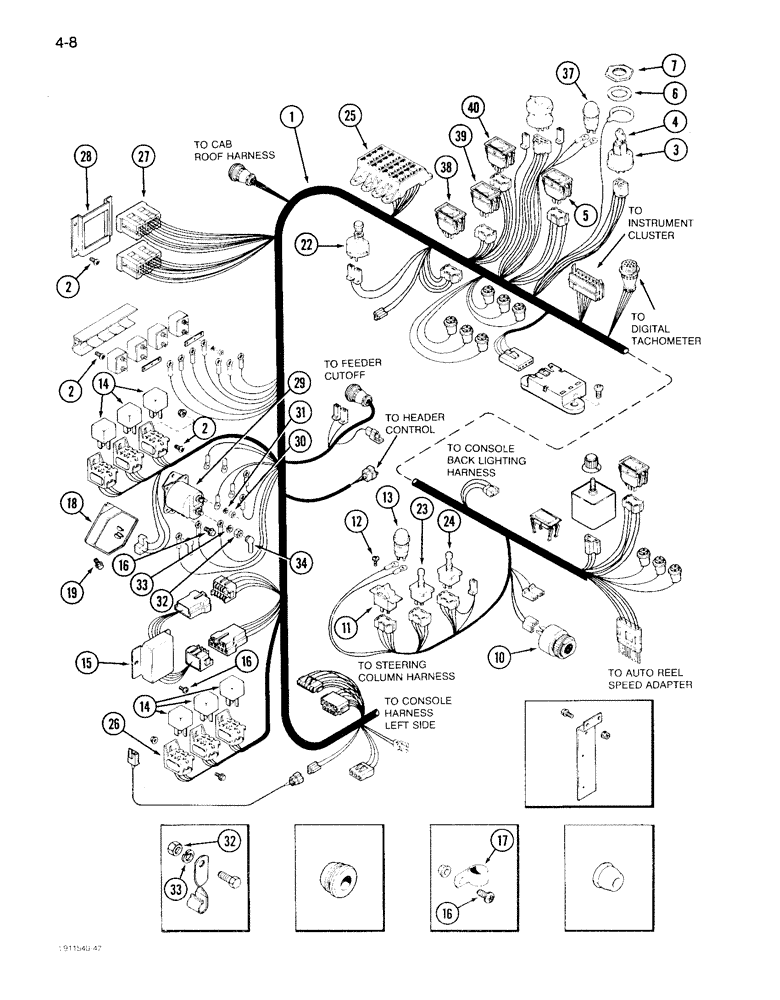

Запчасти Case IH 1640 (4-08) - CONSOLE HARNESS, RIGHT SIDE, PRIOR TO P.I.N. JJC0097190 (06) - ELECTRICAL

1

1345237C1

HARNESS

- console

1шт.

2

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

8шт.

2

27017R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - hex tapping, No. 10 x 3/4 inch

2шт.

3

1252476C1

SWITCH

ASSEMBLY - key starting

1шт.

4

131313C1

KEY, IGNITION

KEY - starting switch

1шт.

5

245219C1

SWITCH

ASSEMBLY - rotor speed

1шт.

6

375431R1

LOCK WASHER

- flat, 19/32 x 1 x 1/8 inch

1шт.

7

365502R1

NUT

- mounting

1шт.

10

245854C1

BUZZER

- alarm

1шт.

11

1301175C1

SWITCH

- reel lift control

1шт.

12

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

2шт.

13

REF

INSTRUCTION

SWITCH ASSEMBLY - feeder reverser (See Figure 4-38)

1шт.

14

1-7877

RELAY

- electrical

6шт.

15

187609C2

RECTIFIER

ASSEMBLY - diode

1шт.

16

187-583

SELF-TAP SCREW,1/4" - 20 x 1/2"

BOLT - pan head tapping, 1/4 x 1/2 inch

6шт.

17

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - console harness

2шт.

18

245835C1

SUPPRESSOR

- central load dump

1шт.

19

593749R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head tapping, No. 10 x 1/2 inch

2шт.

22

245513C1

SWITCH

- dimmer (If equipped)

1шт.

23

245633C1

IGNITION SWITCH

SWITCH ASSEMBLY - feeder clutch, 2 position (without reverser)

1шт.

23

1964919C1

IGNITION SWITCH

SWITCH ASSEMBLY - feeder clutch, 3 position (with reverser)

1шт.

24

245632C1

SWITCH

ASSEMBLY - separator clutch

1шт.

25

245435C1

FUSE HOLDER

BLOCK - fuse

3шт.

26

NSS

NOT SOLD SEPARAT

SOCKET - relay (Order 1987432C2)

6шт.

27

NSS

NOT SOLD SEPARAT

MODULE - feedback (Order 1987432C2)

2шт.

28

NSS

NOT SOLD SEPARAT

BRACKET - feed back module mounting (Order 1987432C2)

1шт.

29

107655C1

SOLENOID SWITCH

SWITCH ASSEMBLY - magnetic cab power

1шт.

30

120614

NUT,Hex, #10 - 32

NUT, #10-32

9шт.

31

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

9шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

34

399470R1

BOOT

- cable (If equipped)

2шт.

37

453453C1

SWITCH

ASSEMBLY - ether start push button

1шт.

38

245012C1

SWITCH

ASSEMBLY - 4 wheel drive

1шт.

39

245012C1

SWITCH

ASSEMBLY - variable propulsion (If equipped)

1шт.

40

245219C1

SWITCH

ASSEMBLY - fan speed

1шт.

42

245334C1

PLUG

- panel switch cover

1шт.

43

245653C2

SWITCH

ASSEMBLY - reel speed manual

1шт.

44

1345235C1

BUTTON

KNOB - control, reel speed

1шт.

45

245509C1

SWITCH

ASSEMBLY - reel, before and after (If equipped)

1шт.

46

245871C1

BRACKET

- circuit breaker

1шт.

47

245765C1

CIRCUIT-BREAKER,30A

BREAKER - worklight circuit, 30 ampere

2шт.

48

245762C1

CIRCUIT-BREAKER,15A

BREAKER - rotor circuit, 15 ampere

1шт.

49

245763C1

CIRCUIT-BREAKER,20A

BREAKER - cab circuit, 20 ampere

1шт.

50

245861C1

BAR

- breaker buss

1шт.

51

107200C2

LIGHT SWITCH

SWITCH ASSEMBLY - headlight

1шт.

53

363660R1

CLIP

- console harness, twisted

1шт.

54

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

56

198820C1

GROMMET

- rubber, console harness

1шт.

57

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex flange lock, 1/4 NC x 1/2 inch

1шт.

58

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

1шт.

59

121770C2

TRANSMITTER

MODULE - coolant

1шт.

60

1347059C2

SUPPORT

- seat relay

1шт.

61

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

62

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

63

1345209C1

HARNESS

- seat switch

1шт.

64

195804C1

GROMMET

- 1/2 inch

1шт.

65

1983395C1

IGNITION SWITCH

SWITCH seat, operator pressure

1шт.

66

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan head Phillips, 1/4 NC x 1/2 inch

2шт.
