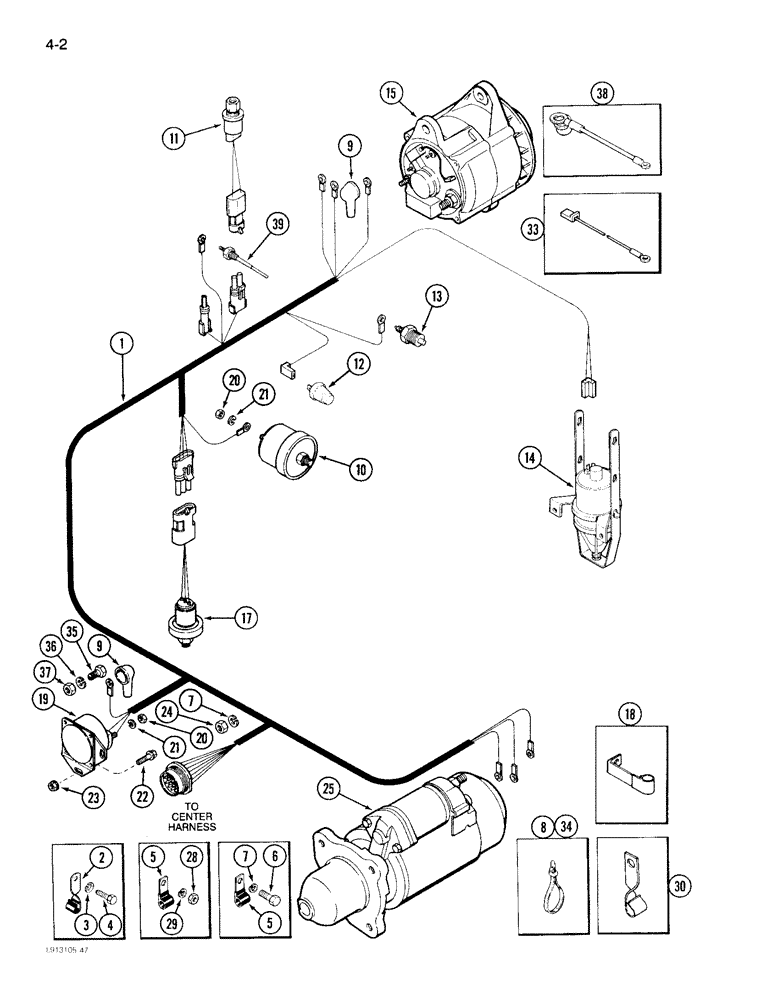

Запчасти Case IH 1640 (4-02) - ENGINE HARNESS, PRIOR TO P.I.N. JJC0097190 (06) - ELECTRICAL

1

1983383C1

HARNESS

- engine (P.I.N. JJC0035145 through JJC0097189)

1шт.

1

1964952C4

HARNESS

- engine (Prior to P.I.N. JJC0035145)

1шт.

1

245934C3

HARNESS

ASSEMBLY - engine

1шт.

Use P.I.N. JJC0024281 through JJC0024288.

1шт.

2

670368C1

CLIP

- engine block, rear

1шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

5

362123R1

CLIP

- engine harness

3шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

8

702093C1

CABLE TIE

STRAP - cable retaining

1шт.

9

399470R1

BOOT

- cable

2шт.

10

1341330C1

TRANSMITTER

SWITCH - sender, oil pressure

1шт.

11

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

12

1345488C1

PRESSURE SWITCH

SWITCH - coolant, high temperature

1шт.

13

121756C2

SENSOR

SENDER - coolant temperature

1шт.

14

REF

INSTRUCTION

SOLENOID - ether injection (See Figure 2-20)

1шт.

15

REF

INSTRUCTION

ALTERNATOR - (See Figure 4-68)

1шт.

17

1964960C1

PRESSURE SWITCH

SWITCH - pressure header lift

1шт.

18

399657R1

CLIP

- engine harness, front cover

1шт.

19

A39079

SOLENOID

- ignition

1шт.

20

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

22

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- hex flanged, 1/4 NC x 3/4 inch

2шт.

23

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flanged, 1/4 inch NC

2шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

25

REF

INSTRUCTION

SWITCH - starter solenoid (See Figure 4-72)

1шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

269980R1

CLIP

- engine harness center

1шт.

33

1977185C1

HARNESS

- alternator

1шт.

Use P.I.N. JJC0024281 through JJC0024288.

1шт.

34

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

1шт.

35

313-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

36

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

325-104

NUT,1/4"-20, G5

- hex, 1/4 inch NC

1шт.

38

1977135C1

HARNESS

- alternator output

1шт.

Use P.I.N. JJC0024281 through JJC0024288.

1шт.

39

A145513

SENSOR

- level, coolant

1шт.
