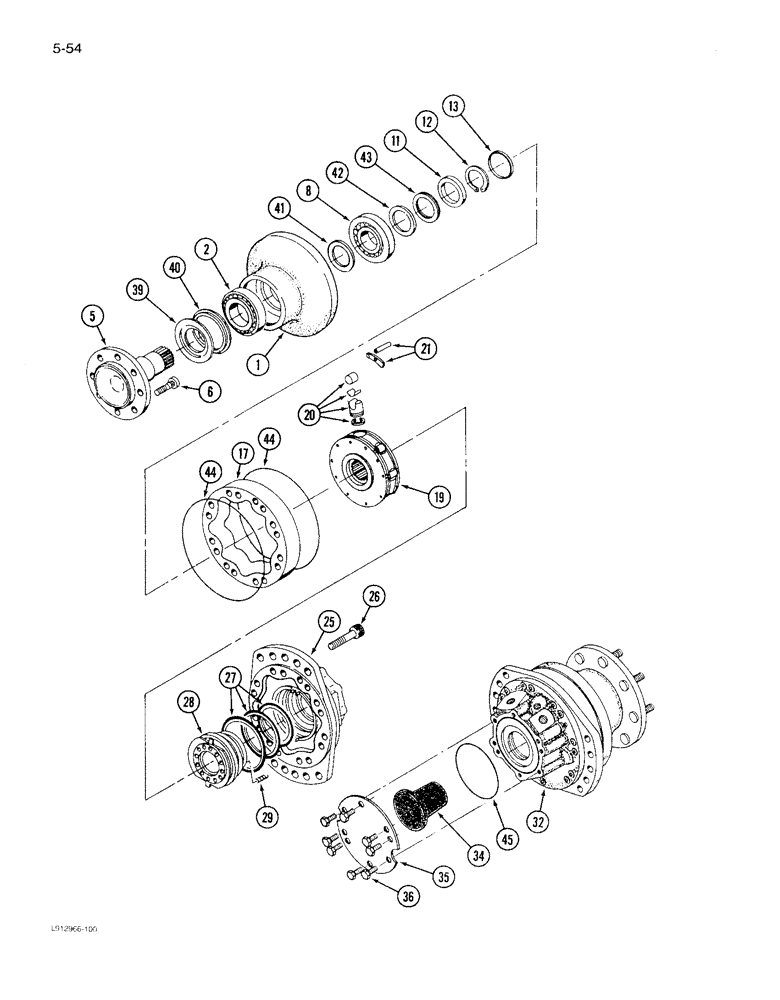

Запчасти Case IH 1640 (5-54) - WHEEL DRIVE MOTOR, POWER GUIDE AXLE (04) - STEERING
№
Артикул
Название
Примечание
Количество
1970137C2
MOTOR, HYDRAULIC
MOTOR ASSEMBLY - drive, wheel, Includes: Ref. 1 - 26
1шт.
87300716R
REMAN-HYDROSTAT MOTO
1640 - CASE IH AXIAL-FLOW COMBINE (S/N JJC0034705 & AFTER) - 1/86-12/92, Reman For New P/N's 1970137C2 & 87300716
1шт.
87300716C
CORE-HYDROSTAT MOTOR
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - support, bearing
1шт.
2
NSS
NOT SOLD SEPARAT
BEARING - outer, housing
1шт.
5
NSS
NOT SOLD SEPARAT
SHAFT - hub, wheel
1шт.
6
1970151C1
STUD
- retaining, shaft
8шт.
8
NSS
NOT SOLD SEPARAT
BEARING - inner, housing
1шт.
11
NSS
NOT SOLD SEPARAT
SPACER - retainer, ring
1шт.
12
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
13
NSS
NOT SOLD SEPARAT
RETAINER - snap ring
1шт.
17
NSS
NOT SOLD SEPARAT
RING - cam
1шт.
19
NSS
NOT SOLD SEPARAT
BLOCK ASSEMBLY- cylinder
1шт.
20
NSS
NOT SOLD SEPARAT
PISTON KIT - block
10шт.
21
NSS
NOT SOLD SEPARAT
RETAINER KIT - piston
1шт.
25
NSS
NOT SOLD SEPARAT
COVER - distribution
1шт.
26
NSS
NOT SOLD SEPARAT
BOLT - retainer, cover
16шт.
27
1986737C1
SEAL KIT
KIT - block seal (Replaces 1978004C1), Includes: Ref. 28 - 34
1шт.
28
NSS
NOT SOLD SEPARAT
BLOCK - valve
1шт.
29
NSS
NOT SOLD SEPARAT
SPRING - pressure, valve block
8шт.
32
NSS
NOT SOLD SEPARAT
HOUSING - motor, wheel
1шт.
34
1970394C1
CASE
ACCUMULATOR - housing, motor
1шт.
35
1347321C1
COVER
PLATE - cover (Replaces 1978005C1), Includes: Ref. 36
1шт.
36
NSS
NOT SOLD SEPARAT
BOLT - retainer, cover plate
8шт.
1978008C1
SEAL KIT
- wheel motor, Includes: Ref. 39 - 45
1шт.
39
NSS
NOT SOLD SEPARAT
DEFLECTOR - shaft
1шт.
40
NSS
NOT SOLD SEPARAT
SEAL - grease
1шт.
41
NSS
NOT SOLD SEPARAT
SEAL - inner, shaft
1шт.
42
NSS
NOT SOLD SEPARAT
WASHER - shim, support
1шт.
43
NSS
NOT SOLD SEPARAT
SHIM KIT - bearing
1шт.
44
NSS
NOT SOLD SEPARAT
O-RING - cam
2шт.
45
26556R1
O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro
SEAL - cover plate
1шт.
Выбрано товаров: 32
