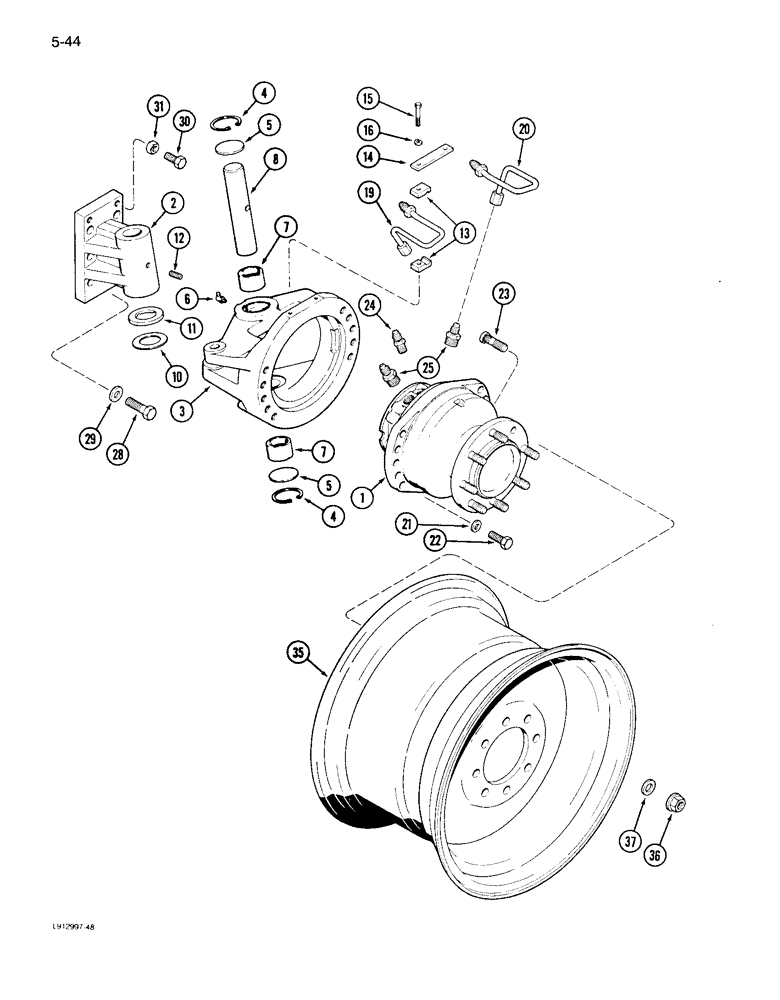

Запчасти Case IH 1640 (5-44) - WHEEL MOTOR AND KING PIN, POWER GUIDE AXLE (04) - STEERING

1

REF

INSTRUCTION

MOTOR ASSEMBLY - drive, axle (See Figure 5-54)

2шт.

2

1970138C1

HOUSING

- pin, king

2шт.

3

1970136C1

HOUSING

FRAME - support, motor right

1шт.

3

1970354C1

FRAME

- Support, Motor, LH

1шт.

4

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

4шт.

5

41-40

PLUG,Exp, 2 1/2"

- expansion, 2-1/2 inch OD

4шт.

6

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - lube, 90 degree 1/4-28 inch thread

4шт.

7

1970142C1

BUSHING

- pivot, bronze

4шт.

8

1970143C1

PIN,47.63mm OD x 231.78mm L

- king

2шт.

10

1970381C1

THRUST WASHER

- thrust,steel

2шт.

11

1970382C1

THRUST WASHER

- thrust, bronze

4шт.

12

83-820

SET SCREW,Hex Soc, 1/2"-13 x 1 1/4"

SCREW - hex socket head set, 1/2 NC x 1-1/4 inch

2шт.

13

1970148C1

CLAMP

BLOCK - hydraulic, tube

8шт.

14

1970150C1

PLATE

CLAMP - plate

2шт.

15

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

4шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

1970146C1

HYD TUBE

TUBE ASSEMBLY - pressure, right rear left front

2шт.

20

1970147C1

HYD TUBE

TUBE ASSEMBLY - pressure, left rear right front

2шт.

21

1324470C1

WASHER

- flat, 41/64 x 1 x 3/64 inch

10шт.

22

326-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 8

- hex, 5/8 x 1-3/4 inch Grade 8

10шт.

23

1970151C1

STUD

- mounting, wheel

16шт.

24

1970395C1

FITTING

CONNECTOR - straight, 18 mm - 1.50 x 1/2 inch

2шт.

25

1970396C1

FITTING

CONNECTOR - straight, 22 mm - 2.00 x 1/2 inch

4шт.

28

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

12шт.

29

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

30

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

31

329-1410

JAM NUT,Jam, 5/8"-11, G8

4шт.

35

1970153C1

RIM

WHEEL - drive, steering (For 16.9-26 or 18.4-26 tire), axle

2шт.

36

905654R1

NUT

- mounting, hex, axle drive wheel

16шт.

36

1541701C1

FLANGE NUT

- mounting, hex flange, axle drive wheel

16шт.

37

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, axle drive wheel

16шт.
