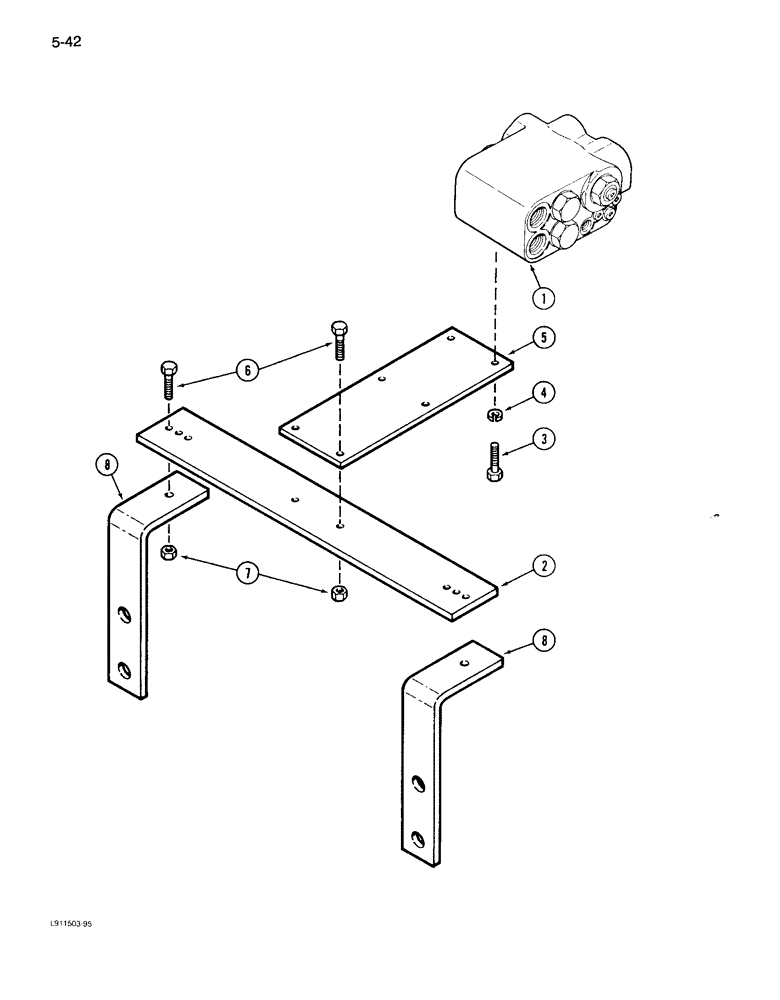

Запчасти Case IH 1640 (5-42) - SELECTOR VALVE MOUNTING, POWER GUIDE AXLE (04) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - selector (See figure 5-52)

1шт.

2

1324455C2

PLATE

- mounting, valve

1шт.

3

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, Grade 8

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

1324454C3

BAR

PLATE - mounting, valve

1шт.

6

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, Grade 8

4шт.

7

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

4шт.

8

1324471C1

BRACKET

SUPPORT - bracket, valve

2шт.
