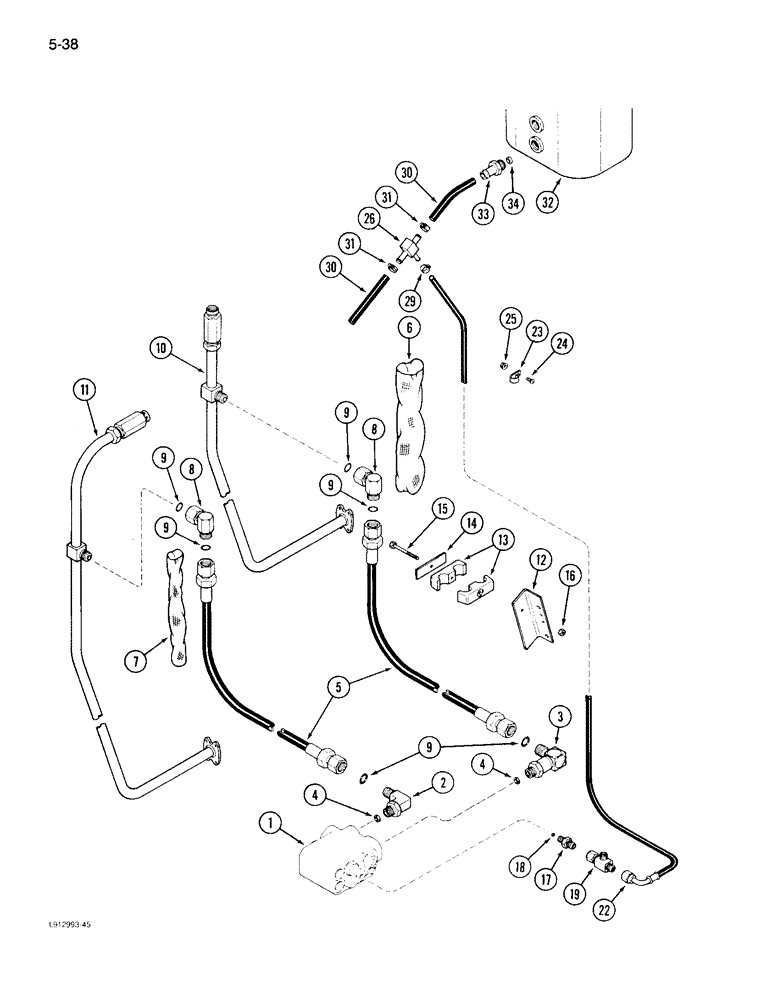

Запчасти Case IH 1640 (5-38) - SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE, PRIOR TO SERIAL NO. JJC0097189 (04) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - selector (See figure 5-52)

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face x 1-1/6-12 inch adj O-ring

1шт.

3

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Adj (Replaces 1979169C1) 90º, 1 3/16"-12 x 1 1/16"-12 Sw, ORFS

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch OD tube

2шт.

5

1989218C1

HOSE

ASSEMBLY - valve pressure, 1 965 mm long

2шт.

5

1979171C1

HOSE,19.05mm ID x 2165mm L

ASSEMBLY - valve pressure, 2 165 mm long

2шт.

6

1970108C1

PROTECTIVE COVER

SLEEVE - hose, nylon 1 219 mm long

1шт.

7

1970109C1

HOSE

SLEEVE - hose, nylon 1 219 mm long (Order 1970108C1)

1шт.

8

1979168C1

ELBOW

- 90 degree special

2шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

6шт.

10

1979177C2

HYD TUBE

TUBE - forward upper pressure

1шт.

11

1979176C2

HYD TUBE

TUBE - reverse upper pressure

1шт.

12

1324467C2

ANGLE

BRACKET - hose angle

1шт.

13

1324473C1

CLAMP

- hose

1шт.

14

1324469C1

PLATE

- clamp, hose

1шт.

15

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

5/16"-18 x 3 1/4", G8

1шт.

16

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - jump size, 3/4-16 x 9/16-18 inch

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

ASSEMBLY - swivel, 3/4-16 inch

1шт.

22

1957283C2

HYDRAULIC HOSE

0.5" ID x 134", Housing Drain

1шт.

23

L50062

SHIN

CLAMP - hose, closed coated (Replaces 299413C1)

1шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

26

1970100C1

FITTING

TEE - return hose, 3/4 x 3/4 x 1/2 inch barb end

1шт.

29

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1шт.

30

REF

INSTRUCTION

HOSE - return, 7 inch (Order B90927 and, Serial Range: cut-length)

2шт.

B90927

HOSE

- bulk, 25 foot roll

1шт.

31

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

4шт.

32

REF

INSTRUCTION

RESERVOIR - hydraulic (See figure 8-002)

1шт.

33

470420R11

FITTING

CONNECTOR - hydraulic, hex thread x hose barb end

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch OD tube

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.
