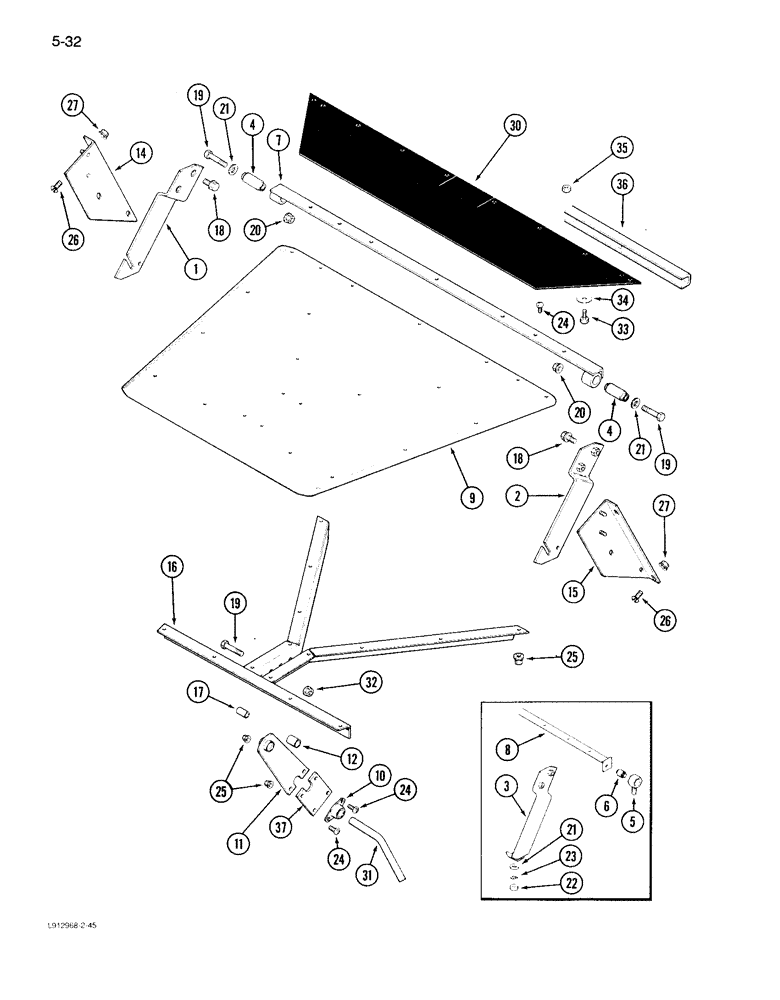

Запчасти Case IH 1640 (5-32) - STEERING AXLE SHIELD, OSCILLATING (04) - STEERING

1

1979621C1

ARM

- shield, left

1шт.

Used P.I.N. JJC0035370 and after.

1шт.

2

1979622C1

ARM ASSY.

ARM - shield, right

1шт.

Used P.I.N. JJC0035370 and after.

1шт.

3

1302778C4

BRACKET

ARM - shield, left

1шт.

Used prior to P.I.N. JJC0035370.

1шт.

3

1302779C4

BRACKET

ARM - shield, right (Shown)

1шт.

Used prior to P.I.N. JJC0035370.

1шт.

4

1330324C1

BUSHING

- front hanger

2шт.

Used P.I.N. JJC0035370 and after.

1шт.

5

181342C91

END ASSY.

END ASSEMBLY - axle, Includes: Ref. 6

2шт.

Used prior to P.I.N. JJC0035370.

1шт.

6

564103R91

COMPOSITE RING

BUSHING - axle end

2шт.

7

1979625C2

SUPPORT

- axle shield

1шт.

Used P.I.N. JJC0035370 and after.

1шт.

8

1302765C1

SUPPORT ASSY.

SUPPORT - axle shield

1шт.

Used prior to P.I.N. JJC0035370.

1шт.

9

1302762C1

SHIELD

- axle

1шт.

10

1345189C1

BEARING COVER,19.06mm ID

- pivot

1шт.

Used P.I.N. JJC0035370 and after.

1шт.

10

A63366

SPHERICAL BEARING,19mm ID

BEARING - pivot

1шт.

Used prior to P.I.N. JJC0035370.

1шт.

11

1302578C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - shield pivot, Includes: Ref. 12

1шт.

12

289588R1

BUSHING

- shield pivot support

1шт.

14

1302044C2

SUPPORT

- hood extension, left

1шт.

15

1302045C2

SUPPORT

- hood extension, right

1шт.

16

1302550C1

SUPPORT ASSY.

SUPPORT - axle shield

1шт.

17

1302776C1

BUSHING,13.46mm ID x 19.05mm OD x 30.23mm L

- pivot link

1шт.

18

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

4шт.

19

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

3шт.

20

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

4шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

25шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

29шт.

26

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

27

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

30

1302784C1

STRIP

- chaffer extension flap

1шт.

31

182922C1

ROD

- shield support

1шт.

32

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange prevailing torque, 1/2 inch NC, Grade 8

1шт.

33

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

34

106969R1

WASHER

- flat, 11/32 x 1-1/2 x 1/16 inch

6шт.

35

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

6шт.

36

REF

INSTRUCTION

SIEVE - chaffer (See Figure 9B-46)

1шт.

37

1312009C1

LINK

- pivot shield (If equipped)

1шт.
