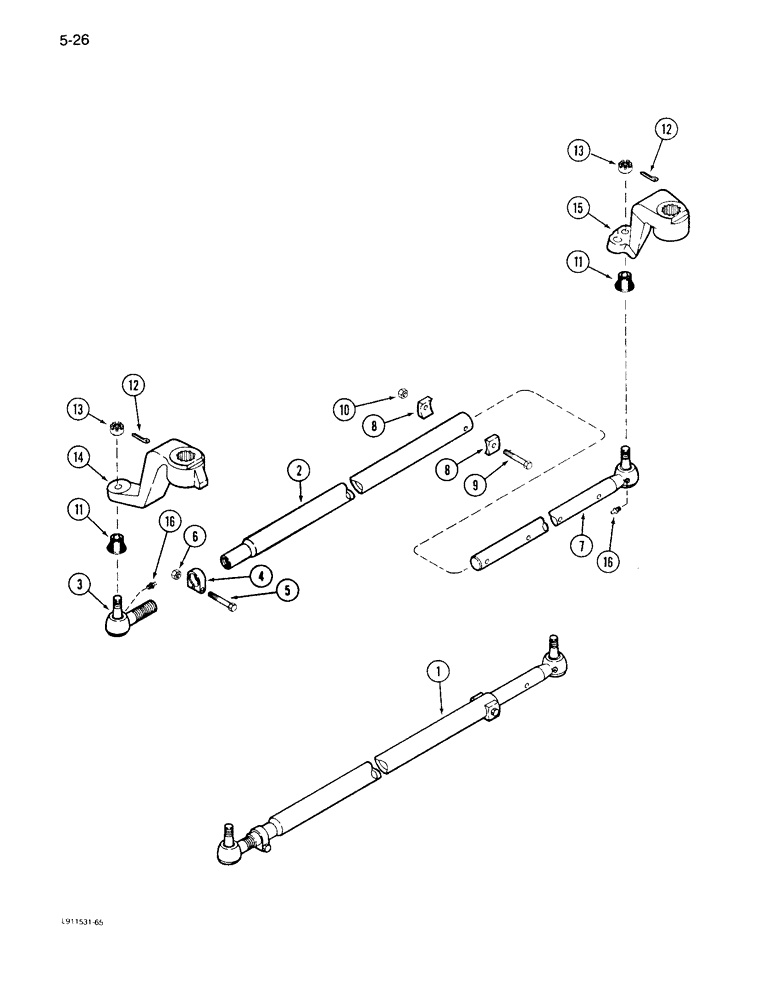

Запчасти Case IH 1640 (5-26) - STEERING TIE ROD, ADJUSTABLE AXLE, EXCEPT POWER GUIDE AXLE (04) - STEERING

1

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie (Order components), Includes: Ref. 2 - 8 & 10

1шт.

2

1300170C1

TUBE

- tie rod (For 92 to 120 inch axle)

1шт.

2

185174C1

TUBE

- tie rod (For 67 to 91 inch axle)

1шт.

2

185176C1

TUBE

- tie rod (For 56 to 68 inch axle)

1шт.

3

1302687C1

JOINT

END - tie rod, right (Use with 1300170C1 tube)

1шт.

3

179228C1

END ASSY.

END - tie rod, right (Use with 185174C1 and 185176C1 tube)

1шт.

4

225265R1

CLAMP

- tie rod, right

1шт.

5

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

6

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque, 1/2 inch NC

1шт.

7

1302686C1

JOINT

END - tie rod, left (Use with 1300170C1 tube), 40 inch long

1шт.

7

193371C1

END ASSY.

END - tie rod. left (Use with 185174C1 tube), 32 inch long

1шт.

7

196321C1

END

- tie rod, left (Use with 185176C1 tube), 20 inch long

1шт.

8

A43369

CLAMP

- tie rod, left

1шт.

9

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

1шт.

11

382562R1

SEAL

- tie rod end

2шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

13

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

2шт.

14

REF

INSTRUCTION

ARM - steering, right (See Figure 5-24)

1шт.

15

REF

INSTRUCTION

ARM - steering, left (See Figure 5-24)

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 inch PTF extra short

2шт.

10

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.
