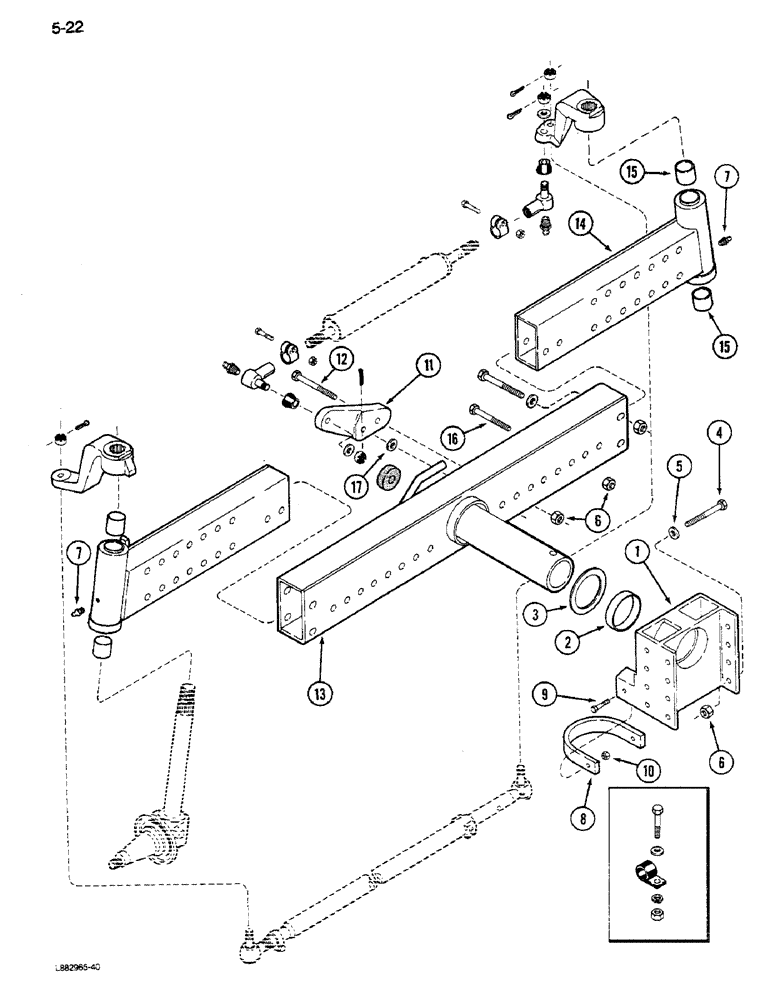

Запчасти Case IH 1640 (5-22) - STEERING AXLE, ADJUSTABLE, EXCEPT POWER GUIDE AXLE (04) - STEERING

1

177749C92

SUPPORT ASSY.

SUPPORT - axle pivot, Includes: Ref. 2

1шт.

All except 92 to 120 inch axles.

1шт.

1

186599C93

SUPPORT

- axle pivot, Includes: Ref. 2

1шт.

92 to 120 inch axle.

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle pivot

1шт.

3

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- pivot tube

1шт.

4

24896R1

BOLT,Hex, 3/4" - 10 x 5", Gr 8

1шт.

All except 92 to 120 inch axles.

1шт.

4

25360R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

- hex, 3/4 NC x 5-1/2 inch, Grade 8

1шт.

92 to 120 inch axle.

1шт.

5

25712R1

WASHER

- flat, hardened

8шт.

6

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex, 3/4 inch NC, Grade 8

1шт.

7

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING - grease, 3/16 inch drive type

2шт.

8

196084C2

CHANNEL

STRAP - tow

1шт.

All except 92 to 120 inch axles.

1шт.

8

1302625C1

CHANNEL

STRAP - tow

1шт.

92 to 120 inch axle.

1шт.

9

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

1шт.

All except 92 to 120 inch axles.

1шт.

9

24879R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

92 to 120 inch axle.

1шт.

10

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex, 5/8 inch NC, Grade 8

2шт.

11

193917C1

ANCHOR

- steering cylinder

1шт.

All except 92 to 120 inch axles.

1шт.

11

182782C1

ANCHOR

- steering cylinder

1шт.

92 to 120 inch axle.

1шт.

12

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

- hex, 3/4 NC x 5-1/4 inch

1шт.

All except 92 to 120 inch axles.

1шт.

12

113-725

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch

1шт.

92 to 120 inch axle.

1шт.

13

182800C2

AXLE

ASSEMBLY - adjustable, grain, 56 to 68 inch

1шт.

13

1302523C2

AXLE

ASSEMBLY - adjustable, corn, 56 to 68 inch

1шт.

13

182799C2

AXLE

ASSEMBLY - adjustable, grain, 67 to 91 inch

1шт.

13

1302520C2

AXLE

ASSEMBLY - adjustable, corn, 67 to 91 inch

1шт.

13

186317C2

AXLE

ASSEMBLY - adjustable, grain, 92 to 120 inch

1шт.

13

1302522C2

STEERING AXLE

AXLE ASSEMBLY - adjustable, corn, 92 to 120 inch

1шт.

14

183454C91

EXTENSION

ASSEMBLY - axle, left (for 92 to 120 inch axle), Includes: Ref. 15

1шт.

14

177763C91

EXTENSION ASSY.

EXTENSION ASSEMBLY - axle, left (for 67 to 91 inch axle), Includes: Ref. 15

1шт.

14

178488C91

EXTENSION

ASSEMBLY - axle, left (for 56 to 68 inch axle), Includes: Ref. 15

1шт.

15

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- spindle

2шт.

16

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

17

464623R1

WASHER

SPACER - (For 56 to 68 inch axles only)

1шт.
