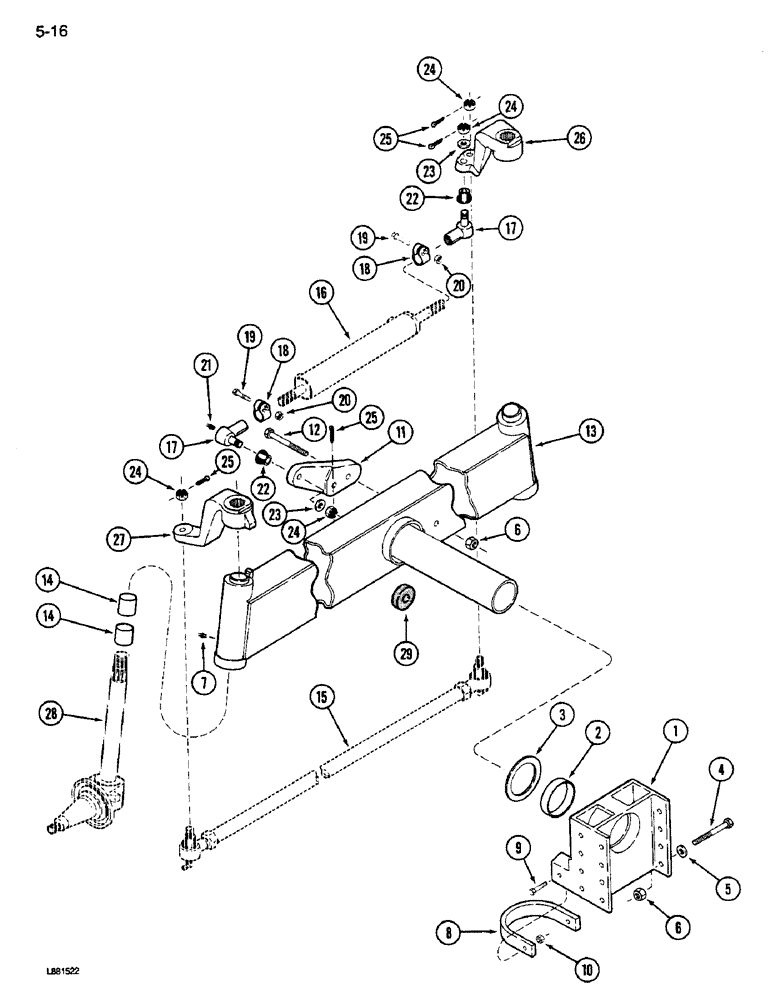

Запчасти Case IH 1640 (5-16) - STEERING AXLE, NONADJUSTABLE (04) - STEERING
№
Артикул
Название
Примечание
Количество
1
177749C92
SUPPORT ASSY.
SUPPORT - axle pivot
1шт.
2
177751C1
BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L
- axle pivot
1шт.
3
168385C2
WASHER,102.6mm ID x 127mm OD x 3.3mm Thk
- axle pivot
1шт.
4
24896R1
BOLT,Hex, 3/4" - 10 x 5", Gr 8
8шт.
5
25712R1
WASHER
- flat, hardened
8шт.
6
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
- hex, 3/4 inch NC, Grade 8
10шт.
7
80722
LUBE NIPPLE,3/16" x .55" lg, Drive
FITTING - grease, 3/16 inch drive type
2шт.
8
196084C2
CHANNEL
STRAP - tow
1шт.
9
24876R1
BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8
2шт.
10
195313C1
FLANGE NUT,Flg, USR, 5/8"-12
- hex lock, 5/8 inch NC, Grade 8
2шт.
11
193917C1
ANCHOR
- steering cylinder
1шт.
12
21218R1
BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5
- hex, 3/4 NC x 5-1/4 inch
2шт.
13
182798C2
AXLE
- steering, grain combine, Includes: Ref. 14
1шт.
13
1302521C2
AXLE
- steering, corn combine, Includes: Ref. 14
1шт.
14
358958R2
BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L
- spindle
4шт.
15
REF
INSTRUCTION
ROD ASSEMBLY - tie (See Figure 5-18)
1шт.
16
REF
INSTRUCTION
CYLINDER ASSEMBLY - steering (See Figure 5-10)
1шт.
17
186796C1
BALL JOINT
SOCKET - steering cylinder end, Includes: Ref. 18 - 21
2шт.
18
384371R1
CLAMP
- socket, Includes: Ref. 19 and 20
1шт.
19
180152
BOLT,Hex, 7/16" - 14 x 1 7/8", Gr 5
- hex, 7/16 NC x 1-7/8 inch
1шт.
20
231-4117
LOCK NUT,7/16"-14, GB
NUT - hex prevailing torque, 7/16 inch NC
1шт.
21
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg
2шт.
22
382562R1
SEAL
- socket end
2шт.
23
21712R1
WASHER
- flat, 23/32 x 1-1/2 x 7/64 inch
2шт.
24
NLS
NO LONGER SERVICED
- hex slotted, 5/8 inch NF
4шт.
25
137204
COTTER PIN,1/8" x 1 1/2"
PIN, SPLIT (COTTER), 1/8" x 1 1/2"
4шт.
26
193911C3
ARM
- steering, left
1шт.
27
193912C3
STEERING ARM
- steering, right
1шт.
28
REF
INSTRUCTION
KNUCKLE - steering (See Figure 5-28)
1шт.
29
167955C2
SEAL
- steering hose
1шт.
Выбрано товаров: 30
