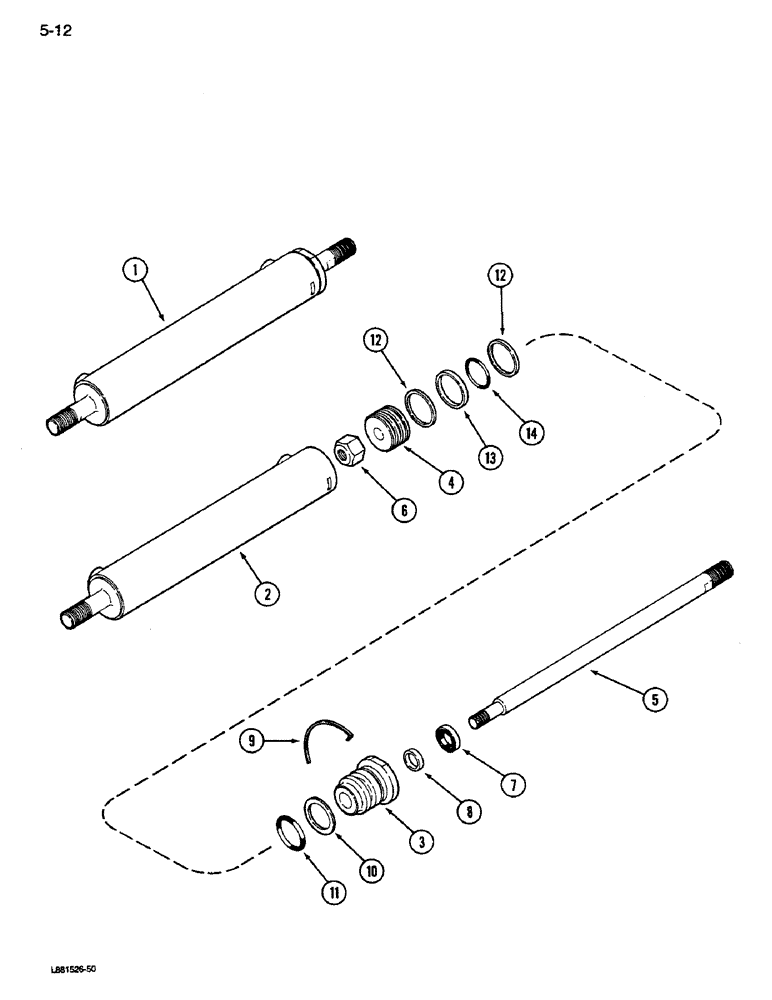

Запчасти Case IH 1640 (5-12) - STEERING CYLINDER ASSEMBLY, COMBINE WITH POWER GUIDE AXLE PRIOR TO P.I.N. JJC0034001 (04) - STEERING

1

127913C92

CYLINDER

ASSEMBLY - steering, Includes: Ref. 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder (Order 127913C92)

1шт.

3

127919C1

GLAND

HEAD - front

1шт.

4

127921C1

PISTON

- cylinder

1шт.

5

127920C1

ROD

- piston

1шт.

6

9411658

LOCK NUT,5/8"-11, GC

NUT - lock, 5/8 inch NF

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod

1шт.

Part of Cylinder Service Kit, P/N 73661C92

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - urethane, piston rod

1шт.

Part of Cylinder Service Kit, P/N 73661C92

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining wire

1шт.

Part of Cylinder Service Kit, P/N 73661C92

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - o-ring back-up

1шт.

Part of Cylinder Service Kit, P/N 73661C92

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-7/8 x 2-1/4 inch

1шт.

Part of Cylinder Service Kit, P/N 73661C92

1шт.

12

NSS

NOT SOLD SEPARAT

RING - piston bearing

2шт.

Part of Cylinder Service Kit, P/N 73661C92

1шт.

13

NSS

NOT SOLD SEPARAT

RING - piston, teflon

1шт.

Part of Cylinder Service Kit, P/N 73661C92

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 1-13/16 x 2 inch

1шт.

Part of Cylinder Service Kit, P/N 73661C92

1шт.

73661C92

SEAL KIT

KIT - cylinder service, Includes: Ref. 7 - 14

1шт.
