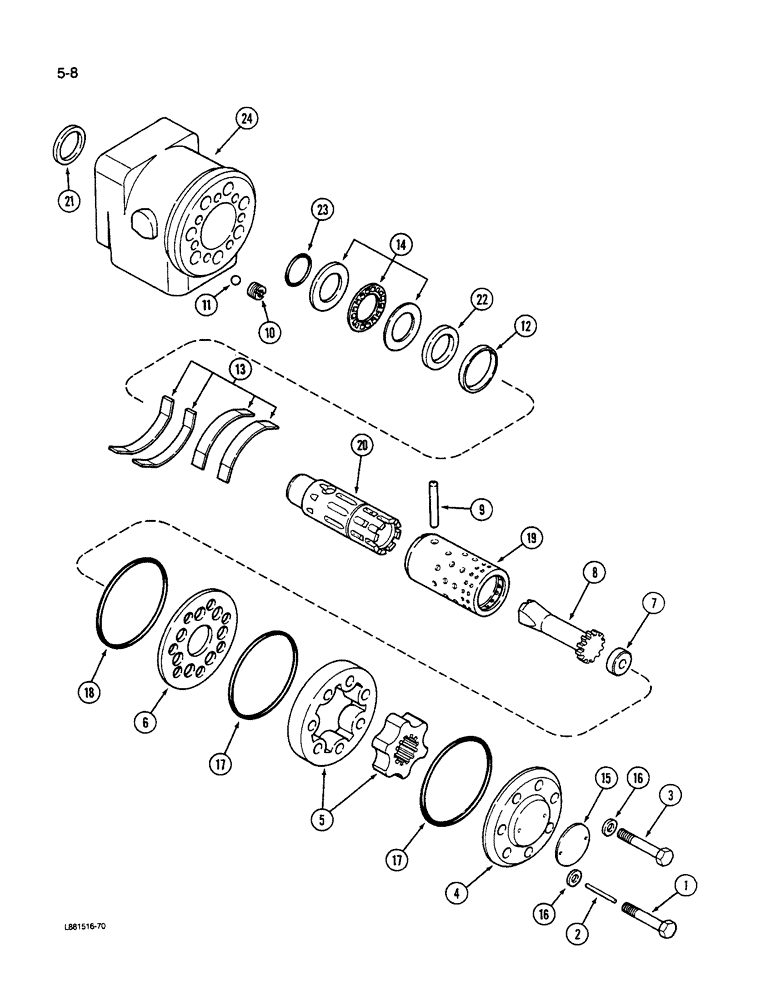

Запчасти Case IH 1640 (5-08) - STEERING HAND PUMP (04) - STEERING

1272798C93

PUMP, HYDRAULIC

PUMP ASSEMBLY - steering hand, Includes: Ref. 1 - 24

1шт.

1

1272791C1

SCREW

BOLT - hex, special (Drilled)

1шт.

2

3112271R1

PIN, ROLL

PIN - roll, 2 x 32 mm

1шт.

3

3216710R1

SCREW

BOLT - hex, 8 x 40 mm

6шт.

4

1272805C1

COVER

- end

1шт.

5

1272804C1

GEAR

SET - pump

1шт.

6

1272803C1

PLATE

- gear

1шт.

7

1272802C1

SPACER

- shaft

1.шт.

8

1272797C1

SHAFT

- pump

1шт.

9

1272796C1

CROSS PIN

6 x 41 mm

1шт.

10

1272793C1

BUSHING

- housing

1шт.

11

1272794C1

BALL

- check, 8 mm diameter

1шт.

12

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

- seal

1шт.

13

1272809C1

PACKAGE

KIT - spring

1шт.

14

1272808C1

NEEDLE BEARING

- needle bearing

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - rating (Order 1272798C93)

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - flat, cover bolt

7шт.

Part of Seal Repair Kit, P/N 3141548R91

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - 76 x 2 mm

2шт.

Part of Seal Repair Kit, P/N 3141548R91

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 80 x 1 mm

1шт.

Part of Seal Repair Kit, P/N 3141548R91

1шт.

19

NSS

NOT SOLD SEPARAT

SLEEVE - pump (Order 1272798C93)

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE - pump (Order 1272798C93)

1шт.

21

NSS

NOT SOLD SEPARAT

RING - housing

1шт.

Part of Seal Repair Kit, P/N 3141548R91

1шт.

22

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

Part of Seal Repair Kit, P/N 3141548R91

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of Seal Repair Kit, P/N 3141548R91

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - pump (Order 1272798C93)

1шт.

3141548R91

SEAL KIT

KIT - seal repair, Includes: Ref. 16, 17, 18, 21, 22, and 23

1шт.
