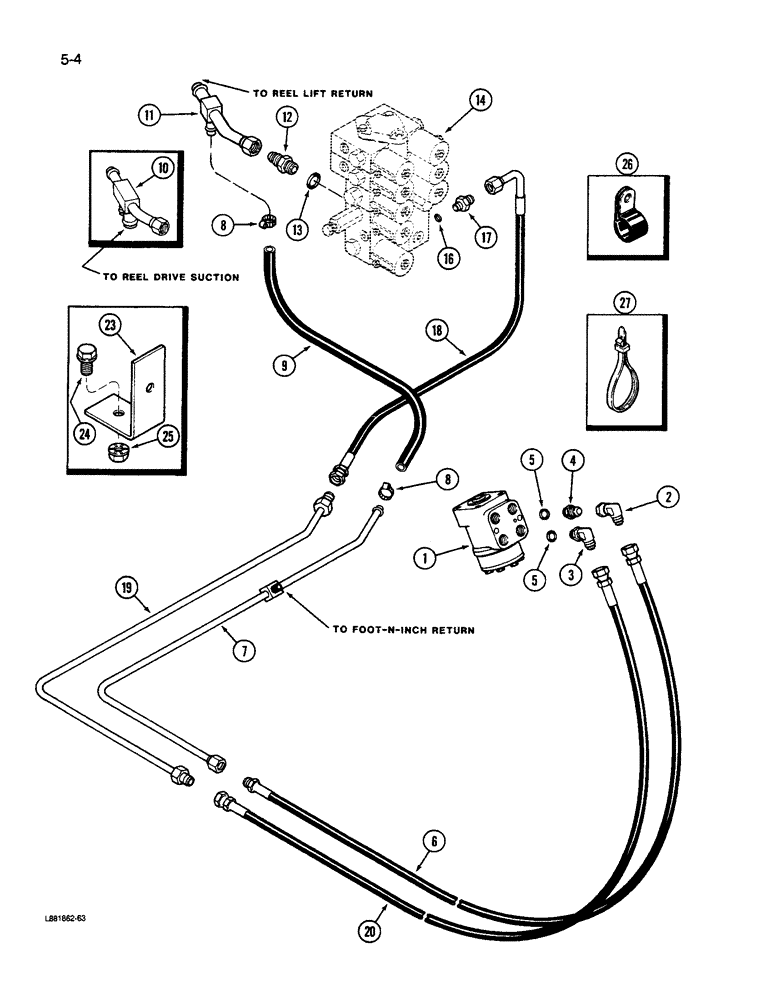

Запчасти Case IH 1640 (5-04) - POWER STEERING SYSTEM, SUPPLY AND RETURN SYSTEM (04) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering (See Figure 5-8)

1шт.

2

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 1/2 inch tube 3/4-16 thread

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 1/2 inch tube 3/4-16 thread

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - short swivel, 1/2 inch tube 3/4-16 thread

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

6

1317939C1

HOSE

- steering hand pump return

1шт.

7

1310764C1

HYD TUBE

TUBE ASSEMBLY - steering return

1шт.

8

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP - hose, No. 8, Type F

2шт.

9

NSS

NOT SOLD SEPARAT

HOSE - steering return, 26 inch (Order S118466, Serial Range: cut-length)

1шт.

S118466

HOSE,0.50" ID x 300.00"

0.50" ID x 300.00"

1шт.

10

1310757C1

TUBE

ASSEMBLY - header lift and steering return

1шт.

11

1310756C1

HYD TUBE,0.75, 0.5" OD, 198, 33 mm Length

TUBE ASSEMBLY - header lift and steering return (Combines with 825 header)

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - short, 3/4 inch tube 1-1/16-12 thread x 5/8 inch tube 7/8-14 thread

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube

1шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-32)

1шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short, 1/2 inch tube 3/4-16 thread x 3/8 inch tube 9/16-18 thread

1шт.

18

1310755C2

HOSE

- steering pressure

1шт.

19

1310765C1

HYD TUBE

TUBE ASSEMBLY - steering pressure

1шт.

20

1327580C1

HOSE

- steering hand pump pressure

1шт.

23

183899C1

ANGLE

- hand pump hoses

1шт.

24

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flanged lock, 5/16 NC x 3/4 inch

1шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged lock, 5/16 inch NC

1шт.

26

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

- coated closed, 1-7/8 inch diameter

1шт.

27

306132C1

CABLE TIE,14.5" L

STRAP - cable lock 14 in

3шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.
