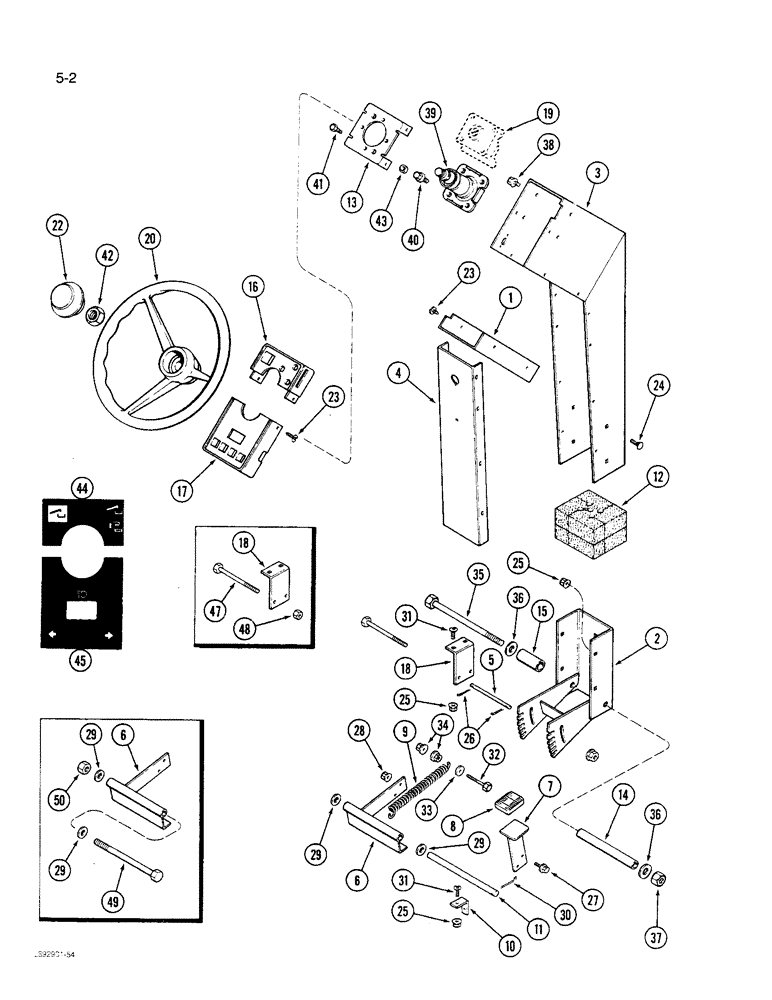

Запчасти Case IH 1640 (5-02) - STEERING SUPPORT AND WHEEL (04) - STEERING

1

1327540C3

CHANNEL

- steering post cover

1шт.

2

1321449C1

SECTOR

ASSEMBLY - steering post pivot

1шт.

3

1327550C4

SUPPORT

POST - steering

1шт.

4

1327551C1

CHANNEL

- steering post cover

1шт.

5

215665C1

PIN

- steering pivot stop (If equipped)

1шт.

6

193235C3

PIVOT

- release, steering

1шт.

7

193238C1

PEDAL ASSY.

PEDAL ASSEMBLY - steering release

1шт.

8

357444C1

PEDAL

PAD - foot pedal

1шт.

9

183608C1

SPRING

- pedal return

1шт.

10

193244C1

ANGLE

- steering column pivot

1шт.

11

193246C1

PIN

- steering release (If equipped)

1шт.

12

1324844C1

SEAL

- steering pedestal

1шт.

13

1283223C2

SUPPORT

ASSEMBLY - steering pump

1шт.

14

1321442C1

TUBE,13.51 mm ID, 19.05 mm OD

- steering column pivot

1шт.

15

1321441C1

SPACER

- steering column

1шт.

16

1327546C1

COVER

- steering column, top front

1шт.

17

1327547C4

COVER

- steering column, top rear

1шт.

18

193263C1

SUPPORT

- steering pivot stop pin

1шт.

19

REF

INSTRUCTION

PUMP ASSEMBLY - steering (See Figure 5-8)

1шт.

20

1321683C1

WHEEL (STEERING)

WHEEL - steering

1шт.

22

1329895C1

CAP ASSY.

CAP ASSEMBLY - steering wheel

1шт.

23

1321447C1

SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL

SCREW - pan head recess, polyseal, 1/4 x 1/2 inch

17шт.

24

1321448C1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, polyseal, 5/16 NC x 3/4 inch

6шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

9шт.

26

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

27

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- hex head flange, 1/4 NC x 3/4 inch

2шт.

28

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

29

178373R1

WASHER

- flat, 9/16x 1 x 1/16inch

2шт.

30

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

31

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

3шт.

32

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

33

25709R1

WASHER

- flat, 13/32 x 47/64 x 1/16 inch

2шт.

34

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

35

25690R1

BOLT,Hex, 1/2" - 13 x 8", Gr 8

- hex, 1/2 NC x 8 inch, Grade 8

1шт.

36

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

- flat, 17/32 x 1-1/4 x 3/16 inch

1шт.

37

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

38

1327574C1

FLANGE BOLT,Hex Serr, 5/16" - 18 x 1/2", Gr 5

BOLT - hex head flange, polyseal, 5/16 NC x 1/2 inch

4шт.

39

1282041C91

SHAFT ASSY.

SHAFT - steering column

1шт.

40

543313R1

DECAL

BOLT - hex head flange, 3/8 NC x 3/4 inch

2шт.

41

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex head lock, 3/8 NC x 1-1/4 inch

2шт.

42

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

- hex, steering wheel retaining, 18 mm x 1.5

1шт.

43

561277R1

SPACER,5/8" Tube x 1/2"

- 5/8 x 7/16 inch

2шт.

44

1327548C1

DECAL

- steering column, upper

1шт.

45

1327549C3

DECAL

- steering column, rear

1шт.

47

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- 5/16 NC x 4-1/2 inch

1шт.

48

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

49

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

- hex, 1/2 NC x 7 inch

1шт.

50

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.
