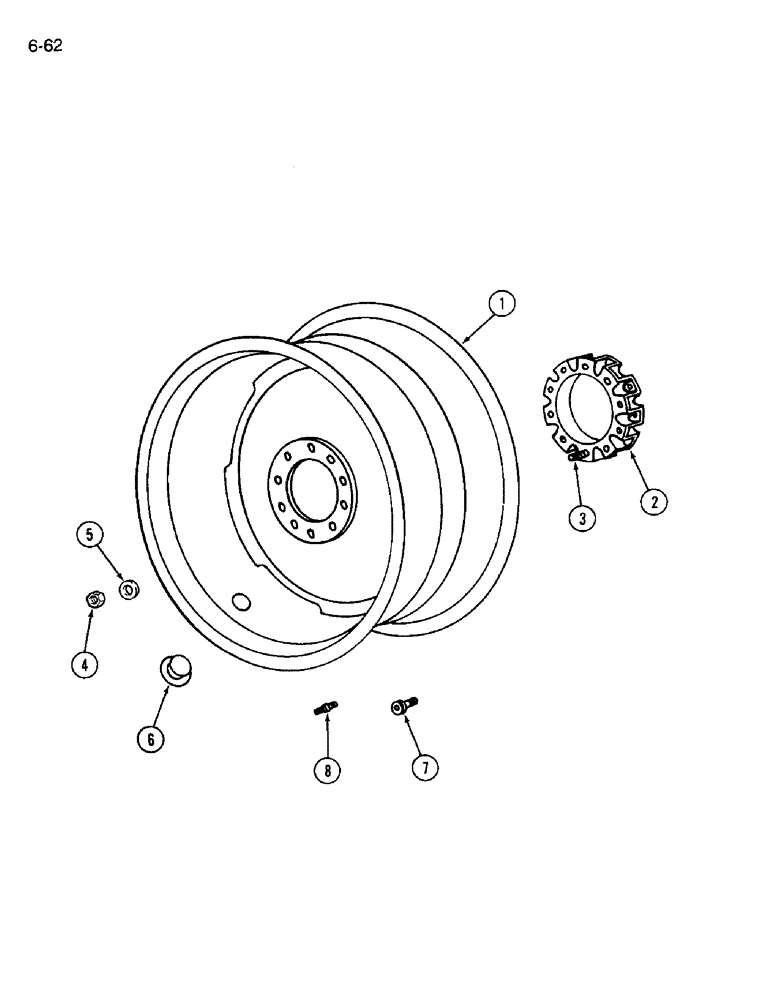

Запчасти Case IH 1640 (6-62) - DRIVE WHEELS AND SPACERS (03) - POWER TRAIN

1

193599C1

WHEEL ASSY.

WHEEL - drive (For 23.1 x 26 tires) (Alternate with 188792C1 and 1312997C1)

2шт.

1

188792C1

WHEEL ASSY.

WHEEL - drive (For 23.1 x 26 tires) (Alternate with 193599C1 and 1312997C1)

2шт.

1

1312997C1

RIM

WHEEL - drive (For 23.1 x 26 tires) (Alternate with 193599C1 and 188792C1)

2шт.

1

196197C2

WHEEL ASSY.

WHEEL - drive (For 28L x 26 tires)

2шт.

1

184482C1

RIM

WHEEL - drive (For 24.5 x 32 tires) (Replaces 193666C1)

2шт.

1

196196C2

WHEEL

- drive (For 23.1 x 34 tires)

2шт.

2

178912C92

RETAINER

SPACER - wheel, 3-1/2 inch

2шт.

2

188124C91

RETAINER

SPACER - wheel, 2-1/2 inch

2шт.

3

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

- wheel (Used in spacer only)

20шт.

4

25632R1

NUT,3/4"-16, G8

- hex, 3/4 inch NF, Grade 8

20шт.

5

25548R1

WASHER

- flat, hardened (Not used with spacers)

20шт.

6

417194C1

PLUG

- valve hole (For tubeless tires)

2шт.

6

383697R1

PLUG

- valve hole (For tube type tires)

2шт.

7

179482C1

VALVE STEM

VALVE - inflation

2шт.

8

407184C1

VALVE STEM

CORE - valve inflation

2шт.
