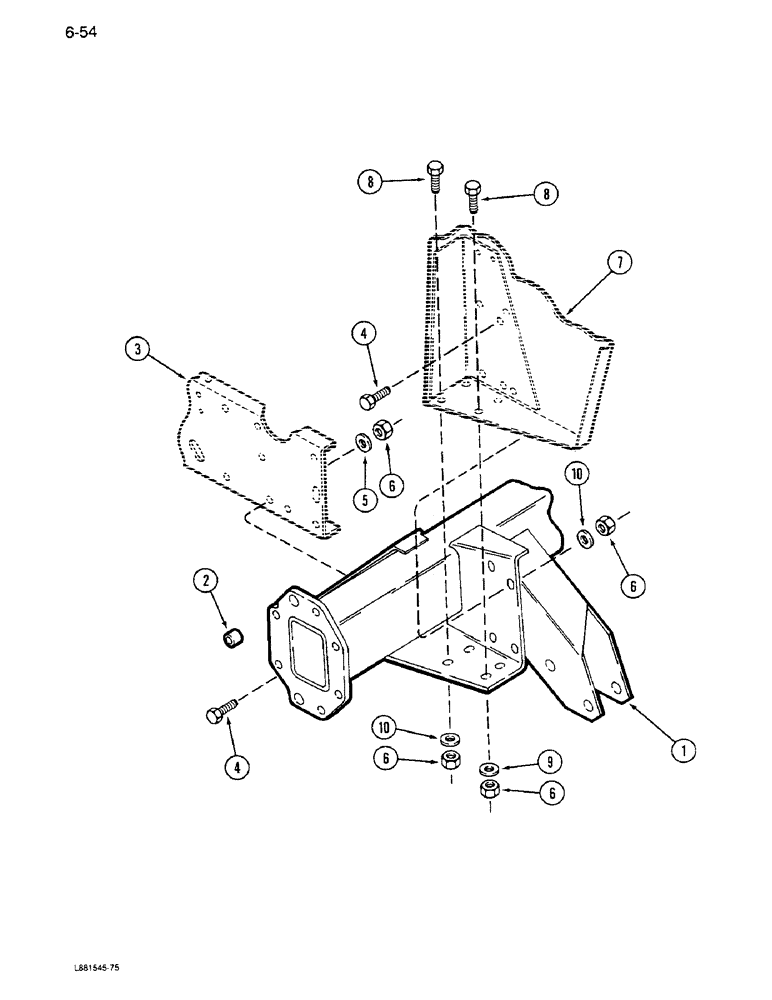

Запчасти Case IH 1640 (6-54) - DRIVE AXLE (03) - POWER TRAIN

1

1324584C3

CENTER AXLE

AXLE - drive

1шт.

Ref #1 - This bracket consists of two parts, 1302646C3 is the flat piece, 181002C3 is the flanged piece. One each is required for two cylinders, for adding a third cylinder, another 181002C3 is required.

1шт.

2

1315371C1

BUSHING

DOWEL - end plate

4шт.

3

REF

INSTRUCTION

SUPPORT - separator side, right (See Figure 9H-6)

1шт.

4

24872R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

18шт.

5

195-2203

WASHER,21/32" x 2" x .238"

- flat, 21/32 x 2 x 11/64 inch

10шт.

6

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

26шт.

7

REF

INSTRUCTION

POST - separator front, right (See Figure 9H-6)

1шт.

8

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

8шт.

9

129-138

NUT,3/4"-10, G8

WASHER - flat, 21/32 x 1-1/2 x 3/16 inch

4шт.

10

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

12шт.
