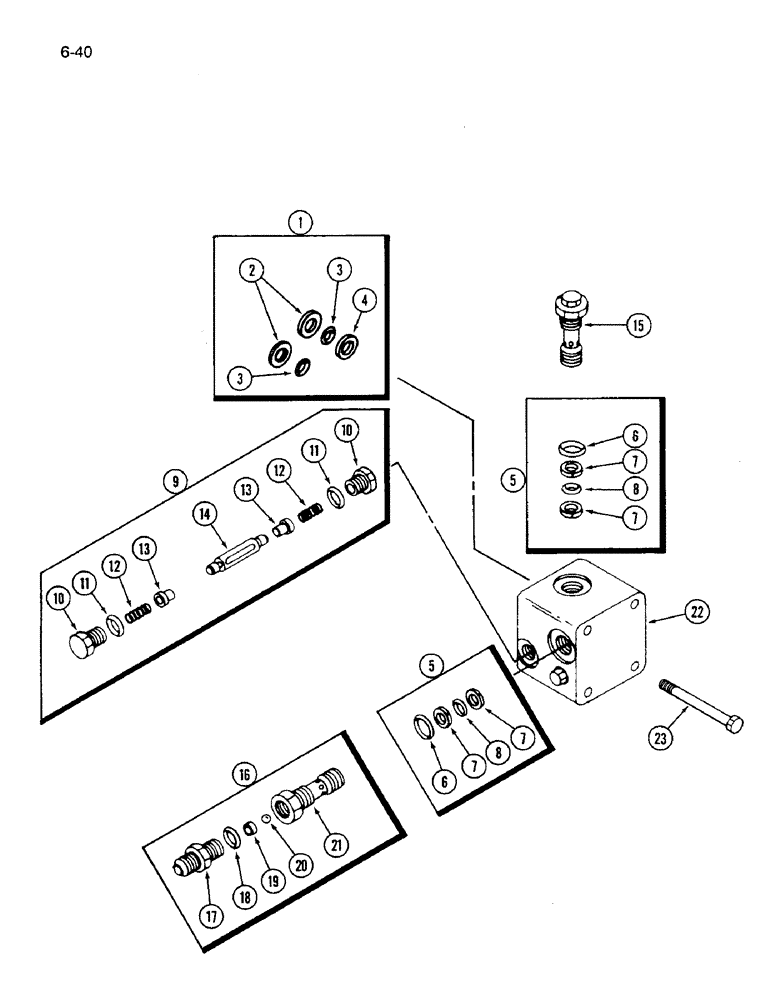

Запчасти Case IH 1640 (6-40) - HYDROSTATIC MOTOR, RELIEF VALVE BLOCK (03) - POWER TRAIN

1971432C1

BLOCK

ASSEMBLY - relief valve (Replaces 145554C92), Includes: Ref. 1 - 22

1шт.

1

140747C91

SEAL KIT

- valve block seal, Includes: Ref. 2 - 4

1шт.

2

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

- square, 3/4 x 7/8 x 1/16 inch

1шт.

3

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- 3/4 x 7/8 x 3/32 inch

2шт.

4

631458C1

RING

- backup

2шт.

5

393885R91

GASKET KIT

KIT - relief valve seal, Includes: Ref. 6 - 8

3шт.

6

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-7/32 x 7/64 inch

1шт.

7

393887R1

BACK-UP RING

RING - backup

2шт.

8

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- 13/16 x 1 x 3/32 inch

1шт.

9

145559C91

KIT

- shuttle valve, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - (Order 145559C91)

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

12

145560C1

SPRING

- shuttle valve

2шт.

13

NSS

NOT SOLD SEPARAT

VALVE - shuttle (Order 145559C91)

2шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - shuttle (Order 145559C91)

1шт.

15

140761C1

VALVE PRESSURE RELIE

VALVE - low pressure relief

1шт.

16

1971415C1

VALVE

- feathering relief (Replaces 1266867C92), Includes: Ref. 17 - 21

2шт.

17

NSS

NOT SOLD SEPARAT

CONNECTOR - special (Order 1971415C1)

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 1/4 inch O.D. tube (Order 1971415C1)

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - ball guide (Order 1971415C1)

1шт.

20

NSS

NOT SOLD SEPARAT

BALL - steel, 1/2 inch (Order 1971415C1)

1шт.

21

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve (Order 1971415C1)

1шт.

22

NSS

NOT SOLD SEPARAT

BLOCK - valve (Order 1971432C1)

1шт.

23

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.
