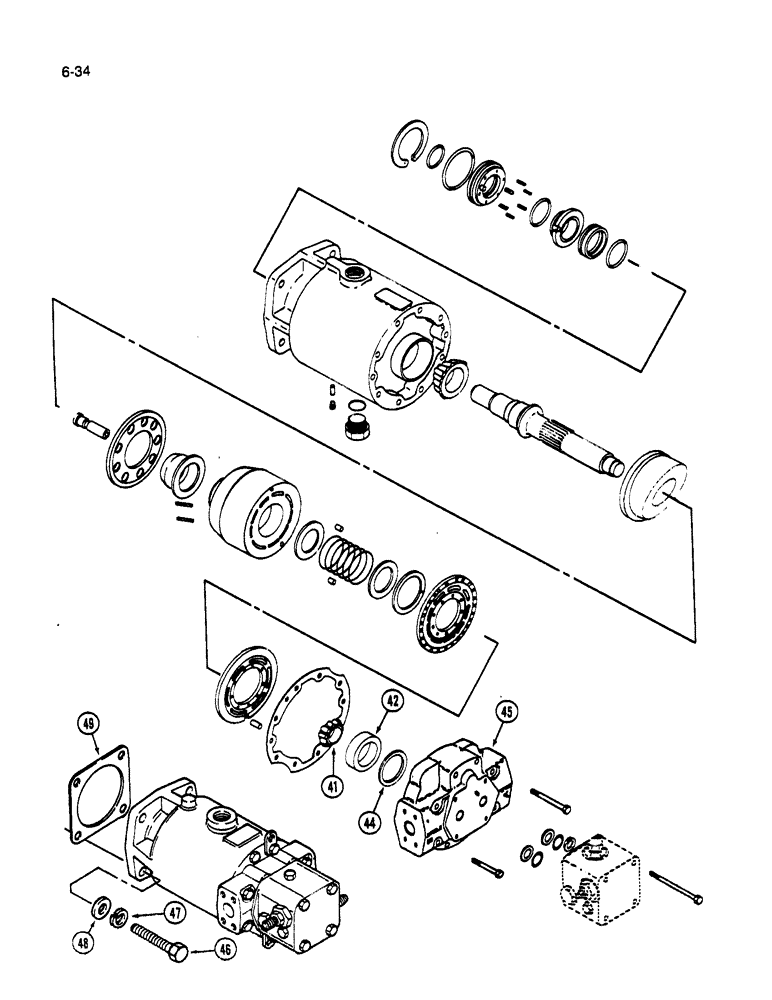

Запчасти Case IH 1640 (6-34) - HYDROSTATIC MOTOR, (CONT) (03) - POWER TRAIN

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, continued, Includes: Ref. 41 - 49 and 3 - 40 on Fig. 6-32

1шт.

41

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

CONE - output shaft bearing, 5/8 inch ID

1шт.

42

140759C1

BEARING CUP

CUP - output shaft bearing, 2-1/4 inch O.D.

1шт.

44

140760C91

SHIM KIT

KIT - bearing shim, Includes: Ref. shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

45

NSS

NOT SOLD SEPARAT

COVER - end (Order 1255344C92)

1шт.

46

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

48

283856C1

WASHER

- flat, 17/32 x 1 x 5/64 inch

4шт.

49

166506C1

GASKET,0.81mm Thk

- mounting

1шт.
