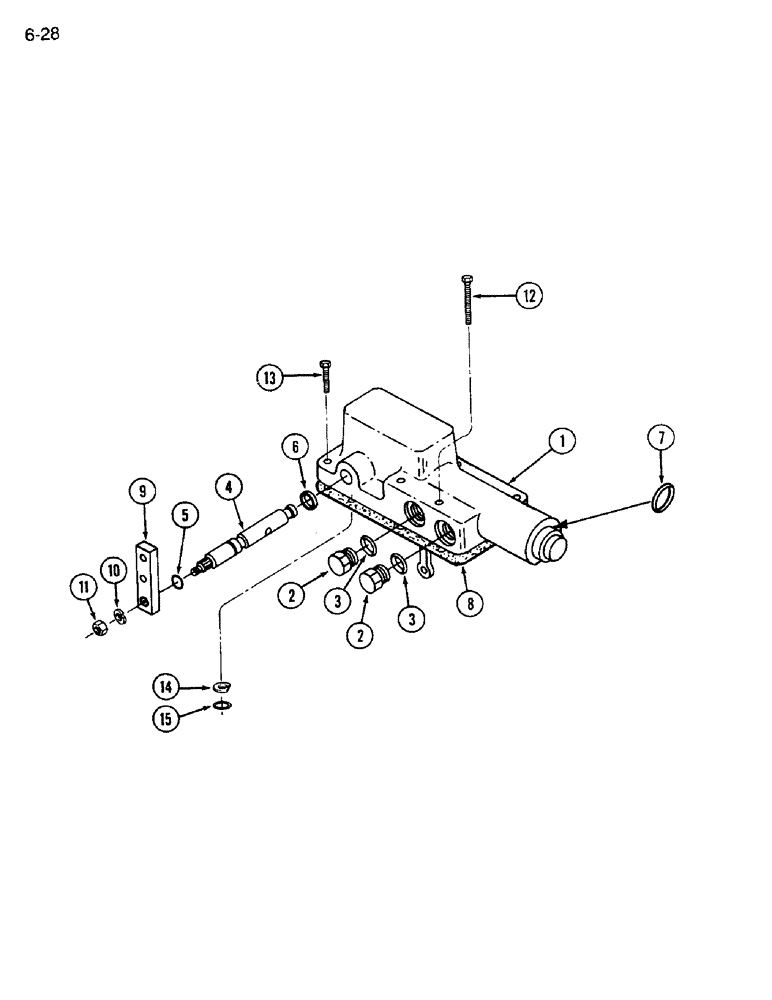

Запчасти Case IH 1640 (6-28) - HYDROSTATIC PUMP, CONTROL VALVE (03) - POWER TRAIN

133755C94

VALVE

- pump control

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order 133755C94)

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - body (Order 133755C94)

1шт.

4

1978048C2

SHAFT

- control valve (Replaces 1255148C1), Includes: Ref. 5

1шт.

Order C2. New shaft includes gasket and dust seal, which are NSS. See figure note.

1шт.

5

355967R1

O-RING,0.364" ID x 0.003" Width

- 1/2 x 3/8 x 1/16 inch (Replaces 359158R1)

1шт.

6

1267111C1

RING,11.18mm ID x 12.7mm OD x 1.78mm Thk

SEAL - shaft (If equipped)

1шт.

7

80269C1

O-RING KIT

O-RING -5/8 x 3/4 x 1/16inch

1шт.

133756C1

GASKET

- control valve

1шт.

9

404782R2

PLATE

- control valve shaft

1шт.

10

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - lock, 5/16 inch

1шт.

11

124824

NUT,Hex, 5/16" - 18

- hex jam, 5/16 inch NC

1шт.

12

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

- hex, 5/16 NC x 1-3/4 inch

2шт.

13

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

1272750C1

ORIFICE

- control valve

1шт.

15

92647C1

O-RING,7.52mm ID x 0.574" OD x 3.53mm

- control valve vent retainer

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.
