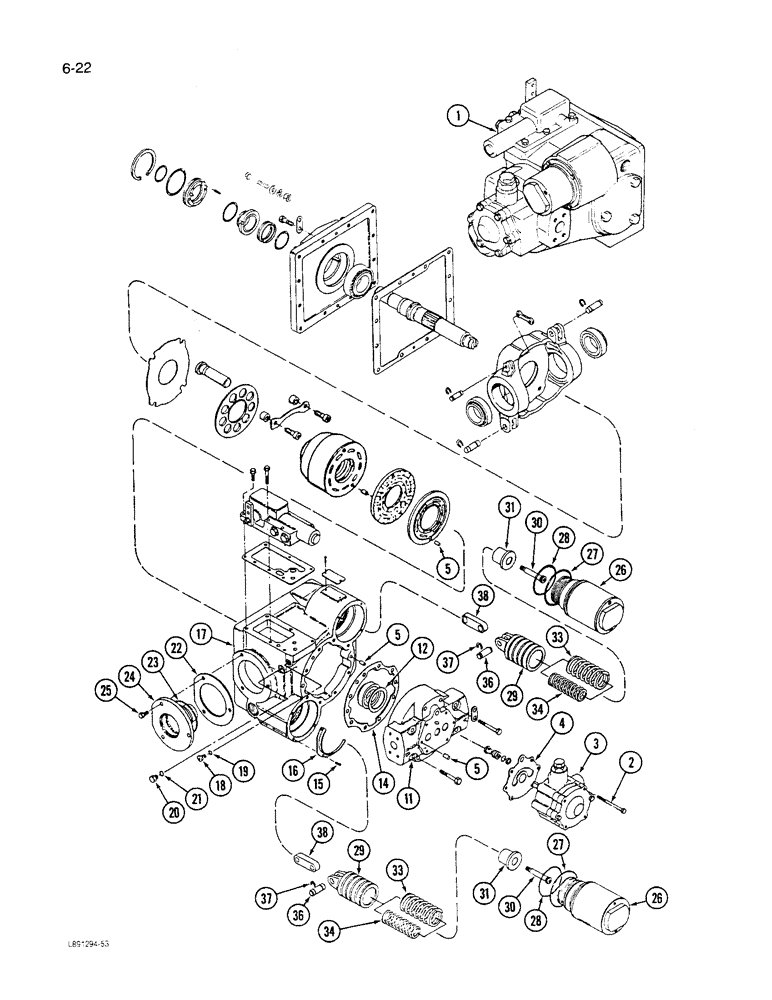

Запчасти Case IH 1640 (6-22) - HYDROSTATIC PUMP (03) - POWER TRAIN

1958072C1

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, new, Includes: Ref. 2 - 38, 39 - 93 on fig. 6-24 and 94 - 99 on Fig. 6-26

1шт.

1958073C1

REMAN-HYDROSTAT PUMP

Pump Assembly - hydrostatic, remanufactured, Includes: Ref. 2 - 38, 39 - 93 on fig. 6-24 and 94 - 99 on Fig. 6-26

1шт.

1958074C1

CORE-HYDROSTAT PUMP

Return Number - use this part number to return pump core for credit, Includes: Ref. 2 - 38, 39 - 93 on fig. 6-24 and 94 - 99 on Fig. 6-26

1шт.

Part number stamped on part.

1шт.

2

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

4шт.

3

REF

INSTRUCTION

PUMP - charge (See Figure 6-30)

1шт.

4

133760C2

GASKET

- charge pump

1шт.

5

140754C1

PIN

- dowel, 5/16 x 5/8 inch

5шт.

11

NSS

NOT SOLD SEPARAT

COVER - end pump (Order assembly)

1шт.

12

140783C91

PACKAGE

KIT - shim, end cover

1шт.

14

140756C2

GASKET

- end cover

1шт.

15

28144R1

HEX SOC SCREW,#8 - 32 x 3/8"

SCREW, Hex Soc Hd, #8-32 x 3/8"

6шт.

16

140774C1

RETAINER

- servo piston

2шт.

17

NSS

NOT SOLD SEPARAT

HOUSING PUMP - (Order assembly)

1шт.

18

1288962C1

PLUG

- hex socket, Includes: Ref. 19

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

9410356

PLUG

- 1/4 inch straight thread o-ring boss

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

142386C91

SHIM KIT

- trunnion bearing, Includes shims

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch

6шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch

4шт.

23

22409R1

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

-231, 70 Duro, 2.609" ID x .139" Thk, trunnion

2шт.

24

NSS

NOT SOLD SEPARAT

TRUNNION

2шт.

25

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

26

140773C1

KIT

SLEEVE - servo

2шт.

27

383018R1

O-RING,2.675" ID x 0.103" Width

-147, 90 Duro, 2.675" ID x .103" Thk, servo sleeve

2шт.

28

22280R1

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

-143, 90 Duro, 2.425" ID x .103" Thk, end

2шт.

29

1980166C1

PISTON

- servo, Includes: Ref. 30 - 38

2шт.

30

NSS

NOT SOLD SEPARAT

SCREW - hex socket

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - servo spring

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - servo, heavy

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - servo, light

1шт.

36

140766C1

PIN,14.22mm OD x 39.12mm L

-link

1шт.

37

28145R1

SNAP RING,#56, Ext

Ring, Snap, , link #56, Ext

2шт.

38

NSS

NOT SOLD SEPARAT

LINK - servo

1шт.
