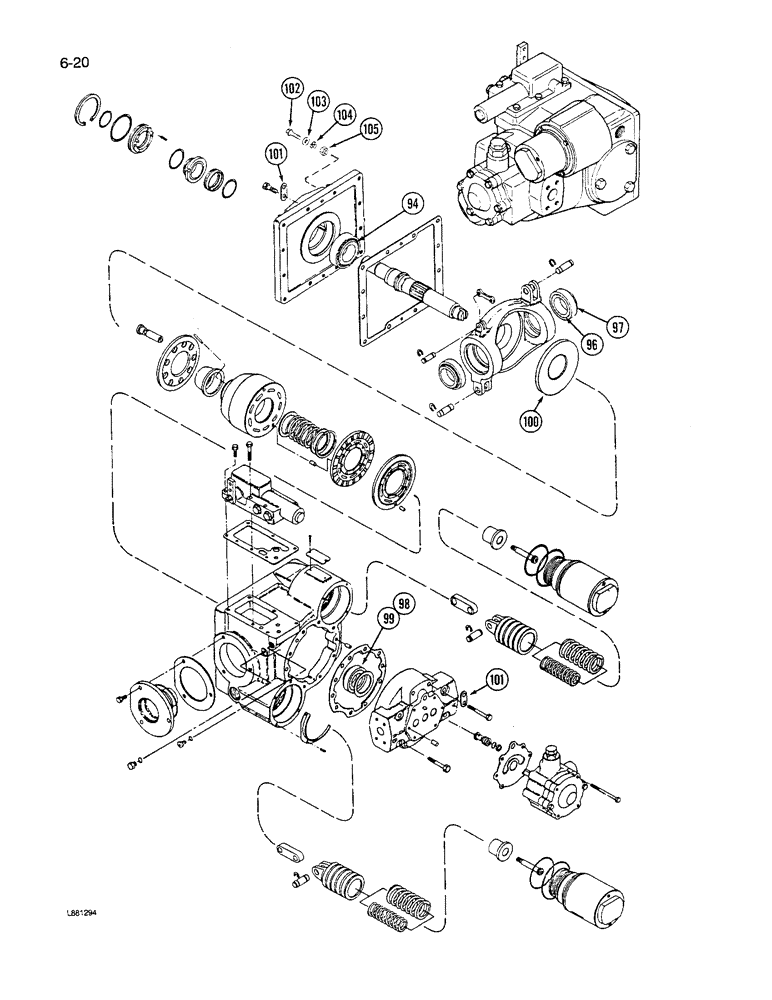

Запчасти Case IH 1640 (6-20) - HYDROSTATIC PUMP, (CONT) (03) - POWER TRAIN

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, continued, Includes: Ref. 94 - 105, 2 - 41 on Fig. 6-16 and 43 - 93 on Fig. 6-18

1шт.

94

396089R91

BEARING ASSY,25.4mm ID x 59.53mm OD x 23.37mm W

- input shaft, 1-3/4 inch ID

1шт.

96

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

CONE - trunnion bearing, 1-25/32 inch ID

2шт.

97

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - trunnion bearing, 2-57/64 inch O.D.

2шт.

98

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

CONE - input shaft bearing, 1-3/16 inch ID

1шт.

99

ST987

BEARING CUP

CUP - input shaft bearing, 2-17/32 inch O.D.

1шт.

100

80369C1

PLATE

- thrust

1шт.

101

NSS

NOT SOLD SEPARAT

STRAP - shipping

2шт.

102

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

4шт.

103

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

104

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

4шт.

105

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
