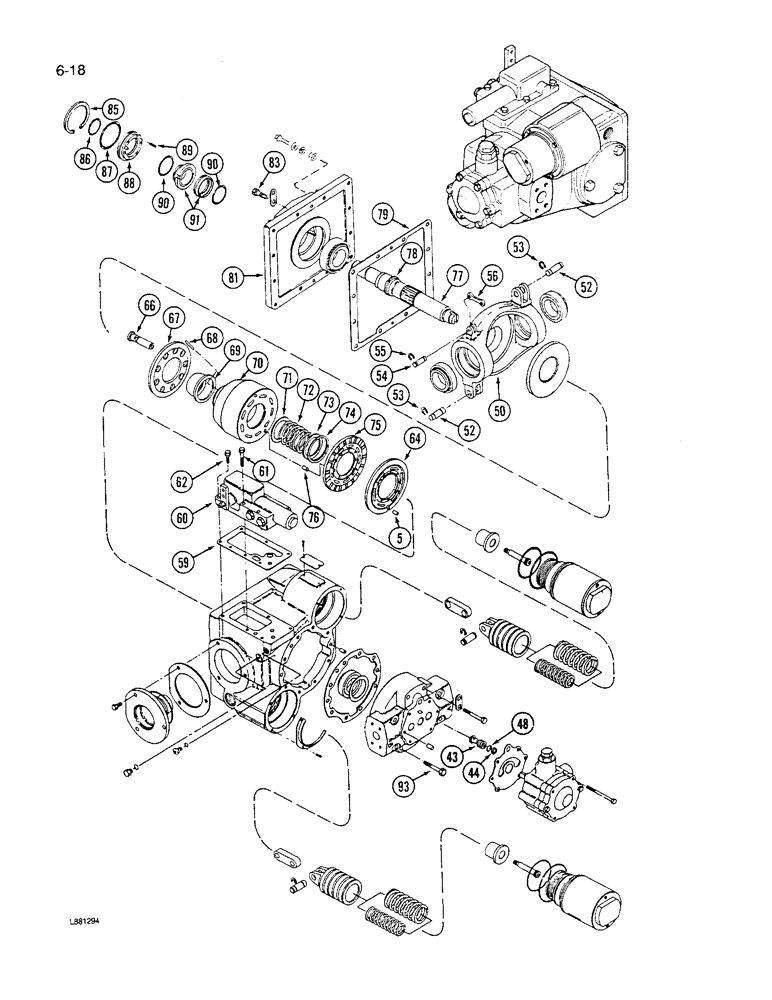

Запчасти Case IH 1640 (6-18) - HYDROSTATIC PUMP, (CONT) (03) - POWER TRAIN

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, continued, , Includes: Ref. 43 - 93 on Fig. 6-18 and 94 - 105 on Fig. 6-20

1шт.

43

140769C1

CHECK VALVE

VALVE - check

1шт.

44

140770C1

RING

- chcck valve

1шт.

48

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- check valve, 9/16 x 3/4 x 3/32 inch

2шт.

50

80364C1

HOUSING

PLATE - swash

1шт.

52

140766C1

PIN,14.22mm OD x 39.12mm L

- servo linkage

2шт.

53

28145R1

SNAP RING,#56, Ext

Ring, Snap, , servo linkage pin #56, Ext

4шт.

54

140765C1

PIN

- link, control valve

1шт.

55

A7111

SNAP RING,#25, Ext

Ring, Snap, , control valve link pin #25, Ext

2шт.

56

142387C1

PIPE FITTING

LINK - connecting, control valve

1шт.

59

133756C1

GASKET

- control valve

1шт.

60

REF

INSTRUCTION

VALVE - control (See Figure 6-28)

1шт.

61

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

- hex, 5/16 NC x 1-3/4 inch

2шт.

62

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

64

1255222C1

PLATE

- pump valve

1шт.

140777C91

KIT

- rotating group, Includes: Ref. 66 - 76

1шт.

66

140778C1

PISTON

- cylinder block

9шт.

67

NSS

NOT SOLD SEPARAT

PLATE - retaincr

1шт.

68

140779C1

PIN

- dowel, pre-load

6шт.

69

NSS

NOT SOLD SEPARAT

GUIDE - retainer plate

1шт.

70

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

71

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

72

NSS

NOT SOLD SEPARAT

SPRING - cylinder barrel

1шт.

73

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

74

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

75

140780C1

BEARING WASHER

- bearing

1шт.

76

140754C1

PIN

- bearing plate dowel

2шт.

77

1980134C1

SHAFT

- input (Replaces 142411C2), Includes: Ref. 78

1шт.

78

NSS

NOT SOLD SEPARAT

RING - snap (142400C2)

1шт.

79

140784C2

GASKET

- mounting flange

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting (Order assembly)

1шт.

83

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

- hex, 7/16 NC x 1-1/4 inch

12шт.

142518C92

PACKAGE

SEAL ASSEMBLY - shaft, Includes: Ref. 85 - 91

1шт.

85

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

86

S113612

O-RING

- shaft, 1-3/8 x 1-1/2 x 1/16 inch

1шт.

87

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- shaft, 2-9/16 x 2-3/4 x 3/32 inch

1шт.

88

NSS

NOT SOLD SEPARAT

RETAINER - scal (Order 142518C92)

1шт.

89

NSS

NOT SOLD SEPARAT

SPRING - shaft seal (Order 142518C92)

6шт.

90

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- shaft, 1-11/16 x 1-7/8 x 3/32 inch

2шт.

91

NSS

NOT SOLD SEPARAT

SEAL - shaft (Order 142518C92)

1шт.

93

203762R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

- hex, 7/16 NC x 2 inch

2шт.
