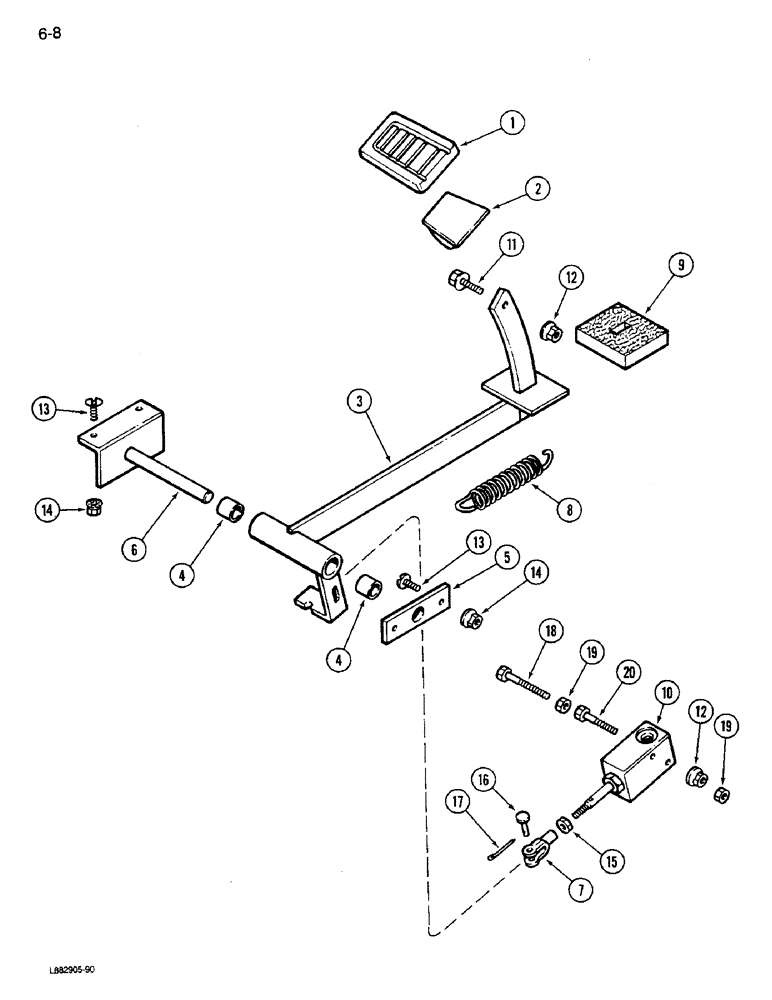

Запчасти Case IH 1640 (6-08) - FOOT-N-INCH PEDAL (03) - POWER TRAIN

1

863426R1

PAD

- pedal

1шт.

2

163425C1

PEDAL

- Foot-N-Inch

1шт.

3

1321960C92

SUPPORT

ASSEMBLY - pedal, Includes: Ref. 4

1шт.

4

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- support assembly

2шт.

5

1281794C1

PLATE

BAR - pivot shaft support

1шт.

6

1281816C3

SUPPORT

- pivot shaft

1шт.

7

144242

CLEVIS

- adjustable, 5/16 inch NF x 2-1/4 inch

1шт.

8

398763R2

SPRING

- pcdal return

1шт.

9

1321935C1

SEAL

- pedal

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - Foot-N-Inch (See Figure 6-12)

1шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

13

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

4шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

15

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

16

16616R1

CLEVIS PIN,5/16" x .940"

PIN - clevis, 5/16 x 15/16 inch

1шт.

17

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 3/4 inch

1шт.

18

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

19

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.

20

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.
