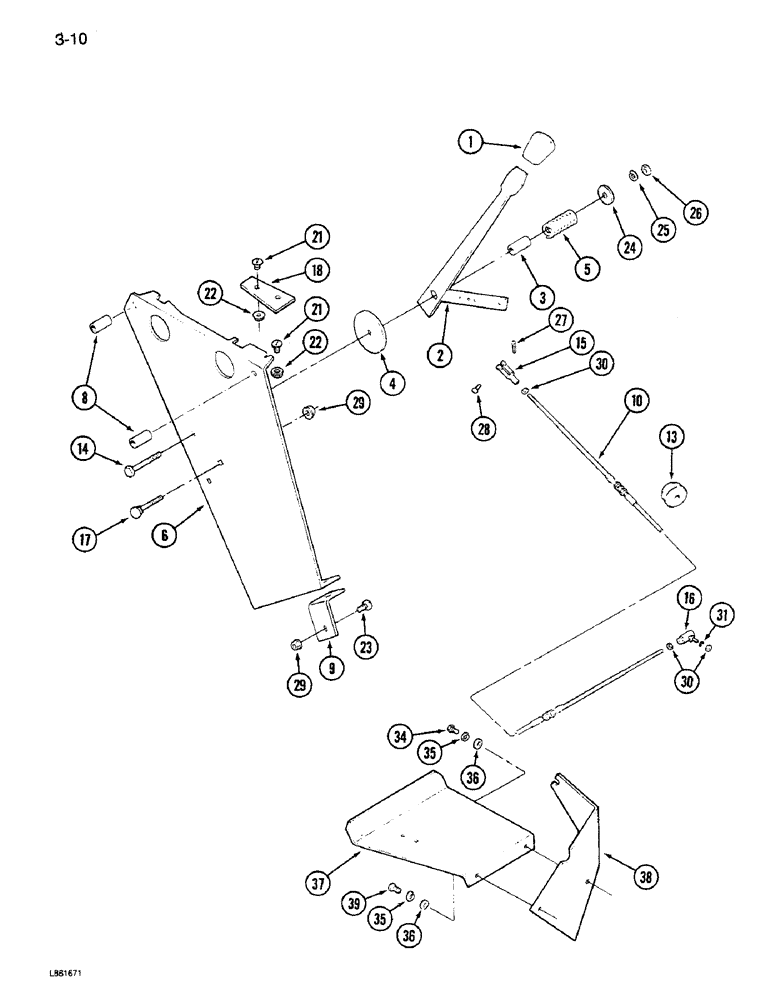

Запчасти Case IH 1640 (3-10) - THROTTLE CONTROLS (02) - FUEL SYSTEM

1

1259760C1

BALL KNOB

KNOB - throttle lever (Replaces 120197C2)

1шт.

2

1301183C94

LEVER ASSY.

LEVER ASSEMBLY - throttle control

1шт.

3

154397C1

SPACER,5/8" Tube x 1 1/4"

- 5/8 x 1-1/4 inch tube

1шт.

4

941133C1

WASHER

- throttle lever

1шт.

5

PO22

SPRING

- throttle control lever

1шт.

6

1329710C2

SUPPORT

- throttle control

1шт.

8

SA10227

SPACER,3/8" Pipe x 1 1/8"

- 3/8 x 1-1/8 inch pipe

2шт.

9

1301242C1

BRACKET

ANGLE - throttle support

1шт.

10

1329389C1

CABLE

ASSEMBLY - throttle (Replaces 196506C1)

1шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- throttle cable grain tank

2шт.

14

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

15

117824

YOKE

CLEVIS - No. 10-32 x 1-9/16 inch

1шт.

16

19725R1

BALL JOINT

JOINT - ball, No. 10, Type AL

1шт.

17

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 1-3/4 inch, Grade 1

2шт.

18

1329861C1

PLATE

- throttle control (North America only)

1шт.

21

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

3шт.

22

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

3шт.

23

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 x 3/4 inch

2шт.

24

614452R1

WASHER

- 13/32 x 1-1/4 x 3/32 inch

1шт.

25

492-11038

LOCK WASHER,3/8"

1шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

27

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

28

20155R1

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch

1шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

4шт.

30

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

31

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

34

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

36

25709R1

WASHER

- 13/32 x 13/16 x 3/32 inch

2шт.

37

183777C2

SUPPORT

- throttle cable rear shield

1шт.

38

187534C2

SUPPORT

- throttle cable rear bracket

1шт.

39

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.
