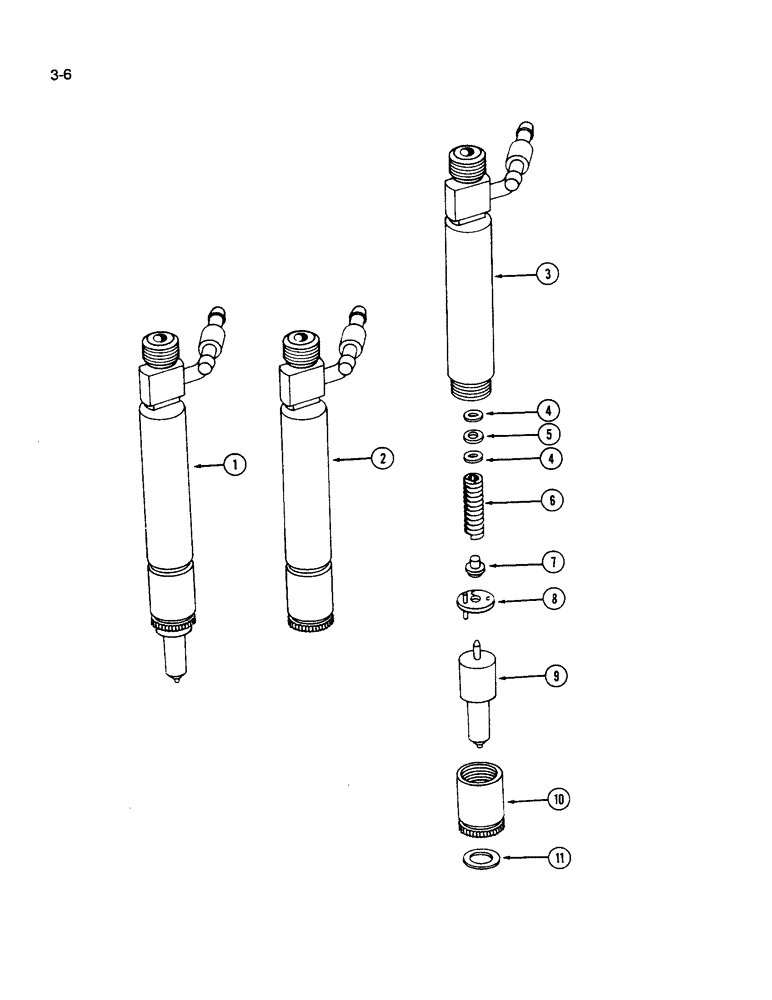

Запчасти Case IH 1640 (3-06) - INJECTION NOZZLE, D466 ENGINE (02) - FUEL SYSTEM

1

682654C91

NOZZLE CAP

NOZZLE ASSEMBLY - injection, new, Includes: Ref. 2 - 11

6шт.

1

749039C91

REMAN-FUEL INJECTOR

NOZZLE ASSEMBLY - injection, remanufactured , Includes: Ref. 2 - 11

6шт.

1

1934151C1

CORE-FUEL INJECTOR

Return Number, injection nozzle

6шт.

2

1802395C91

HOLDER

HOLDER ASSEMBLY - injection nozzle, Includes: Ref. 3 - 8

1шт.

3

680413C1

BODY

BODY - nozzle holder

6шт.

4

680414C1

SPACER

SPACER - nozzle

12шт.

5

680415C1

SPACER

SPACER - spring adjusting 0.002 inch

1шт.

5

680416C1

SPACER

SPACER - spring adjusting 0.007 inch (Not included in 1802395C91 - order separate)

1шт.

5

680418C1

SPACER

SPACER - spring adjusting 0.010 inch (Not included in 1802395C91 - order separate)

1шт.

5

680419C1

SPACER

SPACER - spring adjusting 0.025 inch (Not included in 1802395C91 - order separate)

1шт.

5

680420C1

SPACER

SPACER - spring adjusting 0.375 inch (Not included in 1802395C91 - order separate)

1шт.

5

680421C1

SPACER

SPACER - spring adjusting 0.028 inch (Not included in 1802395C91 - order separate)

1шт.

5

680422C1

SPACER

SPACER - spring adjusting 0.030 inch (Not included in 1802395C91 - order separate)

1шт.

5

680423C1

SPACER

SPACER - spring adjusting 0.035 inch (Not included in 1802395C91 - order separate)

1шт.

6

680424C1

SPRING

SPRING - pressure adjusting

1шт.

7

680433C1

GUIDE

GUIDE - spring seat

1шт.

8

680434C1

SPACER

SPACER - valve stop

1шт.

9

682960C1

NOZZLE CAP

NOZZLE TIP ASSEMBLY, Includes: Ref. 10

1шт.

10

680435C1

NUT

NUT - nozzle cap

1шт.

11

675477C1

GASKET

GASKET - nozzle

1шт.
