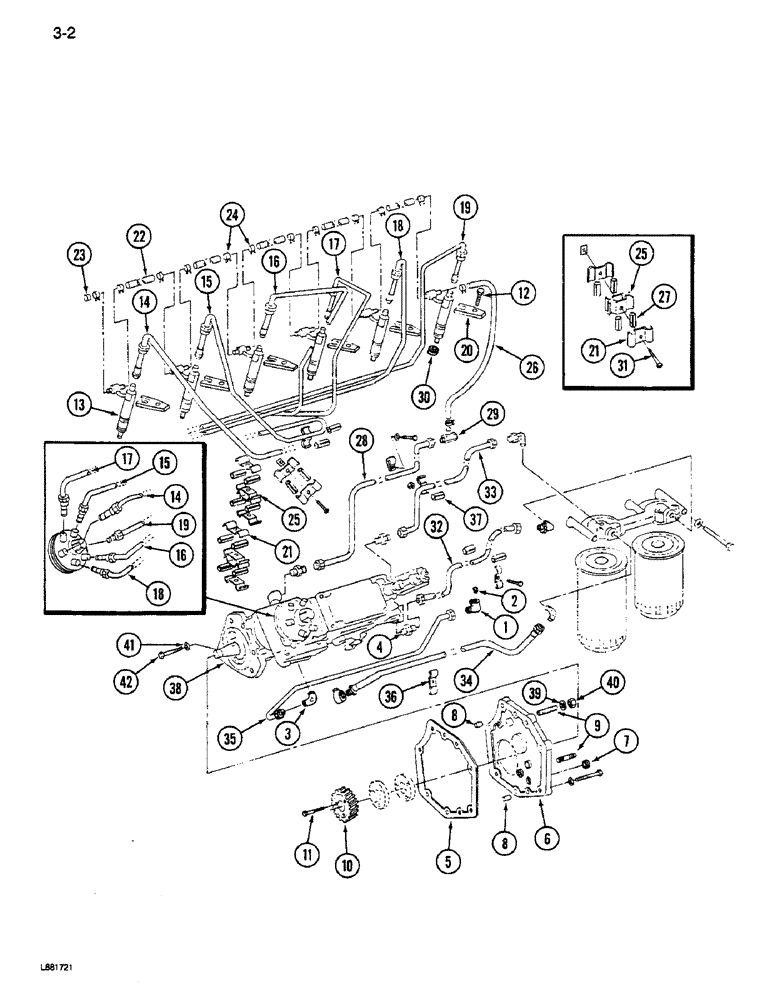

Запчасти Case IH 1640 (3-02) - FUEL INJECTION SYSTEM, D466 ENGINE (02) - FUEL SYSTEM

1

686839C1

ELBOW

- flex side outlet

1шт.

2

444613

BEARING HOUSING

- hex head pipe, 1/8-27 inch

1шт.

3

606296C1

90 ELBOW

- flex lube oil inlet

1шт.

4

606819C1

CONNECTOR, ELEC

CONNECTOR - primary pump inlet and outlet

2шт.

5

675609C1

GASKET

- injection pump mounting adapter

1шт.

6

689146C91

ADAPTER

ASSEMBLY - injection pump mounting, Includes: Ref. 7 - 9

1шт.

7

217-470

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - pipe, 3/4-14 inch

1шт.

8

680481C1

PIN

- dowel

2шт.

9

256333R1

STUD

- pump mounting

2шт.

10

676922C2

GEAR

- injection pump, 33 teeth

1шт.

11

27366R1

BOLT,Hex, 5/16" - 24 x 1 1/2", Gr 8

- hex, 5/16 NF x 1-1/2 inch, Grade 8

3шт.

12

691105C1

BOLT

- hex, 5/16 NC x 1-1/16 inch

6шт.

13

REF

INSTRUCTION

NOZZLE ASSEMBLY - injection (See Figure 3-06)

6шт.

14

688851C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE ASSEMBLY - injection, cylinder 1

1шт.

15

688852C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE ASSEMBLY - injection, cylinder 2

1шт.

16

688853C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE ASSEMBLY - injection, cylinder 3

1шт.

17

688854C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE ASSEMBLY - injection, cylinder 4

1шт.

18

688855C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE ASSEMBLY - injection, cylinder 5

1шт.

19

688856C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE ASSEMBLY - injection, cylinder 6

1шт.

20

675479C2

CLAMP

HOLDER - injection nozzle

6шт.

21

673527C1

CLAMP

- fuel tube

8шт.

22

NSS

NOT SOLD SEPARAT

HOSE - fuel return injector to injector, 5 inch (Order 680246C1, Serial Range: cut-length)

5шт.

23

1802452C1

CAP

- fuel return, No. 1 injector

1шт.

24

A180159

CLAMP,10.29mm - 12.32mm

- hose retaining

13шт.

25

673577C1

CLAMP

- duplex

3шт.

26

NSS

NOT SOLD SEPARAT

HOSE - No. 6 injector to leakoff tube, 10 inch (Order 680246C1, Serial Range: cut-length)

1шт.

27

258079C1

GROMMET

- injection tube

16шт.

28

680316C91

TUBE,0.375" OD, 28.88" Length

ASSEMBLY - fuel return

1шт.

29

689382C1

TEE

- fuel leakoff

1шт.

30

682810C1

RING

GROMMET - injection dust cover

6шт.

31

1276056C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW - slotted head 1/4 NC x 1-1/4 inch

3шт.

32

1810375C91

TUBE,0.375" OD

- Primary filter to pump (Replaces 684075C91)

1шт.

33

684077C91

TUBE,0.375" OD, 15.75" Length

ASSEMBLY - primary pump to final filter

1шт.

34

688190C1

HOSE

ASSEMBLY - final filter to injection pump

1шт.

35

688301C91

TUBE

ASSEMBLY - lube oil

1шт.

36

684899C1

CLAMP

- hose

4шт.

37

397483R1

GROMMET

- tube

2шт.

38

1809633C91

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new

1шт.

38

1934214C1

REMAN-INJECTION PUMP

1640 CASE IH AXIAL-FLOW COMBINE (PRIOR TO S/N JJC0034705) (1/86-12/92) Reman For New P/N 1809633C91

1шт.

38

1934215C1

CORE-INJECTION PUMP

Return Number

1шт.

39

25544R1

WASHER,13/32" x 13/16" x .134", HDN

- hardened

2шт.

40

25523R1

NUT,3/8"-24, G8

- hex, 3/8 inch NF, Grade 8

2шт.

41

27326R1

WASHER,.344" x 11/16" x .089", HDN

- hardened

1шт.

42

25232R1

BOLT,Hex, 5/16" - 18 x 2", Gr 8

- hex, 5/16 x 2 inch NC, Grade 8

1шт.
