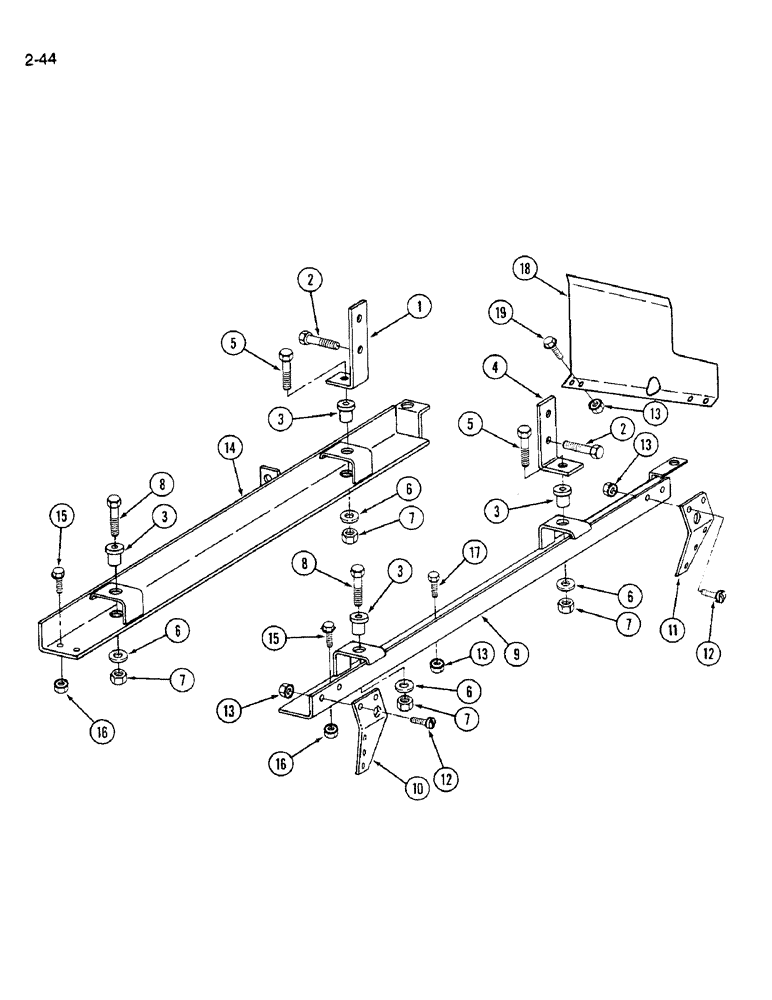

Запчасти Case IH 1640 (2-44) - ENGINE RAILS AND SUPPORTS, D466 ENGINE (01) - ENGINE

1

191365C1

SUPPORT

- engine, front left

1шт.

2

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

2шт.

2

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x4inch

2шт.

3

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine, front and rear

4шт.

4

191364C1

SUPPORT

- engine, front right

1шт.

5

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

6

107813R1

WASHER

- 21/32 x 2-1/2 x 3/16 inch

4шт.

7

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

8

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

9

182957C3

RAIL ASSY.

RAIL ASSEMBLY - engine, right

1шт.

10

182912C3

SUPPORT

- engine rail, left

1шт.

11

182913C3

SUPPORT

- engine rail, right

1шт.

12

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

10шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

22шт.

14

182951C2

RAIL ASSY.

RAIL ASSEMBLY - engine, left

1шт.

15

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- flange, 1/2 NC x 1-1/4 inch

8шт.

16

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

8шт.

17

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- lock, 3/8 NC x 1 inch

8шт.

18

1327681C1

SUPPORT

- air deflector

1шт.

19

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

4шт.
