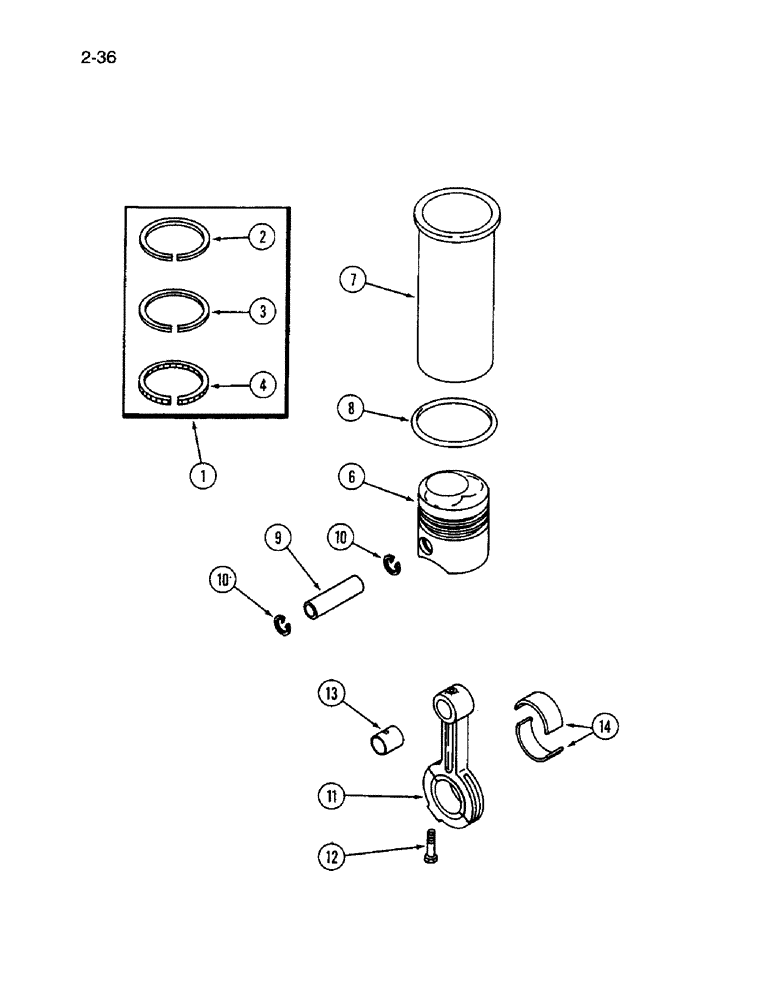

Запчасти Case IH 1640 (2-36) - CONNECTING RODS, PISTONS AND SLEEVES, D466 ENGINE (01) - ENGINE

1

684065C93

RING, PISTON

RING KIT - piston, D466 engine, Includes: Ref. 2 - 4

6шт.

2

NSS

NOT SOLD SEPARAT

RING - compression piston, top groove (Order kit)

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression piston, second groove (Order kit)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil piston, third groove (Order kit)

1шт.

1809579C92

PACKAGE

PISTON AND SLEEVE KIT - engine, Includes: Ref. 6 - 10

6шт.

6

NSS

NOT SOLD SEPARAT

PISTON - engine (Order 1809579C92)

1шт.

7

682720C1

SLEEVE

- cylinder

1шт.

8

680086C1

GASKET KIT

KIT - cylinder sleeve o-ring (consists of 3 o-ring)

1шт.

NSS

NOT SOLD SEPARAT

O-RING - cylinder sleeve

3шт.

9

670675C1

PISTON PIN,41.27mm OD x 89.15mm L

PIN - piston

1шт.

10

326874R1

RETAINER

RING - piston pin retaining

2шт.

11

688923C91

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes: Ref. 12, 13 and connecting rod

6шт.

11

735242C91

REMAN-CONNECTING ROD

Rod Assembly - connecting, remanufactured

6шт.

11

1928155C1

CORE-ROD CONNECTING

Return Part Number

6шт.

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

12

676679C2

BOLT

- connecting rod

2шт.

13

675006C1

BUSHING

- piston pin

1шт.

14

1808059C91

BEARING

ASSEMBLY - connecting rod, 2 halves standard

6шт.

14

1808060C91

BEARING LINER

BEARING ASSEMBLY - connecting rod, 2 halves 0.010 inch undersize

6шт.

14

1808061C91

BEARING LINER

BEARING ASSEMBLY - connecting rod, 2 halves 0.020 inch undersize

6шт.

14

1808062C91

BEARING LINER

BEARING ASSEMBLY - connecting rod, 2 halves 0.030 inch undersize

6шт.

15

680333C92

SHIM KIT

KIT - cylinder sleeve shim

6шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.002 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.004 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.010 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.020 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.032 inch

2шт.
