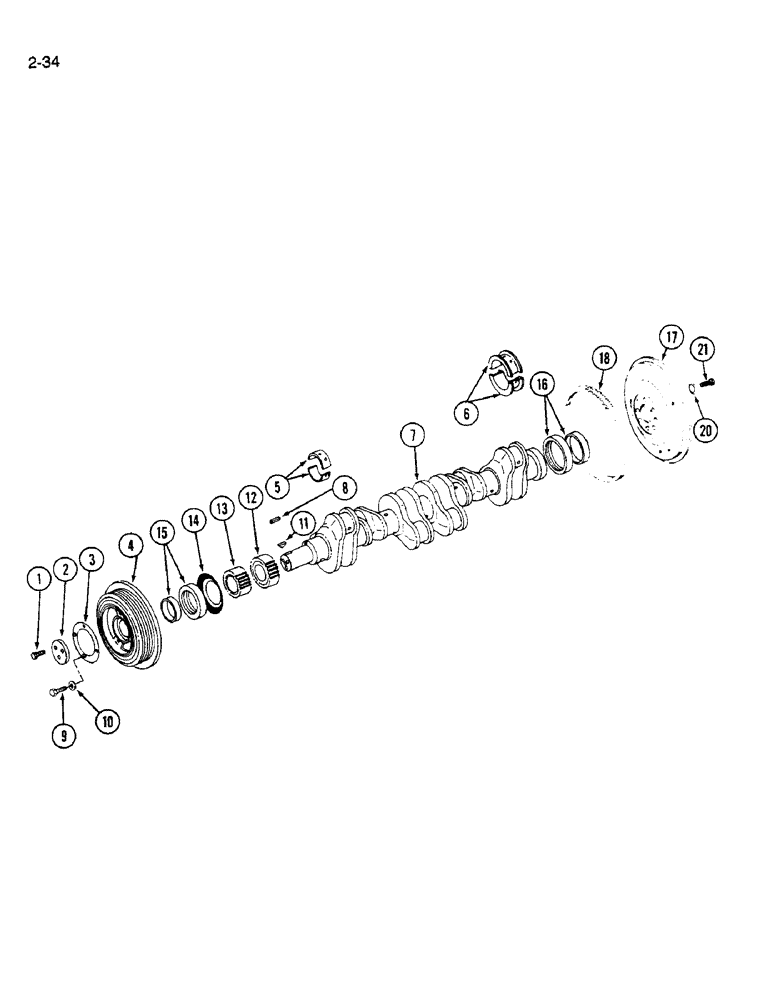

Запчасти Case IH 1640 (2-34) - CRANKSHAFT, FLYWHEEL AND BEARINGS, D466 ENGINE (01) - ENGINE

1

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

3шт.

2

675412C1

PLATE

- damper retaining

1шт.

3

682835C1

PLATE

- vibration damper

1шт.

4

683459C94

PULLEY

DAMPER ASSEMBLY - vibration

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

5

1808069C91

BEARING LINER

BEARING ASSEMBLY - crankshaft main, front and intermediate, 2 halves, standard

6шт.

5

1808070C91

BEARING

ASSEMBLY - crankshaft main, front and intermediate, 2 halves, 0.010 inch undersize

6шт.

5

1808071C91

BEARING

ASSEMBLY - crankshaft main, front and intermediate, 2 halves, 0.020 inch undersize

6шт.

5

1808072C91

BEARING LINER

BEARING ASSEMBLY - crankshaft main, front and intermediate, 2 halves, 0.030 inch undersize

6шт.

6

684579C92

BEARING SET

BEARING ASSEMBLY - crankshaft main, rear, 2 halves, standard

1шт.

6

684582C92

BEARING SET

ASSEMBLY - crankshaft main, rear, 2 halves, 0.010 inch undersize

1шт.

6

687394C2

BEARING LINER

BEARING ASSEMBLY - crankshaft main, rear, 2 halves, 0.020 inch undersize

1шт.

6

684585C92

BEARING SET

BEARING ASSEMBLY - crankshaft main, rear, 2 halves, 0.030 inch undersize

1шт.

7

681319C93

CRANKSHAFT

ASSEMBLY - engine, new, Includes bearing assembly, gear, pin and spline

1шт.

675669C92

CRANKSHAFT

- engine, without bearings

1шт.

749656C92

REMAN-CRANKSHAFT

Crankshaft Assembly - engine, remanufactured

1шт.

1928183C1

CORE-CRANKSHAFT

Return Part Number

1шт.

1808069C91

BEARING LINER

BEARING ASSEMBLY - crankshaft main

6шт.

684579C92

BEARING SET

BEARING ASSEMBLY - crankshaft main rear

1шт.

1808059C91

BEARING

ASSEMBLY - connecting rod

6шт.

675406C1

GEAR

- crankshaft

1шт.

17135R1

LOCK PIN,5/32" x 5/16", Slotted

PIN, 5/32" x 5/16", Slotted

1шт.

675364C1

GEAR

SPLINE - oil pump drive

1шт.

8

17135R1

LOCK PIN,5/32" x 5/16", Slotted

PIN, 5/32" x 5/16", Slotted

1шт.

9

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

10

25544R1

WASHER,13/32" x 13/16" x .134", HDN

- hardened

4шт.

11

691044C1

KEY

- Woodruff, 5/16 x 1 inch

1шт.

12

675406C1

GEAR

- crankshaft, 32 Teeth

1шт.

13

675364C1

GEAR

SPLINE - oil pump drive, 41 Teeth

1шт.

14

687024C1

SEALING WASHER

WASHER - seal

1шт.

15

690437C93

GASKET KIT

KIT - crankshaft front oil seal and wear sleeve, Includes oil seal and wear sleeve

1шт.

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

16

691631C91

KIT

- crankshaft rear oil seal and wear sleeve

1шт.

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

332303R1

SEAL

- seal face plate (Not used this application)

1шт.

NSS

NOT SOLD SEPARAT

DIAGRAM - seal installation

1шт.

17

683399C1

FLYWHEEL

1шт.

18

690252C1

GEAR

- ring (132 teeth)

1шт.

20

685902C1

WASHER

- hardened

8шт.

21

25277R1

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 8

- hex, 1/2 NF x 1-5/8 inch, Grade 8

8шт.
