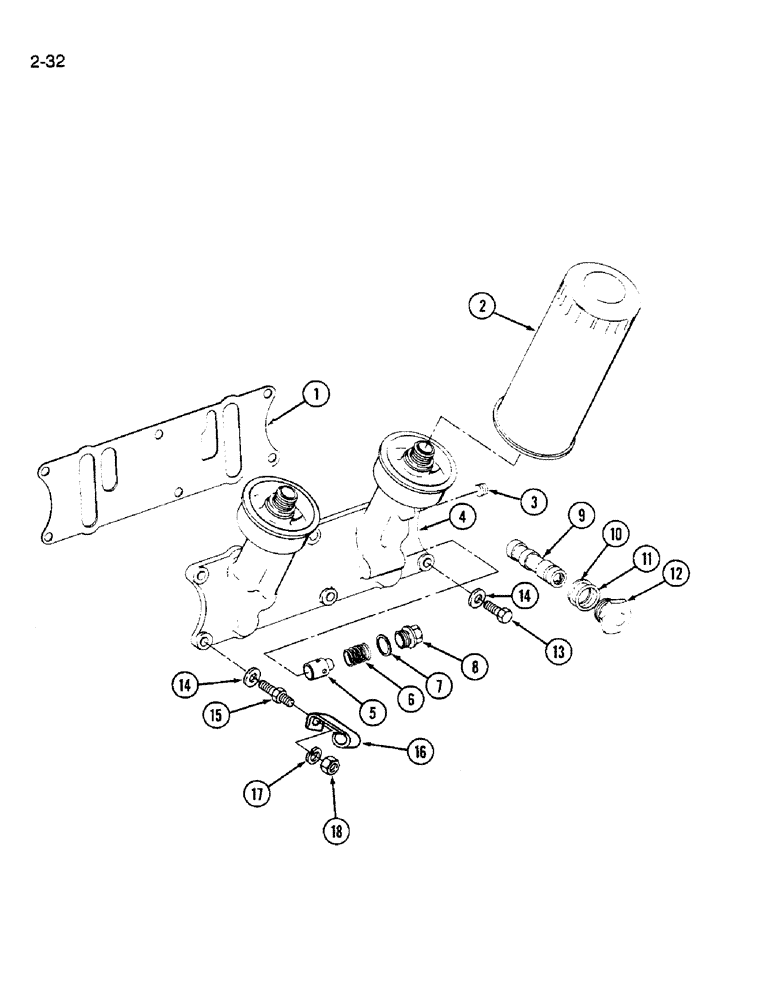

Запчасти Case IH 1640 (2-32) - OIL FILTER, D466 ENGINE (01) - ENGINE

1

675398C1

GASKET

- oil filter base

1шт.

2

A184775

ENGINE OIL FILTER

FILTER ASSEMBLY - lubricating oil, (Replaces 675616C91)

2шт.

3

444655

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - square socket pipe, 1/4-18

1шт.

4

675358C1

BASE

- lubricating oil filter

1шт.

5

601917C1

VALVE

- base

1шт.

6

676137C1

SPRING

- valve

1шт.

7

676136C1

GASKET

- plug

1шт.

8

676135C1

PLUG

- spring retaining

1шт.

680237C93

VALVE

VALVE KIT - regulating, oil pressure, Includes gasket, o-ring, valves, and cap

1шт.

261624R1

GASKET

- regulating valve (Not Shown)

1шт.

349055R2

RING

O-RING - sealing (Not Shown)

1шт.

NSS

NOT SOLD SEPARAT

VALVE - regulating (not Shown

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - oil pressure regulating (Order kit 680237C93)

1шт.

10

261624R1

GASKET

- regulator valve cap

1шт.

11

349055R2

RING

O-RING - 13/16 x 1 x 3/32 inch

1шт.

12

675395C1

CAP

- pressure regulating valve

1шт.

13

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- nylok, 3/8 NC x 1-1/4 inch

5шт.

14

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- hardened

6шт.

15

690206C1

STUD,3/8" - 24 x 2 1/4", Grade 8

BOLT - oil filter base stud, 3/8-16 x 3/8-24

1шт.

16

527434R1

CLIP

- cable harness

1шт.

18

25523R1

NUT,3/8"-24, G8

- hex, 3/8 inch NF, Grade 8

1шт.
