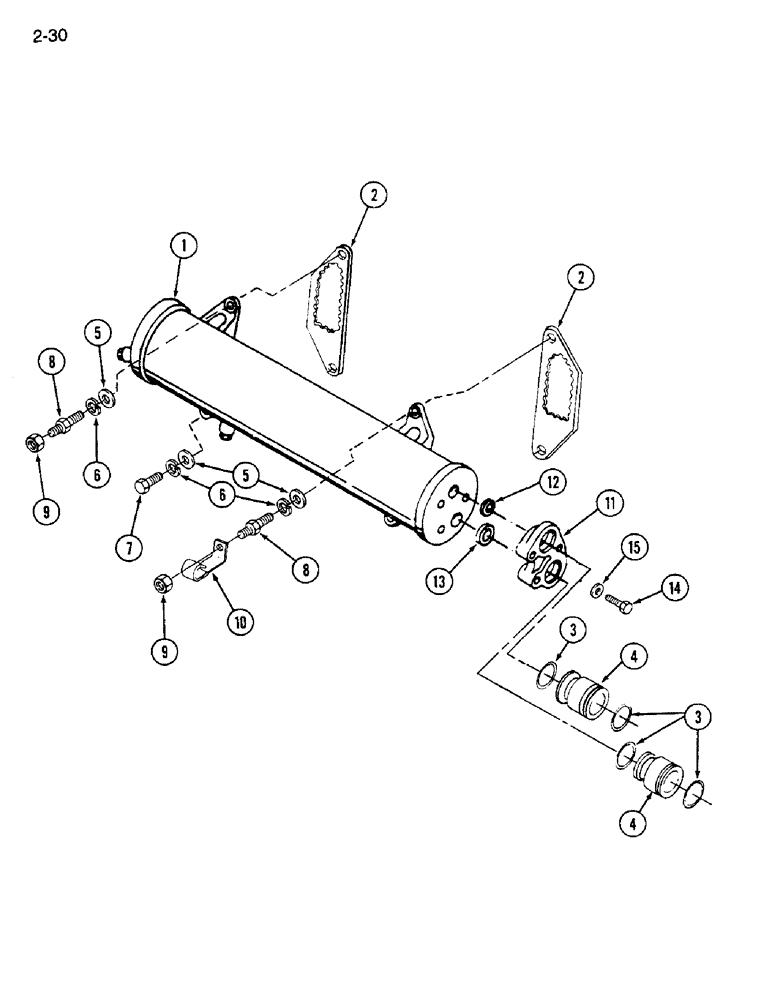

Запчасти Case IH 1640 (2-30) - OIL COOLER, D466 ENGINE (01) - ENGINE

735260C91

REMAN-OIL COOLER

Remanufactured

1шт.

1

1810171C2

COOLER, OIL

COOLER ASSEMBLY - engine oil, new (Replaces 690884C1)

1шт.

Ref #1 - 690885C2 Cooler for older serial number units. Adapter Plate Ref #11 is part of the Cooler.

1шт.

735260C92

REMAN-OIL COOLER

1640 - CASE IH AXIAL-FLOW COMBINE (PRIOR TO S/N JJC0034705) (NORTH AMERICA) - 1/86-12/92

1шт.

1938223C1

CORE-OIL COOLER

Return Number

1шт.

2

675513C1

OIL SEAL

SEAL - oil cooler mounting

2шт.

3

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-RING - 1-1/4 x 1-1/2 x 1/8 inch

4шт.

4

677110C1

PIPE FITTING

TUBE - cooler to front cover

2шт.

Ref #4 - Optional designs are Seamless 1 1/2" O.D. or with Seam 1 1/4" O.D.

1шт.

5

25896R1

WASHER,13/32" x 13/16" x .09", HDN

WASHER - hardened

4шт.

6

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

7

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

2шт.

8

690206C1

STUD,3/8" - 24 x 2 1/4", Grade 8

STUD - rear upper, 3/8 x 3/8 NC/NF

2шт.

9

25523R1

NUT,3/8"-24, G8

NUT - hex, 3/8 inch NF, Grade 8

2шт.

10

527434R1

CLIP

SPARE PART CLIP - cable harness

1шт.

11

1810568C1

PLATE

SPACER - oil cooler

1шт.

12

21254R1

O-RING,0.487" ID x 0.693" OD x 0.103"

SEAL - 1/2 ID x 3/32 inch wide

1шт.

13

F21003

O-RING,1.237" ID x 1.443" OD

SEAL - 1-1/4 ID x 3/32 inch wide

1шт.

14

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

BOLT - hex, 5/16 x 1-3/4 inch, Grade 8

3шт.

15

27326R1

WASHER,.344" x 11/16" x .089", HDN

WASHER -hardened flat, 11/32 x 11/16 x 3/32 inch

3шт.
