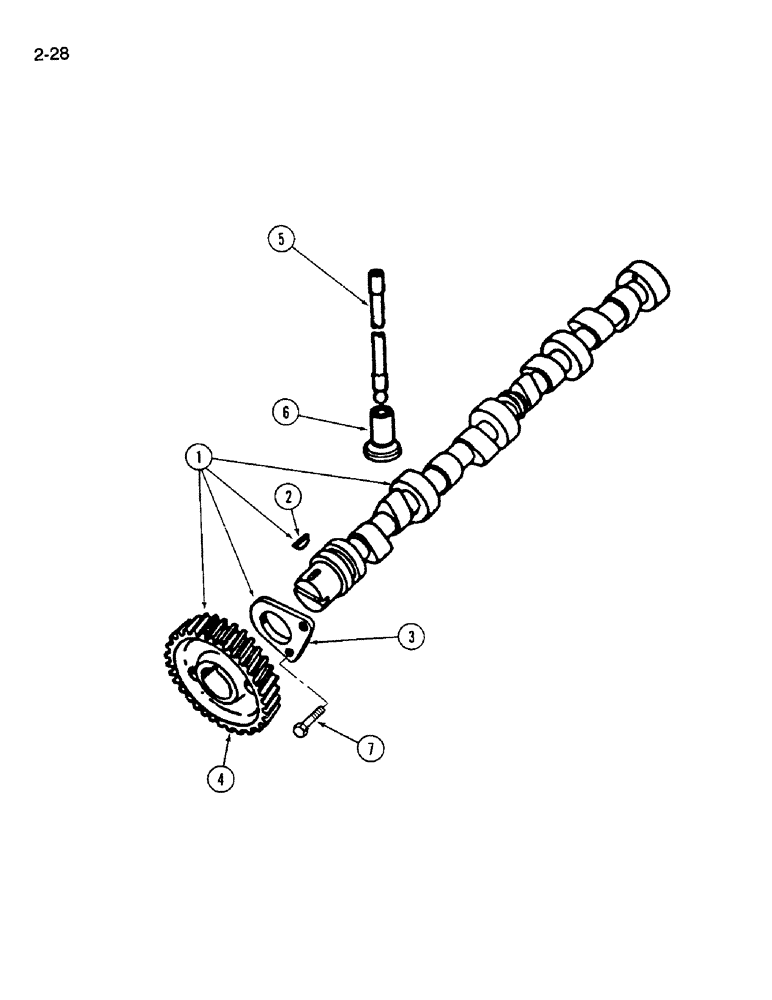

Запчасти Case IH 1640 (2-28) - CAMSHAFT, D466 ENGINE (01) - ENGINE

1

1802339C92

PACKAGE, REPAIR

KIT - camshaft service

1шт.

1802338C91R

REMAN-CAMSHAFT

1640 (PRIOR TO S/N JJC0034705) (1/86-12/92), Reman for new P/N 1802339C92

1шт.

1802338C91C

CORE-CAMSHAFT

Return Number

1шт.

Ref #1 - This kit has Black Phosphate Coating to protect the lobes from corrosion, this wears off after installing.

1шт.

2

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

- Woodruff, 1/4 x 3/4 inch

1шт.

3

676144C1

PLATE

- camshaft thrust

1шт.

Ref #5 - The 1802507C1 is for Special Usage, it does not replace the 675621C1 as stated. TS 83/89D

1шт.

4

675600C1

GEAR

- camshaft

1шт.

5

1802507C1

ROD

- valve push (Replaces 675621C1)

12шт.

6

1802340C1

TAPPET

- valve

12шт.

7

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, Grade 8

2шт.
