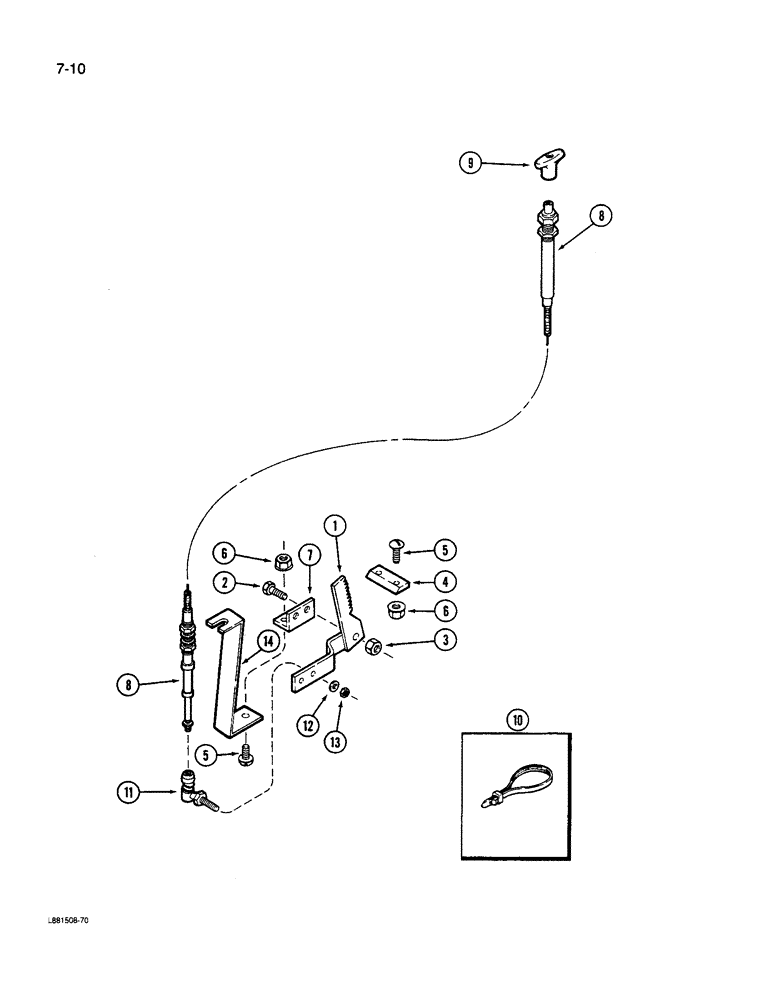

Запчасти Case IH 1640 (7-10) - PARKING BRAKE (5.1) - BRAKES

1

177799C2

SECTOR

ASSEMBLY - parking brake

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

3

131-217

LOCK NUT

NUT - hex prevailing torque, 3/8 inch NC

1шт.

4

177802C1

BAR

- parking brake ratchet

1шт.

5

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

4шт.

6

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

7

177804C2

SUPPORT

- parking brake ratchet

1шт.

8

193292C1

BOWDEN CONTROL

CABLE ASSEMBLY - parking brake, 79 inch, Includes: Ref. 9

1шт.

9

170273C1

HANDLE

- parking brake

1шт.

10

702093C1

CABLE TIE

CLAMP - brake cable

4шт.

11

165288C91

JOINT

- ball

1шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

13

129-121

NUT,1/4"-28, G5

1шт.

14

184314C1

BRACKET

- parking brake cable

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 x 3/4 inch

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.
