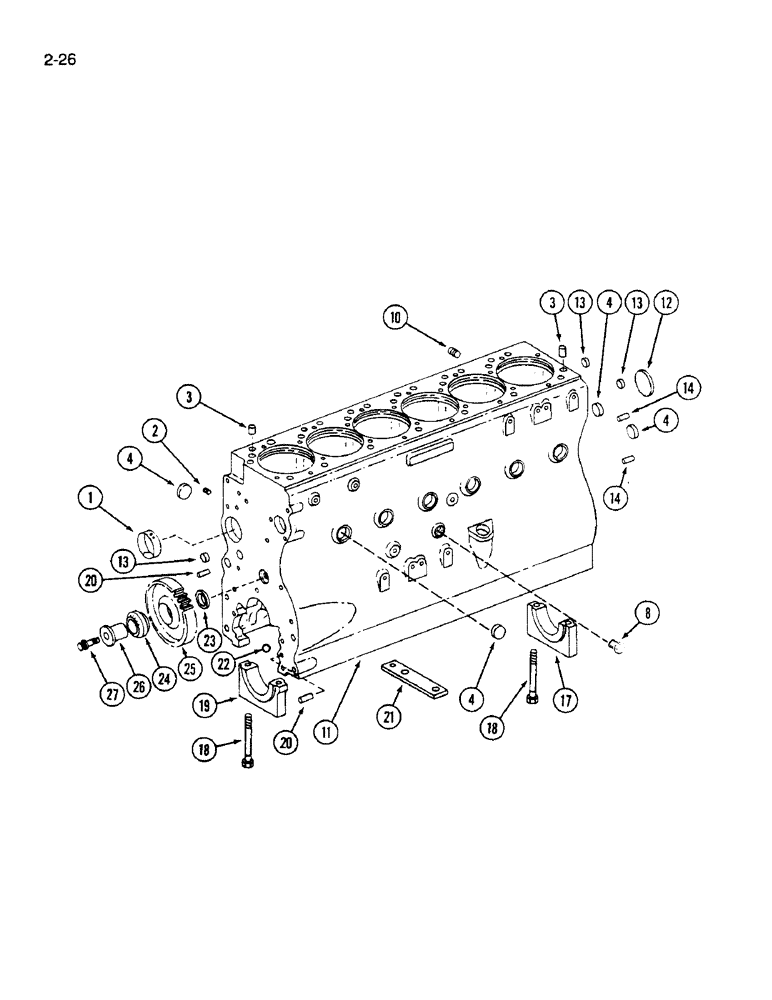

Запчасти Case IH 1640 (2-26) - CYLINDER BLOCK, D466 ENGINE (01) - ENGINE

1

680117C1

SET

KIT - camshaft bearing, Includes: Ref. bearing

1шт.

NSS

NOT SOLD SEPARAT

BEARING - camshaft

4шт.

2

50410DA

PLUG

- hex, socket, 1/8-27

5шт.

3

684902C1

DOWEL,15.3mm ID x 17.78mm OD x 22.23mm L

- bushing

2шт.

4

23623R1

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch

9шт.

8

FO444625

PLUG

- hex head pipe (Drain) 3/8-18

1шт.

10

NLS

NO LONGER SERVICED

- square socket pipe, 3/4-14

2шт.

11

735290C91

CRANKCASE

CYLINDER BLOCK - engine, remanufactured (North America only)

1шт.

11

1802336C93

CRANKCASE

CYLINDER BLOCK - engine, new, Includes block, bearings, ring, caps, bolts, plugs, dowels, balls and nozzles

1шт.

1809687C92

CRANKCASE

BLOCK - cylinder

1шт.

NSS

NOT SOLD SEPARAT

BEARING - camshaft

4шт.

682444C1

RING

- camshaft seal rear

1шт.

NSS

NOT SOLD SEPARAT

CAP - main bearing

7шт.

1802582C1

BOLT

- main bearing cap

14шт.

23623R1

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch

9шт.

684902C1

DOWEL,15.3mm ID x 17.78mm OD x 22.23mm L

- bushing

2шт.

680484C1

DOWEL

- 1/2 x 1-1/8 inch

2шт.

680483C1

PIN

DOWEL - 3/8 x 7/8 inch

2шт.

50410DA

PLUG

- hex socket, 1/8-27

5шт.

Under Ref #11, 17013R1 subs to 211-1013

1шт.

327412R1

PLUG,Cup, 13/16"

- cup, 13/16 inch

3шт.

211-1013

BALL,10.31mm OD, Gr 24

- chrome, 13/32 inch (Replaced 17013R1)

1шт.

FOR444613

PLUG

- hex head pipe, 1/8-27

1шт.

444625

PLUG

- hex head pipe (Drain) 3/8-18

1шт.

211-206

BALL,1/4" Dia

- chrome, 1/4 inch diameter

12шт.

273469

PLUG

- square socket pipe, 3/4-14

3шт.

343464R1

TUBE,0.049" ID, 1" OD, 2" Length

NOZZLE - piston coolant jet (Not used this application)

12шт.

Ref #11 - 687203C95 Short Block New 466DT

1шт.

12

682444C1

RING

- camshaft seal rear

1шт.

13

327412R1

PLUG,Cup, 13/16"

- cup, 13/16 inch

3шт.

14

680484C1

DOWEL

- 1/2 x 1-1/8 inch

2шт.

17

680243C1

HOUSING

CAP - main bearing rear

1шт.

18

1802582C1

BOLT

- main bearing cap

14шт.

19

680241C1

CAP

- main bearing front and intermediate

6шт.

20

680483C1

PIN

DOWEL - 3/8 x 7/8 inch

2шт.

21

673761C1

BRACKET

- suction pipe support

1шт.

22

211-206

BALL,1/4" Dia

- chrome, 1/4 inch diameter

12шт.

23

675767C1

SPACER

- idler gear

1шт.

24

327185R91

BEARING ASSY,31.75mm ID x 59.16mm OD x 36.75mm W

- idler gear

1шт.

25

675764C1

GEAR

- idler (77 teeth)

1шт.

26

675765C1

SHAFT

- idler gear stub

1шт.

27

26044R1

12 PT SCREW,Flg, 1/2" - 13 x 2"

BOLT - idler gear shaft

1шт.

687002C1

INSERT

- cylinder block (For servicing the lower cylinder sleeve pilot bore)

1шт.
