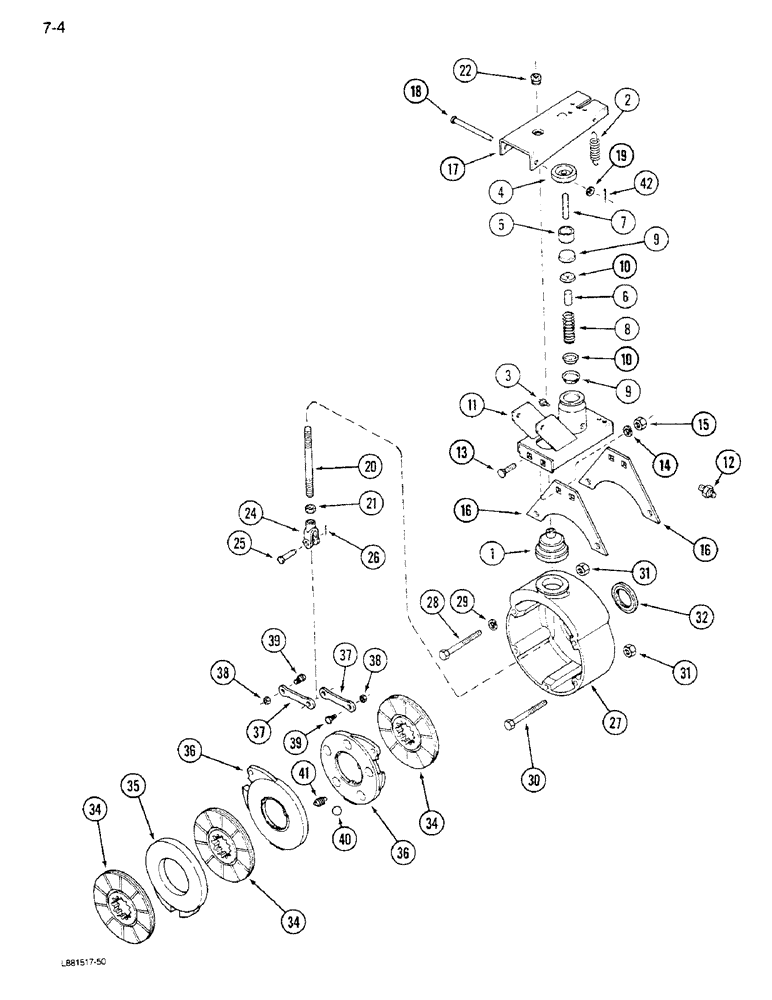

Запчасти Case IH 1640 (7-04) - MASTER BRAKES (5.1) - BRAKES

1

381699R1

BOOT

- brake housing

2шт.

2

168567C1

SPRING

- brake lever return

2шт.

1329741C2

SUPPORT

ASSEMBLY - cylinder, left, Includes Ref. 3 - 11

1шт.

1329742C2

SUPPORT

ASSEMBLY - cylinder, right, Includes: Ref. 3 - 12

1шт.

3

660901R1

VALVE

- bleeder

1шт.

4

662620R1

COVER

BOOT - brake cylinder

1шт.

Part of Brake Cylinder Kit, P/N 1288942C92

1шт.

5

662616R1

PISTON

- brake cylinder

1шт.

Part of Brake Cylinder Kit, P/N 1288942C92

1шт.

6

184304C1

SPACER

- brake cylinder piston

1шт.

7

662618R2

PIN

PLUNGER - brake cylinder piston

1шт.

8

84940C1

SPRING

- brake cylinder piston

1шт.

Part of Brake Cylinder Kit, P/N 1288942C92

1шт.

9

51906H

CUP

- wheel cylinder, 1-1/4 inch diameter

2шт.

Part of Brake Cylinder Kit, P/N 1288942C92

1шт.

10

85105C1

EXPANDER

- wheel cylinder cup

2шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - brake cylinder, left

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - brake cylinder, right

1шт.

12

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, 1/4 inch tube

1шт.

1288942C92

KIT

- brake cylinder, Includes: Ref. 4, 5, 8, and 9

1шт.

13

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

8шт.

14

492-11038

LOCK WASHER,3/8"

8шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

16

177688C1

HANGER

- brake cylinder

4шт.

17

1327565C1

LEVER

- brake cylinder

2шт.

18

28607R1

HEADED PIN,3/8" x 4"

PIN - headed, 3/8 x 4 inch

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

2шт.

20

1321947C1

ROD

- brake pull

2шт.

21

129-125

NUT,1/2"-20, G5

2шт.

22

1321948C1

NUT

- brake pull rod

2шт.

24

1321946C1

CLEVIS

YOKE - brake operating rod

2шт.

25

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN - clevis, 7/16 x 1-3/16 inch

2шт.

26

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 5/8 inch

2шт.

27

184177C2

HOUSING

- wheel brake

2шт.

28

113-320

BOLT,Hex, 7/16" - 14 x 5-1/2", Gr 5

4шт.

29

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

30

113-346

BOLT,Hex, 7/16" - 14 x 5", Gr 5

- hex, 7/16 x 5 inch

6шт.

31

129-104

NUT,7/16"-14, G5

10шт.

32

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

- brake housing

2шт.

34

1963810C1

CLUTCH DISC

DISC - brake

3шт.

35

188878C1

DISC

- intermediate

1шт.

36

366182R92

BRAKE DISC

DISC - actuating, Includes: Ref. 37 - 41

1шт.

37

357113R2

LINK

- actuating

2шт.

38

118624

JAM NUT,Jam, 5/16"-24, G5

- hex, 5/16 inch NF

2шт.

39

A30898

STEP BOLT

STUD

2шт.

40

211-221

BALL,7/8" Dia

5шт.

41

619731C1

SPRING

- extension

3шт.

42

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

2шт.
