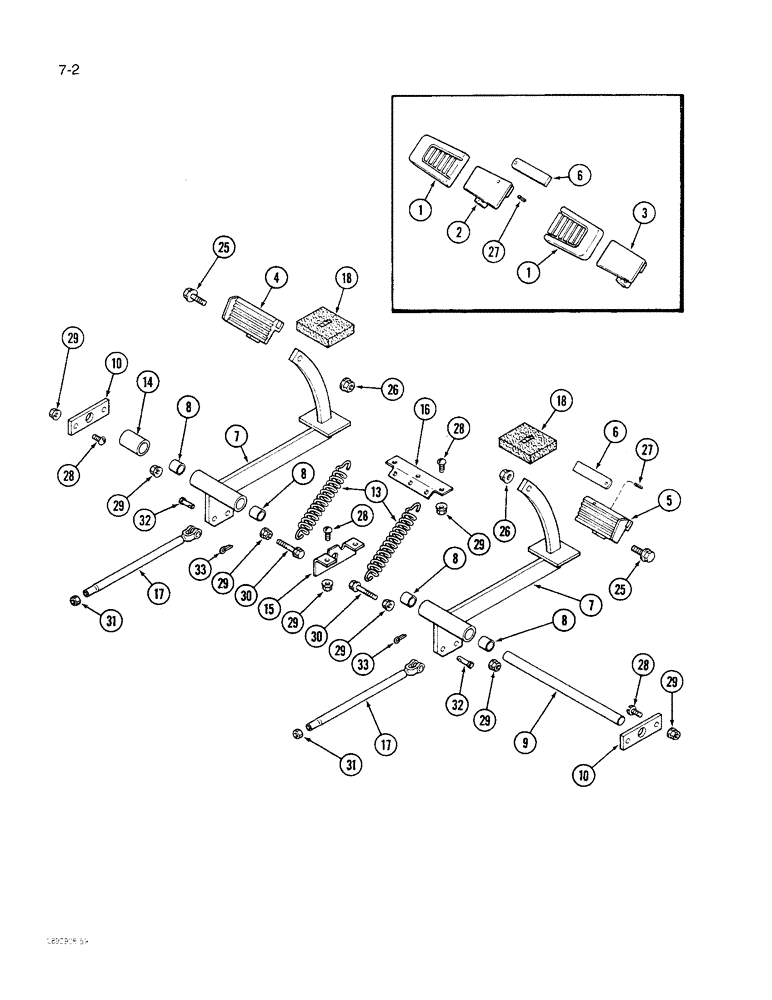

Запчасти Case IH 1640 (7-02) - MASTER BRAKE CONTROLS (5.1) - BRAKES

1

863426R1

PAD

- brake pedal (Used with Ref. 2 and 3)

2шт.

2

1321926C1

PEDAL

- brake, left (Used with Ref. 1)

1шт.

3

1321927C1

PEDAL

- brake, right (Used with Ref. 1)

1шт.

4

1979734C1

PEDAL

- brake, left

1шт.

5

1979733C1

PEDAL

- brake, right

1шт.

6

614251R1

BAR

- brake locking

1шт.

7

1321925C91

SUPPORT

ASSEMBLY - brake pedal, Includes: Ref. 8

2шт.

8

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- pedal support

2шт.

9

1280117C1

SHAFT

- support pivot

1шт.

10

1281794C1

PLATE

BAR - pivot shaft support

2шт.

13

398763R2

SPRING

- pedal return

2шт.

14

1280116C1

SPACER

- support pivot

1шт.

15

1321383C1

ANGLE

- pivot shaft support

1шт.

16

1327560C1

ANGLE

- spring hook

1шт.

17

1281882C1

ROD

LINK - brake

2шт.

18

1321935C1

SEAL

- pedal

2шт.

25

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex head lock, 3/8 NC x 1-1/4 inch

2шт.

25

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

BOLT - hex, 3/8 NC x 1-1/4 inch, black

2шт.

26

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

26

1327765C1

LOCK NUT

- hex flange lock, 3/8 inch NC, black

2шт.

27

19372R1

PIN,3.17mm OD x 22.23mm L, Coiled

1шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

9шт.

29

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

13шт.

30

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

31

30168R1

NUT,M10, Cl 10

- hex, M10, Grade 10

2шт.

32

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

33

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 3/4 inch

2шт.
