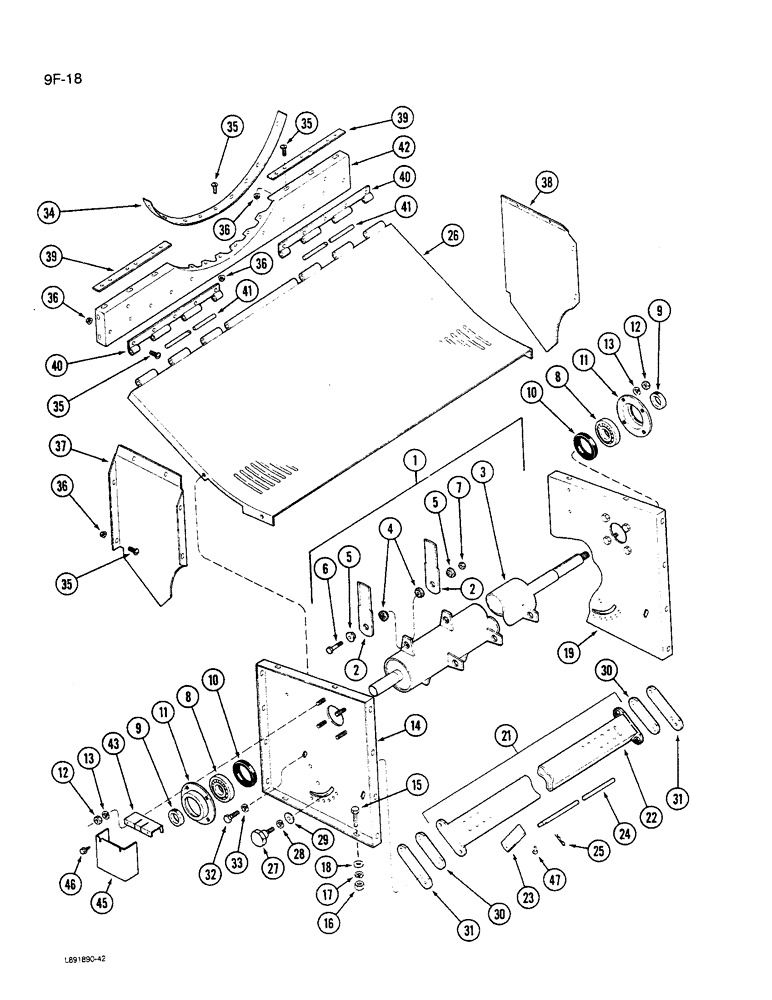

Запчасти Case IH 1640 (9F-18) - STRAW CHOPPER ROTOR AND CONCAVE, EXPORT COMBINE ONLY (19) - STRAW SPREADER & CHOPPER

1

1322237C91

ROTOR

ASSEMBLY - straw chopper, Includes: Ref. 2 - 7

1шт.

2

1322241C1

BLADE

- chopper

44шт.

3

NSS

NOT SOLD SEPARAT

ROTOR - chopper (Order 1322237C91)

1шт.

4

1322242C1

SPACER

- chopper blade

44шт.

5

1322243C1

BUSHING

PIVOT - chopper blade

44шт.

6

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

22шт.

7

905262R1

NUT,M10 x 1.5, Cl 10

NUT - hex, 10 mm Grade 10

22шт.

8

1322228C91

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

- straw chopper, bore

2шт.

9

1322251C91

COLLAR

COLLAR - bearing

2шт.

Part number 1322251C91, is collar assy. The bearing is part number is 96328C1.

1шт.

10

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

- bearing

2шт.

11

936130R1

FLANGE

- bearing

2шт.

12

30169R1

NUT,M12 x 1.75, Cl 10

- hex, 12 mm

8шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

14

1322244C1

COVER

SUPPORT - chopper, left

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

20шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

20шт.

17

492-11038

LOCK WASHER,3/8"

20шт.

18

25709R1

WASHER

- hardened flat, 13/32 x 13/16 x 3/32 inch

20шт.

19

1322245C1

SUPPORT

- chopper, right

1шт.

21

1322240C91

SUPPORT

- chopper concave, Includes: Ref. 22 - 25

1шт.

22

1322246C1

SUPPORT

- concave bar

1шт.

23

1322233C1

KNIFE

BLADE - chopper concave

43шт.

24

1322247C1

ROD

- stationary

1шт.

25

1322252C1

HAIR PIN COTTER

- quick attach

1шт.

26

1322238C1

PANEL

BOTTOM - chopper deflector

1шт.

27

1322232C1

BUTTON,Screw, M12 x 45mm

KNOB - adjusting

4шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

29

460908R1

WASHER

- flat, 17/32 x 1-1/2 x 7/64 inch

8шт.

30

1322248C1

BLOCK

SHIM - chopper bar

3шт.

31

1322249C1

LINK

ARM - control

2шт.

32

30042R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, 12 x 30 mm, Grade 10.9

4шт.

33

933966R1

LOCK WASHER,M12

WASHER - lock, 12 mm

4шт.

34

182898C1

SUPPORT

- cage filler rear (If equipped)

1шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

29шт.

36

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch

29шт.

37

182946C1

DEFLECTOR

- discharge left (If equipped)

1шт.

38

182947C1

DEFLECTOR

- discharge right (If equipped)

1шт.

39

182891C1

PLATE

BAR - bulkhead fillter (If equipped)

2шт.

40

182894C1

HINGE

- deflector bottom (If equipped)

1шт.

41

182977C1

ROD

- bottom hinge (If equipped)

1шт.

42

182929C1

SUPPORT

- rear

1шт.

43

181209C1

SUPPORT

- sensor

1шт.

45

181208C1

SUPPORT

- shaft

1шт.

46

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

2шт.

47

104236

RIVET,4.76mm OD x 15.88mm L

1шт.

1957329C1

BLOCK

SHIM - locking (Not Shown)

2шт.
