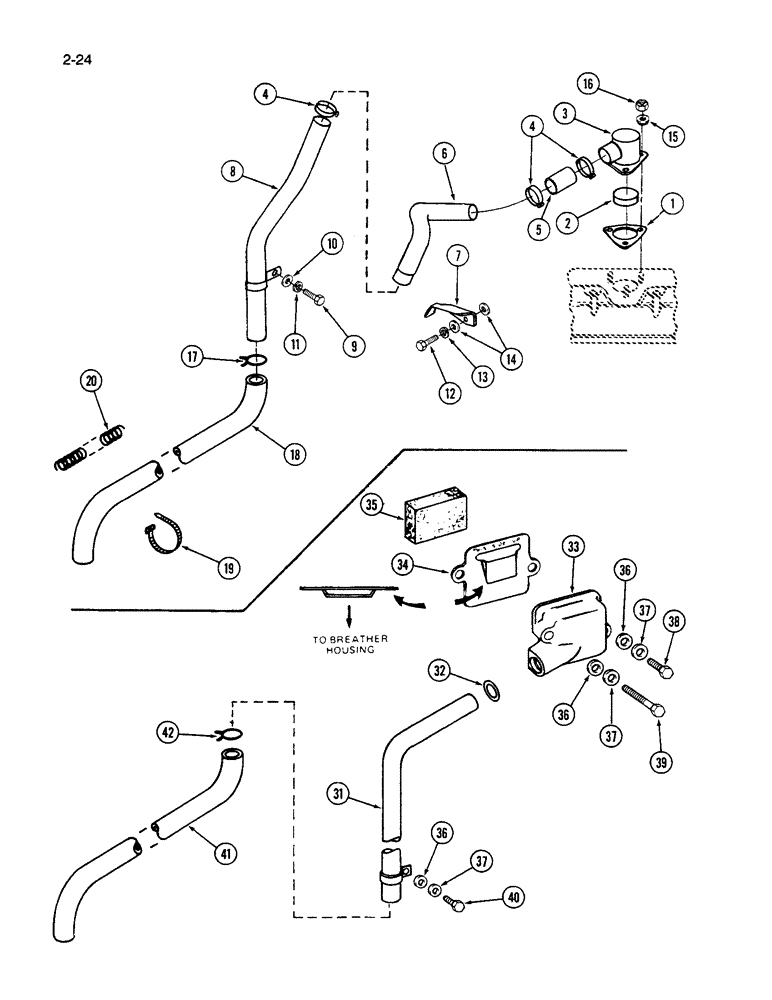

Запчасти Case IH 1640 (2-24) - ENGINE BREATHER HOUSING, D466 ENGINE, TOP MOUNTED (01) - ENGINE

1

673973C4

GASKET

- breather housing

1шт.

2

690233C1

FILTER, ELEMENT

ELEMENT - breather

1шт.

3

690354C1

BODY

HOUSING - breather

1шт.

4

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

3шт.

5

690460C1

HOSE

Breather Tube

1шт.

6

690457C1

HOSE

TUBE - upper breather

1шт.

Should be extended to include (U-Bend)

1шт.

7

690458C1

SUPPORT

- breather tube

1шт.

8

690594C1

BREATHER,18.31, 1.1" Length

TUBE - lower breather

1шт.

9

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, Grade 8

1шт.

10

27326R1

WASHER,.344" x 11/16" x .089", HDN

- flat, 1-1/32 x 1-1/16 x 1/16 inch

1шт.

11

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Replaced with 192-20, which subs to 492-11031

1шт.

12

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- hardened, 3/8 inch

2шт.

15

691644C1

RUBBER WASHER

- rubber bonded, 5/16 inch

3шт.

16

25077R1

LOCK NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

3шт.

17

610320C1

CLAMP

- spring wire hose, No. 30 Type E

1шт.

18

183616C1

HOSE,38.1 mm ID x 1168.40 mm, SAE 20R1

- crankcase breather, 46 inch

1шт.

19

306132C1

CABLE TIE,14.5" L

STRAP - retaining, 14 inch long

2шт.

20

1301436C1

SPRING

- breather hose internal support

1шт.

31

680606C1

TUBE,8.97, 1.44" Length

ASSEMBLY - breather, side mounted

1шт.

32

673185C1

O-RING

- 1 x 1-1/4 x 1/8 inch, side mounted

1шт.

33

675409C1

BODY

HOUSING - breather, side mounted

1шт.

34

677711C1

BAFFLE

- breather, side mounted

1шт.

35

675494C2

FILTER, ELEMENT

ELEMENT - breather, side mounted

1шт.

36

27326R1

WASHER,.344" x 11/16" x .089", HDN

- hardened, side mounted

3шт.

37

25708R1

WASHER

- 11/32 x 11/16 x 3/64 inch, side mounted

3шт.

38

25654R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8

- hex, 5/16 NC x 1-3/8 inch, Grade 8, side mounted

1шт.

39

25234R1

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 8

- hex, 5/16 NC x 2-1/4 inch, Grade 8, side mounted

1шт.

40

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, Grade 8, side mounted

1шт.

41

195898C1

HOSE

- crankcase breather, 46 inch, side mounted

1шт.

42

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

retaining, side mounted #24, 1.06/2.00 Type F Worm

1шт.
